High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement
High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement
High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement
High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement
High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement
High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement
High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement
High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement

High Accuracy Flexible 6.8mV Current Sensor for Precise UPS Detection High Sensitivity Uninterruptible Power Supply Measurement

FOB Reference Price: Get Latest Price
≥1 Pieces
US $30
≥100 Pieces
US $20
≥1000 Pieces
US $16
≥5000 Pieces
US $13
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Mounting Type:
Clamp on
Description:
Rogowski coil, Rogowski coil
Model Number:
Y-FCT
Place of Origin:
Shanghai, China
Brand Name:
MEATROL
Theory:
Faraday electromagnetic induction
Output:
Analog voltage signal
Current Range:
10A-10000A
Accuracy:
Calibrated <0.5% (central position, 25℃)
Bandwidth:
1Hz to 100kHz(-3dB)
Operating temperature:
-30℃ to 80℃
Position Error:
±1% maximum
Couplings:
PC 94 V-O rated
Material:
Flame retardant 94 V-0 rated
Shielded:
100% coil Two layers shielded, 100% output cable
Certificate:
ISO9001, CE, ROHS2.0

Quick Details

Usage:
current measurement
Series:
Rogowski coil
Features:
Rogowski coil
Mounting Type:
Clamp on
Description:
Rogowski coil, Rogowski coil
Model Number:
Y-FCT
Place of Origin:
Shanghai, China
Brand Name:
MEATROL
Theory:
Faraday electromagnetic induction
Output:
Analog voltage signal
Current Range:
10A-10000A
Accuracy:
Calibrated <0.5% (central position, 25℃)
Bandwidth:
1Hz to 100kHz(-3dB)
Operating temperature:
-30℃ to 80℃
Position Error:
±1% maximum
Couplings:
PC 94 V-O rated
Material:
Flame retardant 94 V-0 rated
Shielded:
100% coil Two layers shielded, 100% output cable
Certificate:
ISO9001, CE, ROHS2.0

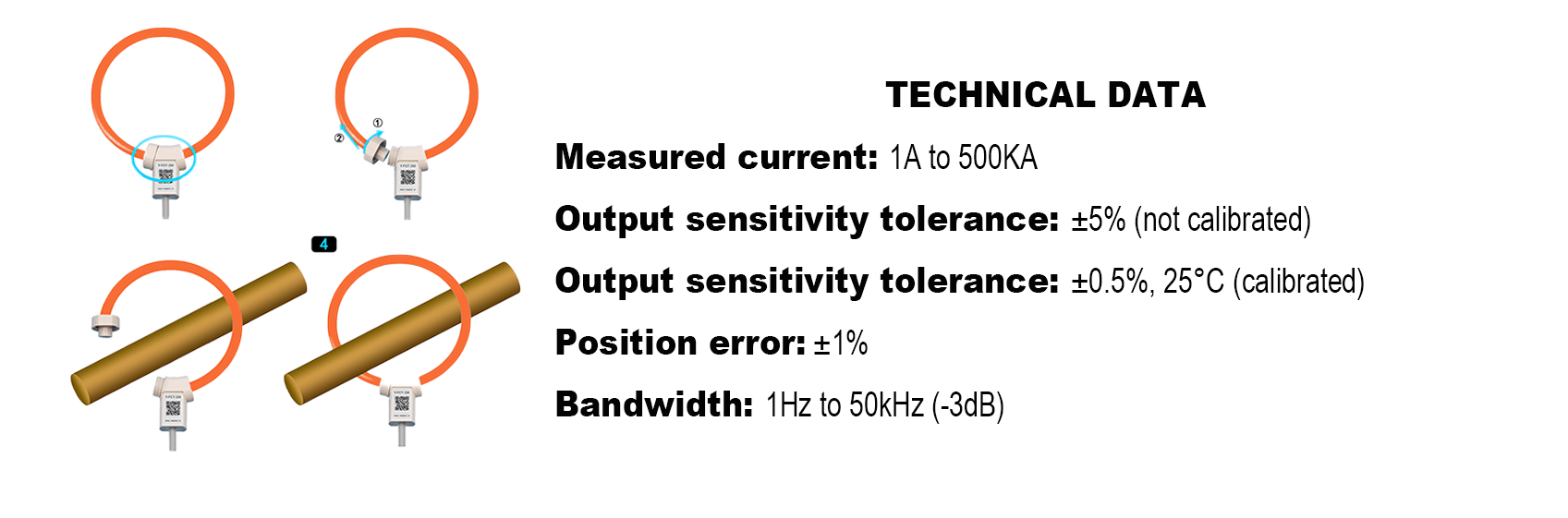

Product Description
Item
Value
Model Number
Y-FCT-200      Y-FCT-350      Y-FCT-510     Y-FCT-800
Type
Flexible Current transformer, Current sensor, Rogowski coil
Brand Name
MEATROL
Usage
Detect and measure the electric current
Output
85mV/kA@50Hz       50mV/kA@50Hz      100mV/kA@50Hz
Description
Y-FCT 8 Flexible Rogowski coil
Read Accuracy
Calibrated <0.5% (central position, 25℃)
Uncalibrated < 5% tolerance (central position, 25℃)
Maximum current measurable
100kA
Coil Resistance
from 100 to 250 Ω
Coil Section
8mm
Lead length
2meter
Temperature
Uncalibrated 200ppm/C
Calibrated 300ppm/C
Position Error
±1% maximum
Output on 0A （zero drift）
≤0.05mV
Phase error
≤0.5°
Linearity
±0.2% of reading
Bandwidth
1Hz to 100kHz(-3dB)
Operating temperature
-30℃ to 80℃
Storage temperature
-40℃ to 90℃
Other requirements, please contact us to OEM.
MODEL
Y-FCT-200
Y-FCT-350
Y-FCT-510
Y-FCT-800
Coil length
200mm
350mm
510mm
800mm
Window size
50mm
100mm
150mm
240mm
Reference
Rated current
600A
1000A
3000A
6000A
Coil Resistance
140 (+/-10) Ω
210 (+/-10) Ω
290 (+/-10) Ω
430 (+/-10) Ω
Weight
140g
150g
160g
180g
Feature
Advantage
1. Calibrated to 0.5%
2. 8mm section easy to install
3. Two layers shielded
4. Lower zero drift down to 0.05 mV

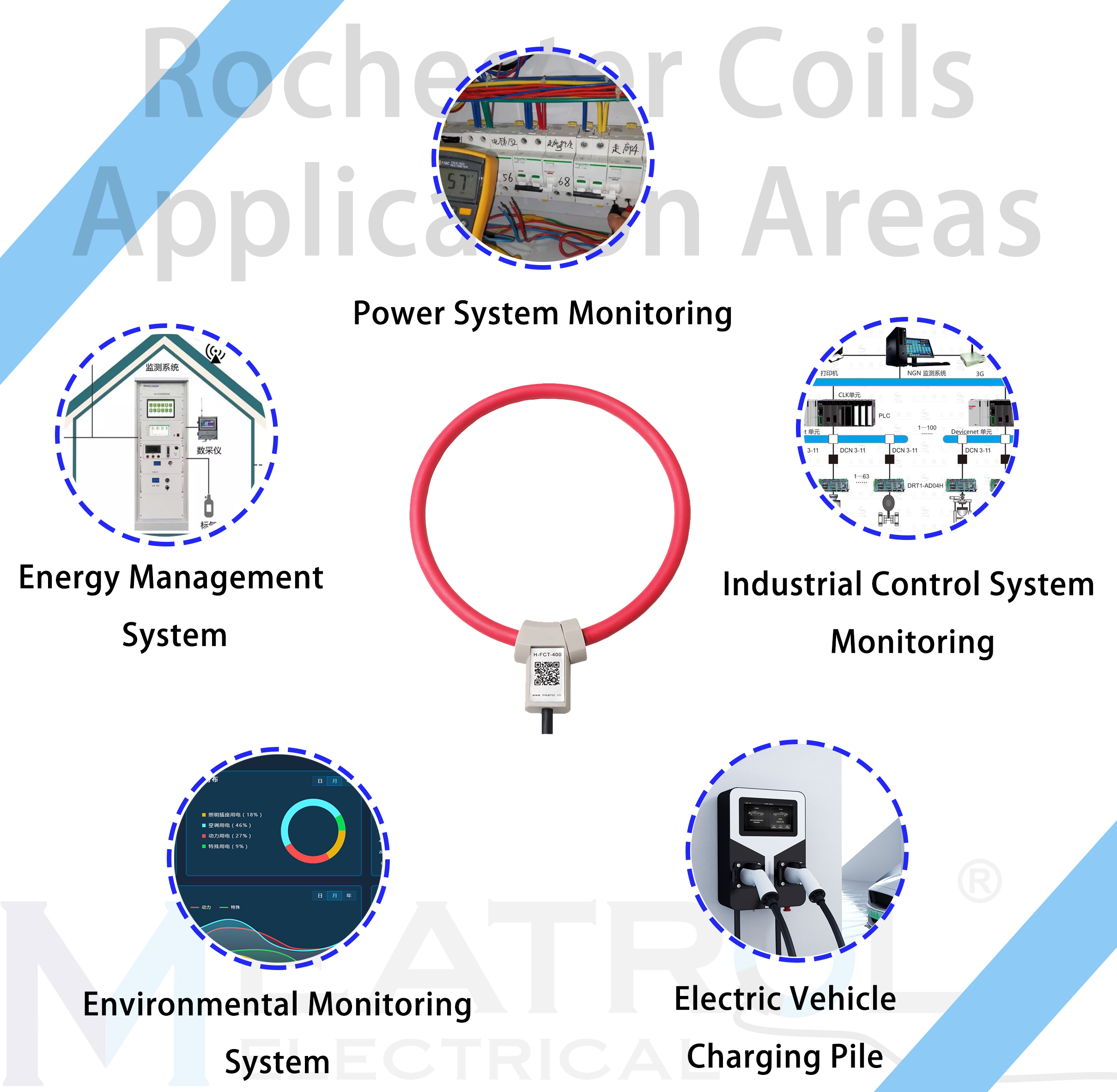

Applications
1. Measuring devices, lab instrumentation
2. Power monitoring & control systems
3. DC ripple measurement
4.Harmonics and transients monitoring
5. Power meter, Power analyzer sensor
More applications and Rogowski coils solutions :
Special Rogowski coil+Integrator for Fault Indicator
Rogowski coil NZ special for high temperature Electric Furnace
Rogowski Coil Sensor special for Lightning Current
Ø8 High Frequency: H-FCT,
Ø12 High Voltage 36kV: D-SRC ...

Application cases in high frequency pulse welding machine: current up to 1500kA
Detection coil applicated to Power generation equipment of China's second largest hydroelectric station: current up to 500kA
Rogowski coil application in Draught Fan, lightning current up to 300kA
