Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SMARTS
-
Model Number:
-
SMT-012-060VW
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
5A
-
Certification:
-
ETL cETL CE ROHS
-
Warranty:
-
2 Years
-
Efficiency:
-
83%
-
Size:
-
190*48*34mm
-
weight:
-
550g
-
input voltage:
-
100-265vac
-
outer case:
-
Aluminum housing
-
working mode:
-
constant voltage
-
eenergy transfer:
-
ac to dc
-
keyword:
-
waterproof 60w power supply
Quick Details
-
Output Power:
-
60w
-
Input Voltage:
-
100-265v
-
Output Voltage:
-
12V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SMARTS
-
Model Number:
-
SMT-012-060VW
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
5A
-
Certification:
-
ETL cETL CE ROHS
-
Warranty:
-
2 Years
-
Efficiency:
-
83%
-
Size:
-
190*48*34mm
-
weight:
-
550g
-
input voltage:
-
100-265vac
-
outer case:
-
Aluminum housing
-
working mode:
-
constant voltage
-
eenergy transfer:
-
ac to dc
-
keyword:
-
waterproof 60w power supply

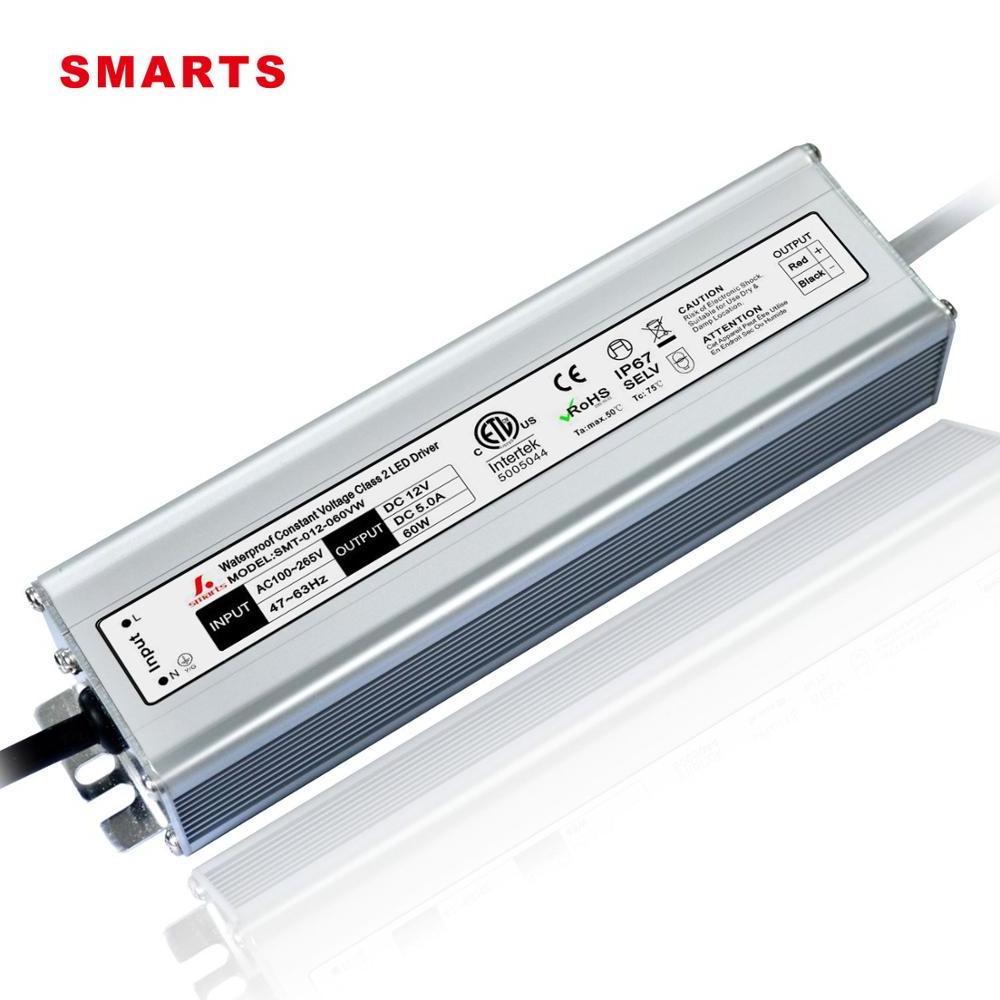

aluminum case 12v outdoor waterproof 60w power supply for christmas led lights
Product Description
| MODEL | SMT-012-060VW | SMT-024-060VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | |
| RATED CURRENT | 5.0A | 2.5A | ||
| CURRENT RANGE | 0~5.0A | 0~2.5A | ||
| RATED POWER | 60W | 60W | ||
| RIPPLE&NOISE(max) | 1.2V | 1.2V | ||
| voltage TOLERANCE | 12V±5% | 24V±5% | ||
| SETUP RISE TIME | 80ms/110,220VAC | 80ms/110,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110,220VAC | 60ms/110,220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265Vac | 100~265Vac | |
| FREQUENCY RANGE | 50~60Hz | 50~60Hz | ||
| POWER FACTOR(Typ.) | ||||
| EFFICIENCY(Typ.) | >84% | >84% | ||
| AC CURRENT(Typ.) | 0.5A/110V,220VAC | 0.5A/110V,220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 30A/110,220VAC | |||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | ||
| Overload | overload protected@145-160% above peak rating | |||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | |||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | |||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | |||
| SAFETY&EMC | SAFETY STANDARDS | CE Mark(LVD),IP67 | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | |||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | |||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | ||||
| NOTE | ||||
