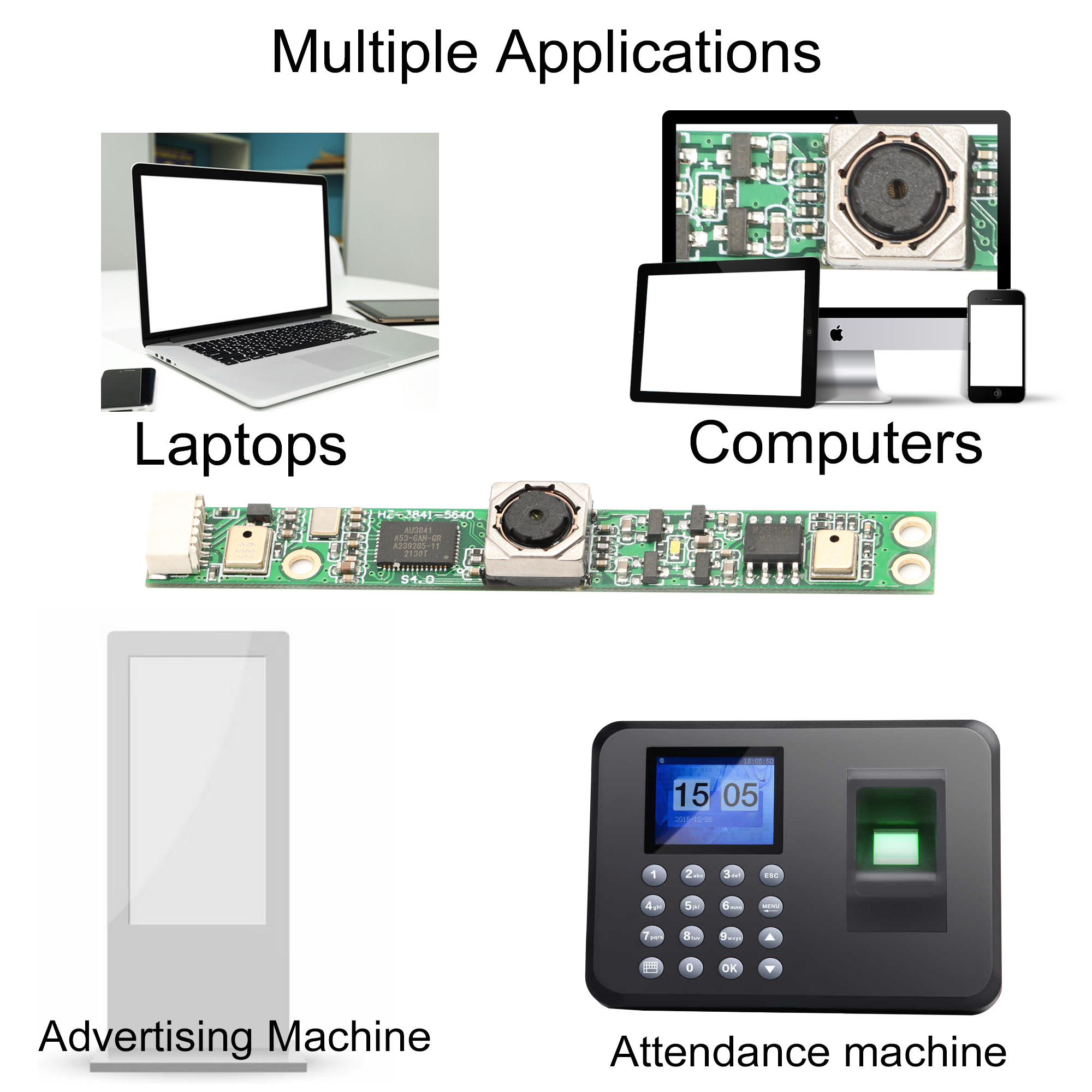

All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine
All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine
All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine
All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine
All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine
All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine
All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine
All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine

All-in-one computer special, with dual mic HD UVC OV5640 CMOS Usb Laptop Camera Module for notebook advertising one machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $19
≥500 Pieces
US $18.58
≥1000 Pieces
US $16.99
≥5000 Pieces
US $12
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Mounting Type:
USB UVC OTG
Description:
UVC OV5640 CMOS
Module No.:
HZ-3840-OV5640 S1.0
Module Size:
30x25mm
Object distance:
5CM-100M
Focus:
Autofocus
photosensitive film:
OV5640(1/4")
Interface:
USB 2.0
Max. Resolution:
2592(H) *1944(V)
output image format:
MJPEG/YUV2(YUYV)
FOV:
D=65°

Quick Details

Place of Origin:
CHAIN
Brand Name:
HZ /OEM
Model Number:
OV5640
Mounting Type:
USB UVC OTG
Description:
UVC OV5640 CMOS
Module No.:
HZ-3840-OV5640 S1.0
Module Size:
30x25mm
Object distance:
5CM-100M
Focus:
Autofocus
photosensitive film:
OV5640(1/4")
Interface:
USB 2.0
Max. Resolution:
2592(H) *1944(V)
output image format:
MJPEG/YUV2(YUYV)
FOV:
D=65°
Features

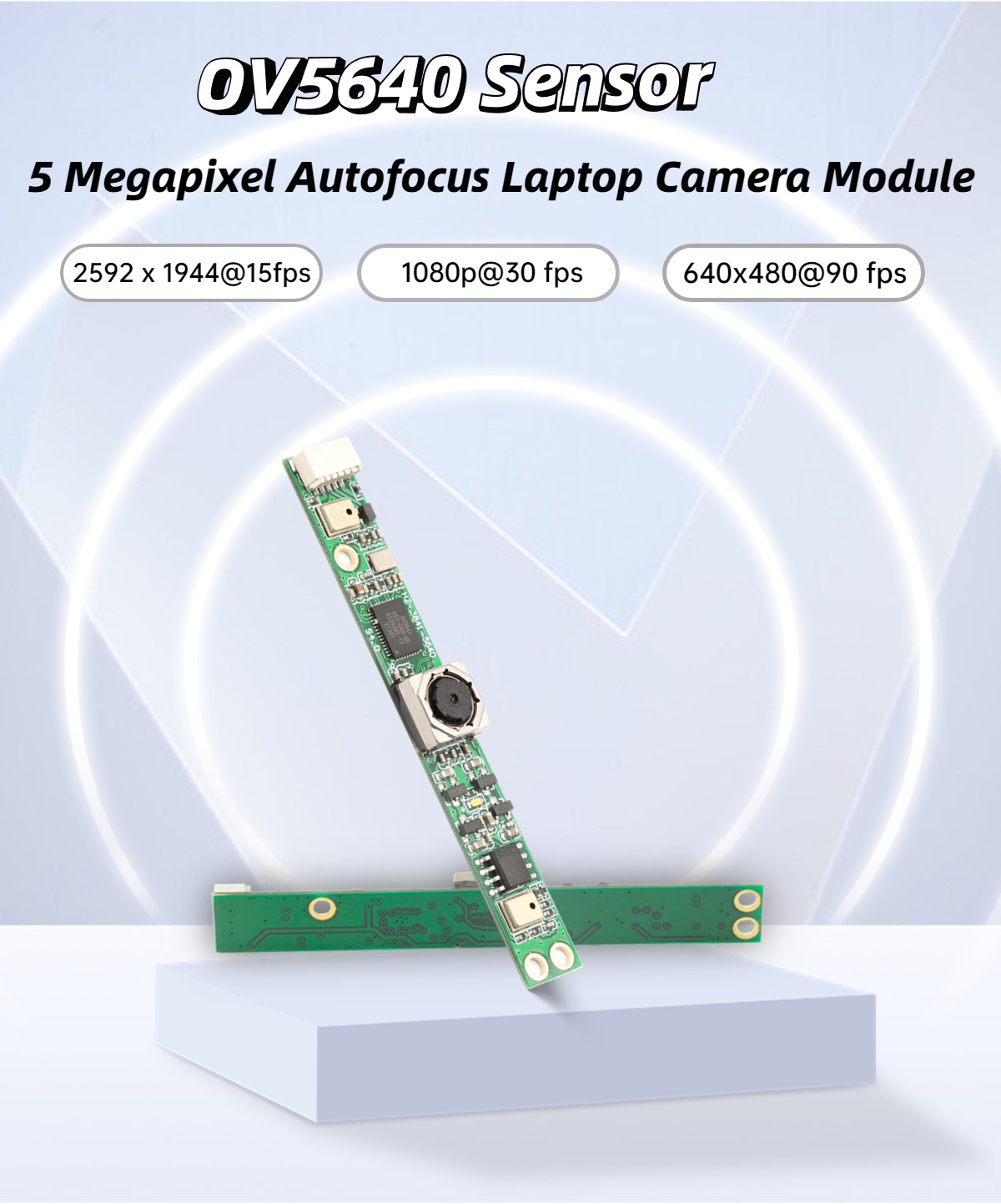

1)5 Megapixel USB Camera Module
2)Autofocus USB Camera
3)With 1/4" OV5640 Sensor
4)Resolution: 2592x1944
5)FOV:65°
6)UVC Plug and
Play, free driver.
7)Auto focus USB Camera, Also can disable autofocus.
8) Support customization
Product Paramenters
Product number
HZ-3841-OV5640 S1.0
photosensitive film
OV5640(1/4”)
Max. Resolution
2592(H) *1944(V)
Sensitivity
600MV/LUX-SEC
pixel size
1.4MM X1.4MM
IMAGE ARER
3673.6MMX2738.4MM
output image format
MJPEG/YUV2(YUYV)
Supported Resolutions and Frame Rates
2592X1944@ 15FPS MJPEG/2048X1536@15FPSMJPEG
1600X1200@15FPS MJPEG/1920X108@15FPS MJPEG
1280X1024@15FPS MTPEG/1280X72@30FPS MIPEG
1024 X768@30FPS MJPEG/800X600@30FPS MJPEG
640X480@30FPS MJPEG/320X24@3FPS MJPEG
Camera Board Assembly Technology
SMT(ROSH)
Object distance
5CM-100M
center sharpness
600LW/PH(CENTER)
Signal to noise ratio
34DB
Dynamic Range
72.5DB
Sensitivity
0.65V/LUX-SEC@550NM
Minimum illumination
0.5LUX
shutter type
ELECTRONIC ROLLING SHUTTER/ FRAME EXPOSURE
Interface Type
USB2.0 HIGH SPEED
Automatic Exposure Control AEC
support
Auto White Balance AEB
support
Automatic Gain Control AGC
support
Adjustable parameters
Brightness /Contrast /Color Saturation /Hue /Sharpness /Gamma /White Balance /Exposure
Lens Specifications
SIZE:1/4,IRIS:F2.8FOCUS:3.2MMFOV:65DEGREE
RELATIVE ILLUMINATION(SENSOR):70%
IR filter :650±10NM
Light board power supply interface
support 2P-2.0MM socket
Power supply and interface
USB BUS POWER 4P-2.0MM socket
Voltage
DC5V
current
150MW(VGA):200MW(QSXGA)
size
32MM x25MM
storage temperature
-20°CT70°
Operating temperature
0°C TO60°c
USB cable
1M(2M/3M/5M support choice)
Details Images
Feature

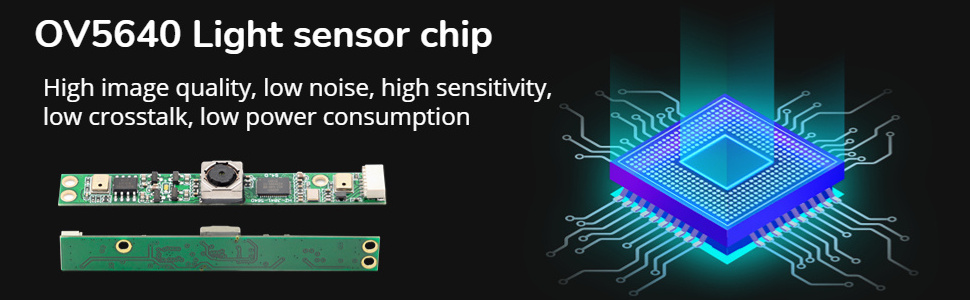

·OmniVision Sensor OV5640 5mp backside illumination architecture to deliver excellent pixel performance and best-in-class low-light sensitivity
·Focusing method is auto focus · There's microphone on camera module, if you don't need it for your project, we can also remove it.
·Different FOV lens are available, please contact us to make it happen.
·The plain back PCB board could be used for double-sided adhesive tape or screw in
