Quick Details
-
Brand Name:
-
Owon
-
Model Number:
-

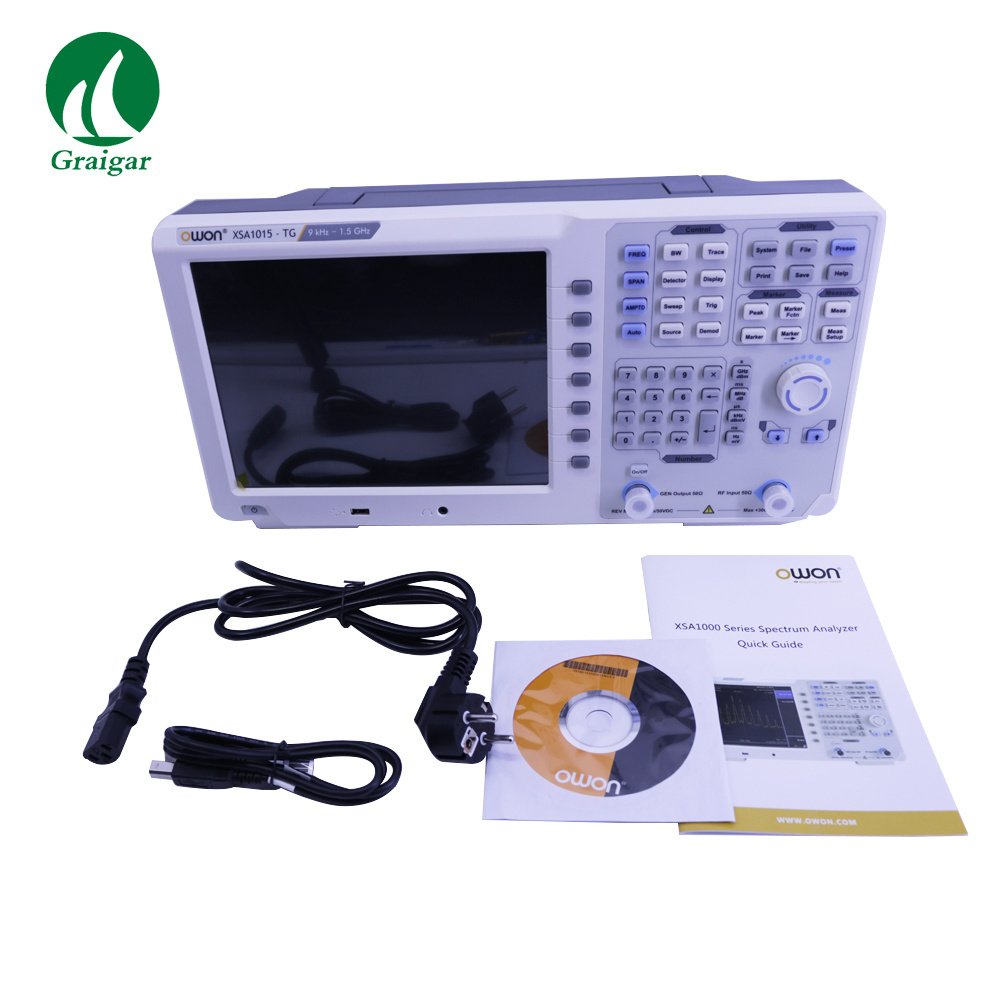

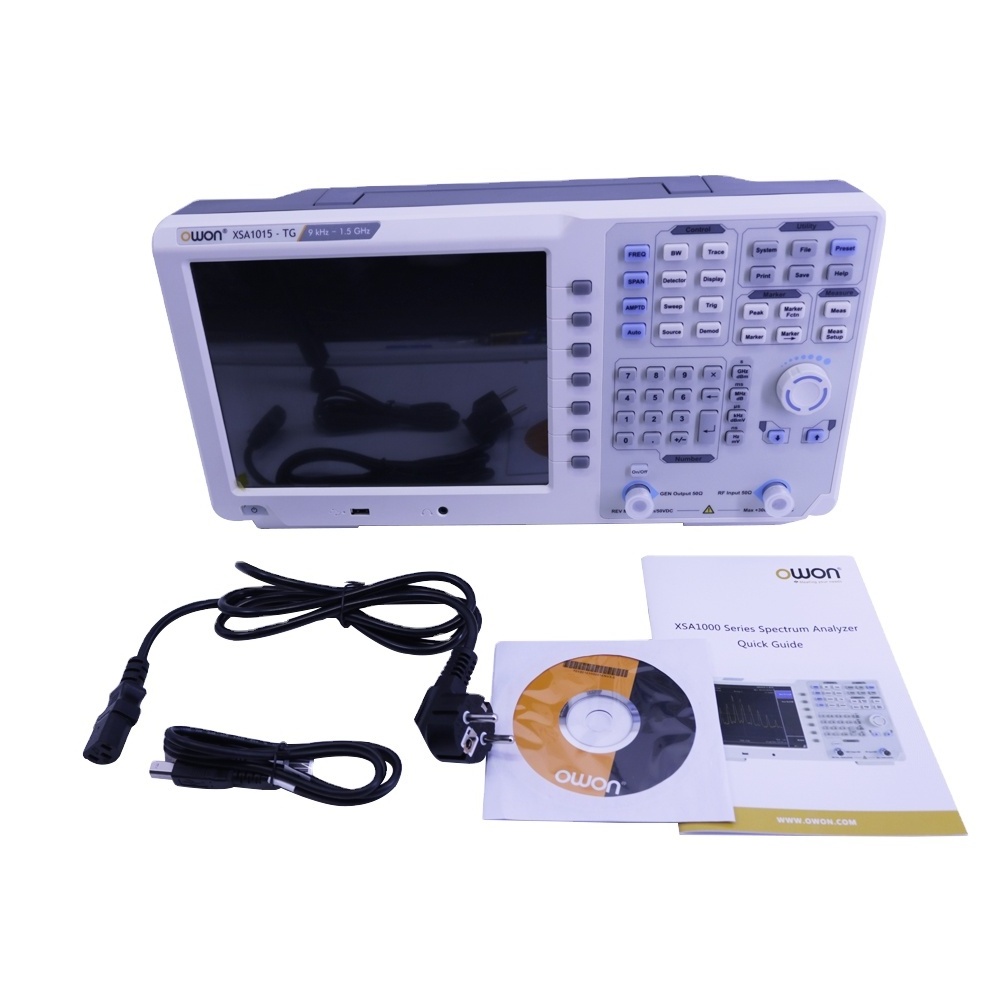

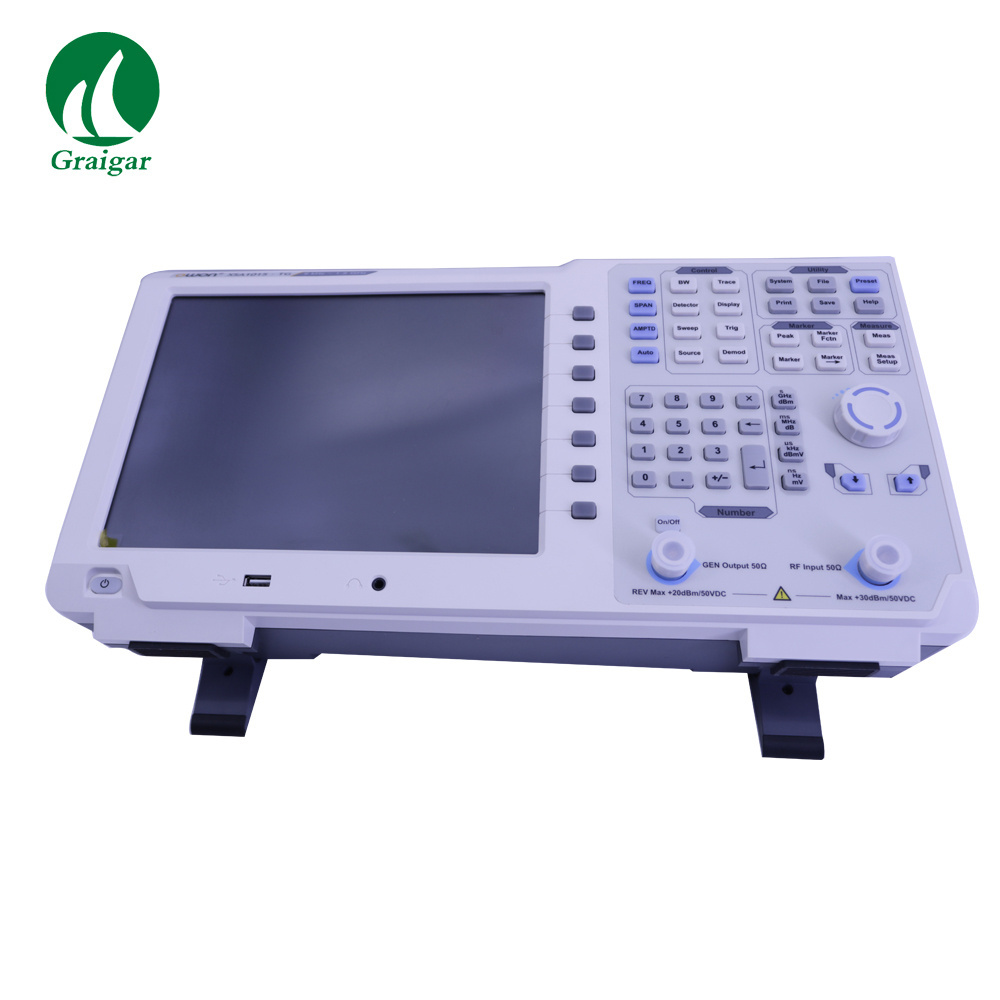

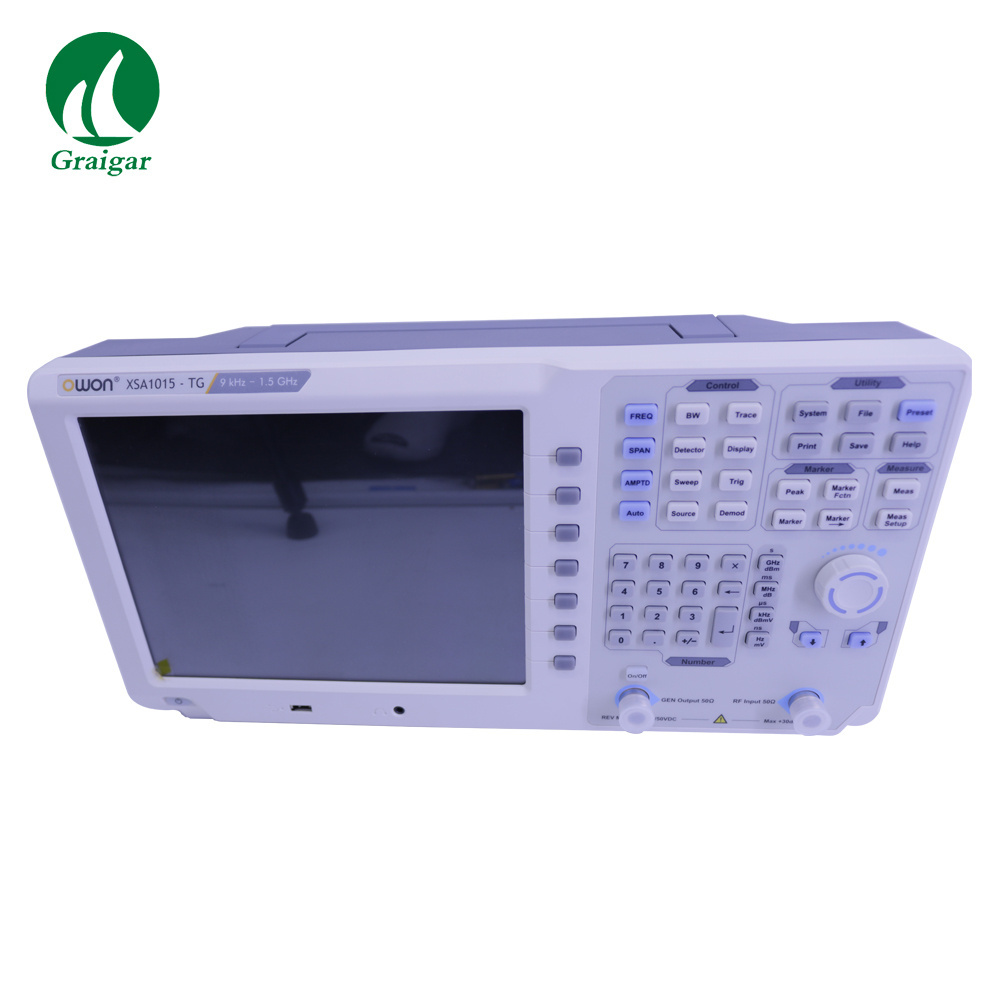

XSA1015-TG
-
Material:
-
plastic and metal
-
Size:
-
\
-
Battery:
-
\
-
Power:
-
\
Quick Details
-
Type:
-
Spectrum Analyzer
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Owon
-
Model Number:
-
XSA1015-TG
-
Material:
-
plastic and metal
-
Size:
-
\
-
Battery:
-
\
-
Power:
-
\
| Model | XSA1015 ( TG ) | XSA1032(TG) | XSA1036 ( TG ) | XSA1075(TG) |
| Frequency | ||||
| Range | 9kHz-1.5 GHz | 9kHz-3.2 GHz | 9kHz-3.6 GHz | 9kHz-7.5 GHz |
| Resolution | 1Hz | |||
| Frequency span | ||||
| Range | 0 Hz,100 Hz to maximum frequency of device | |||
| Accuracy | ± span /(swept points -1) | |||
| Internal reference | ||||
| Reference frequency | 10.000000 MHz | |||
| Reference frequency accuracy | ±[(days from last calibrate × freq aging rate)+ temperature stability + initial accuracy ] | |||
| Temperature stability | <2.5ppm (15℃ to 35℃) | <1ppm(15℃ to 35℃) | ||
| Aging rate | <1ppm/year | |||
| Readout | ||||
| Marker frequency resolution | span/(the number of sweep points -1) | |||
| Uncertainty | ±(freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution) | |||
| Frequency counter | ||||
| Resolution | 1 Hz,10 Hz,100 Hz,1 kHz | |||
| Accuracy | ±(marker freq × freq reference uncertainty + counter resolution) | |||
| Bandwidth | ||||
| Resolution bandwidth (-3 dB) | 10Hz to 500kHz(in 1 to 10 sequence), 1MHz,3MHz | |||
| Resolution filter shape factor | <5:1 nominal(Digital implement, similar to Gauss Pattern) | |||
| Accuracy | <5% nominal | |||
| Video bandwidth (-3 dB) | 10Hz to 3MHz | |||
| Amplitude Specification | |||||
|---|---|---|---|---|---|
| Amplitude and electric level | |||||
| Amplitude measurement range | DANL to +20 dBm, close the preamplifier | ||||
| Reference electric level | -80 dBm to +30 dBm,0.01dBm steps | ||||
| Preamplifier | 20 dB,nominal | ||||
| Input attenuator range | 0~40 dB,1 dB steps | 0~50 dB,1 dB steps | |||
| Max input DC voltage | 50 VDC | ||||
| Max continuous power | +30dBm,average continuous power | ||||
| Displayed average noise level(DANL) Input attenuation 0 dB,1Hz resolution bandwidth | |||||
| Preamp off | 1 MHz~10 MHz -140dBm(nominated) | ||||
| 10 MHz~1GHz -140dBm(nominated) | |||||
|
XSA1015TG:1GHz~1.5 GHz -138 dBm( nominated )
XSA1032TG:1GHz~3.2GHz -138 dBm( nominated ) XSA1036TG:1GHz~3.6 GHz -138 dBm( nominated ) XSA1075TG:1GHz~3.6GHz -138dBm( nominated );4GHz~5GHz,-133dBm( nominated ) 5GHz~6GHz,-128dBm( nominated );6GHz~7GHz-123dBm( nominated ); 7GHz~7.5GHz,-118dBm( nominated ) |
|||||
| Preamp on | 1 MHz~10 MHz -160dBm(nominated) | ||||
| 10 MHz~1GHz -160dBm(nominated) | |||||
|
XSA1015TG: 1GHz~1.5 GHz -158 dBm( nominated )
XSA1032TG: 1GHz~3.2 GHz -158 dBm( nominated ) XSA1036TG: 1GHz~3.6 GHz -158 dBm( nominated ) XSA1075TG: 1GHz~4GHz -158dBm( nominated );4GHz~5GHz -153dBm( nominated ) 5GHz~6GHz -148dBm( nominated );6GHz~7GHz -143dBm( nominated ) 7GHz~7.5GHz -138dBm( nominated ) |
|||||
| Phase noise | 20 ℃ ~30 ℃,fc=1 GHz | ||||
| Phase noise | <-82 dBc/Hz @10 kHz offset | <-98 dBc/Hz @10 kHz offset | |||
| <-100 dBc/Hz @100 kHz offset | |||||
| <-110 dBc/Hz @1 MHz offset | |||||
| Level display range | |||||
| Log scale coordinate | 1dB ~255dB | ||||
| Linear scale coordinate | 0 to reference level | ||||
| level unit | dBm, dBuW, dBpW, dBmV, dBuV, W,V | ||||
| Points | 201~1001 | ||||
| Number of traces | 5 | ||||
| Detectors | Positive-peak, negative-peak, sample, normal, RMS | ||||
| Trace functions | Clear write, Max Hold, Min Hold, View, Blank, Average | ||||
| Frequency response | |||||
| 20℃ ~30℃,30%~70% relative humidity, 20 dB input attenuation, reference 50 MHz | |||||
| Preamp off | ±0.8 dB; | ||||
| Preamp on | ±0.9 dB; | ||||
| Accuracy | |||||
| Input Attenuation Switching Uncertainty |
20℃ ~30℃, fc=50 MHz,Preamplifier Off, 20dB RF attenuation,input signal 1~40 dB
±0.5 dB |
||||
| Absolute Amplitude Uncertainty |
20℃ ~30℃, fc=50 MHz,RBW=1 kHz,VBW=1 kHz,peak detector, 20 dB RF attenuation,
Preamplifier Off ±0.4 dB,input signal= -20dBm Preamplifier On ±0.5 dB, input signal= -40dBm |
||||
| Uncertainty | input signal range 0dbm~-50dbm | ||||
| ±1.5 dB | |||||
| VSWR | input 10 dB RF attenuation,1 MHz~1.5GHz | input 20 dB,1 MHz~7.5GHz | |||
| <1.5,nominal | |||||
| Distortion and spurious response | |||||
| Second harmonic distortion | fc ≥ 50 MHz,Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 ℃ to 30 ℃ | ||||
| -65dbc | |||||
| Third-order intermodulation | fc ≥ 50 MHz | ||||
|
+2 dBm (NSA1015/NSA1032/NSA1036)
+10dBm(NSA1075) |
|||||
| 1 dB Gain Compression | fc ≥ 50 MHz, 0 dB RF attenuation,Preamp off , 20 ℃ to 30 ℃ | ||||
| +2 dBm, nominal | |||||
| Residual response | connect 50 Ω load at input port,0 dB input attenuation,20 ℃ to 30 ℃ | ||||
| <-85dBm,nominated | |||||
| Input related spurious | -30 dBm signal at input mixer,20 ℃ to 30 ℃ | ||||
| <-60 dBc | |||||
| Sweep time and triggering | |||||
| Span range |
100Hz≤SPAN≤3GHz 10ms to 3000s
zero sweep width 1ms to 3000s |
||||
| Mode | Continue, single | ||||
| Trigger | Free run, video | ||||
| Tracking generator | |||||
| Output frequency range | 100 kHz~3.2 GHz |
100 kHz~3.6 GHz(Tracking generator)
35 MHz~3.6 GHz(Tracking generator) |
100 kHz~7.5 GHz(Tracking generator) | ||
| Output power level range | -40 dBm~0 dBm , | ||||
| Output power level resolution | 1dB | ||||
| Output flatness | +/-3 dB | ||||
| Maximum safe reverse level | Average total power:+30 dBm,DC : ±50 VDC | ||||
| Inputs and Outputs | |||||
| Front panel RF input connector | 50 Ω,N-type female | ||||
| Front panel track generator output | 50 Ω,N-type female | ||||
| 10 M reference input | 50 Ω,N-type female | ||||
| Communication port | USB HOST, USB DEVICE, LAN, earphone port, REF and VGA | ||||
| General techincal specification | |||||
| Display | TFT LCD,10.4 inches | ||||
| Weight (without package) | About 5 kg | ||||
| Dimension (W × H × D) | 421 × 221 × 115 (mm) | ||||
| Working temperature | 0~40 ℃ | ||||
| Storage temperature | -20 °C to +60 °C | ||||
| Power | 100V~240V 50/60Hz | ||||
