Quick Details
-
Products Status:
-
Stock
-
Color:
-
Black
-
CPU:
-
Intel Core i5-5250U Processor 3M Cache, up to 2.70 GHz
-
Size:
-
187*111*50mm(L*H*W) ( Reference )
-
Power Consumption:
-
15W
-
Main Ports:
-
4X LAN ,HD Video,,2 X USB2.0,2 X USB3.0,1X COM
-
Memory Capacity:
-
Barebone ,NO RAM
Quick Details
-
Screen Size:
-
No Monitor
-
Processor Main Frequency:
-
1.6GHz
-
Place of Origin:
-
Guangdong, China
-
Products Status:
-
Stock
-
Color:
-
Black
-
CPU:
-
Intel Core i5-5250U Processor 3M Cache, up to 2.70 GHz
-
Size:
-
187*111*50mm(L*H*W) ( Reference )
-
Power Consumption:
-
15W
-
Main Ports:
-
4X LAN ,HD Video,,2 X USB2.0,2 X USB3.0,1X COM
-
Memory Capacity:
-
Barebone ,NO RAM
Product Description
|
Dimension
|
187*111*50mm(L*H*W) ( Reference )
|
|
Packaging dimension:
|
270*230*90mm
|
|
Weight
|
2Kg ( Reference )
|
|
Power Consumption
|
TDP 15W
|
|
Onboard CPU
|
Intel® Core™ i5-5250U Processor
3M Cache, up to 2.70 GHz |
|
Memory
|
Support DDR3L 1333/1600 MHz,1.35V
1 x DDR3 DIMM Memory Slot Max. Support up to 8GB Memory |
|
Hard Disk
|
- support SSD ( MSATA / SATA)
- support HDD (2.5 inch SATA HDD ) |
|
Onboard VGA
|
Intel® HD Graphics 6000
|
|
Onboard LAN
|
4 x Intel I211-AT- 10/100/1000 Controller
|
|
Audio Solution
|
Realtek ALC662 6-Channel HD Audio
|
|

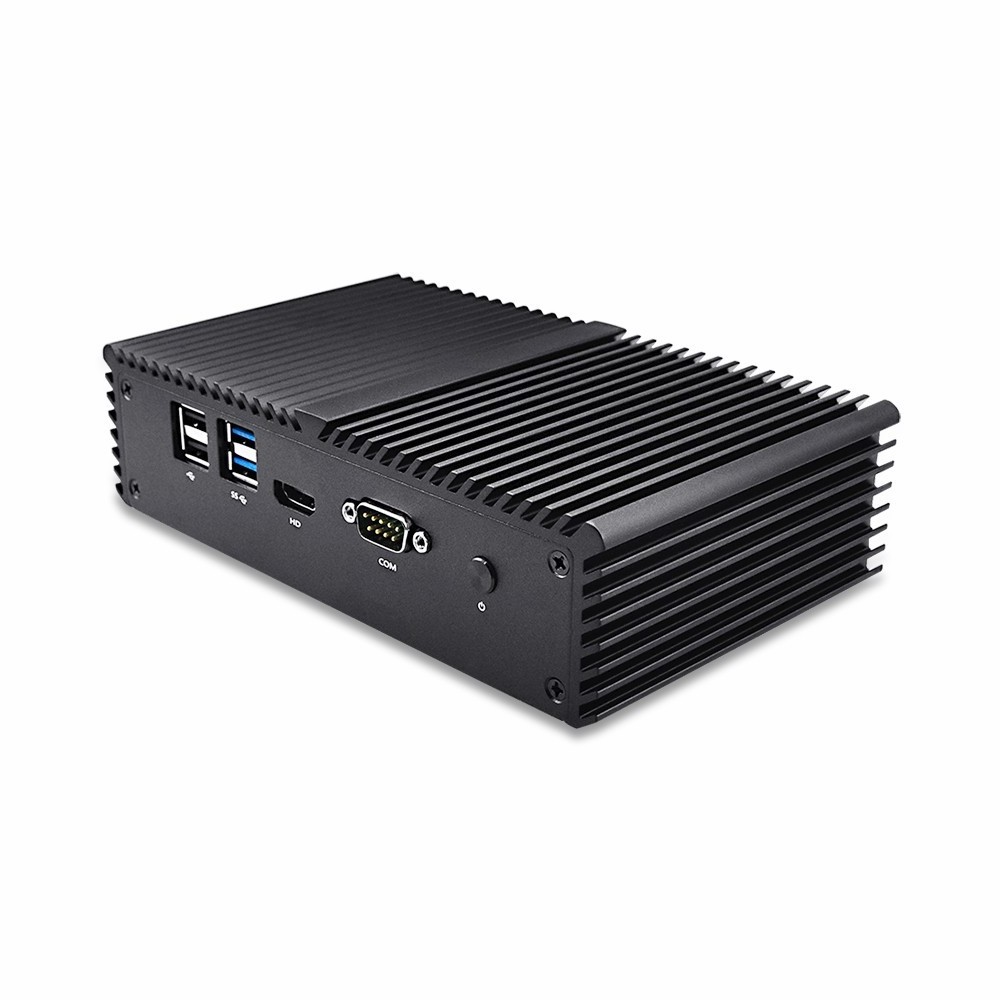

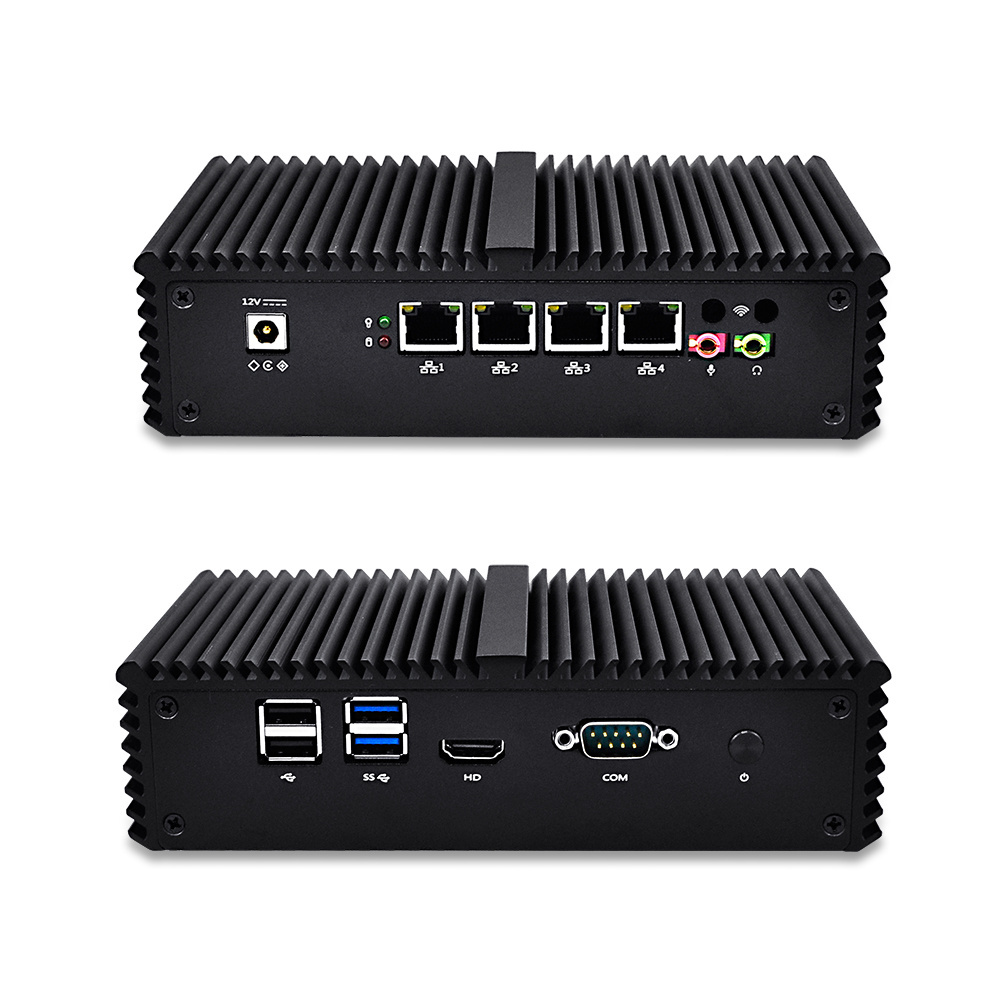

Front-Panel Connectors
|
• power on/off button
• 2 x USB 3.0 Ports • 2 x USB 2.0 Ports • 1 x HD Video Connector • 1 × Serial port |
|
Internal
Connectors |
• 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFI/BLUETOOT Module) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper • 1 x GPIO header (optional) • 1 x SIM Card slot (optional) |
|

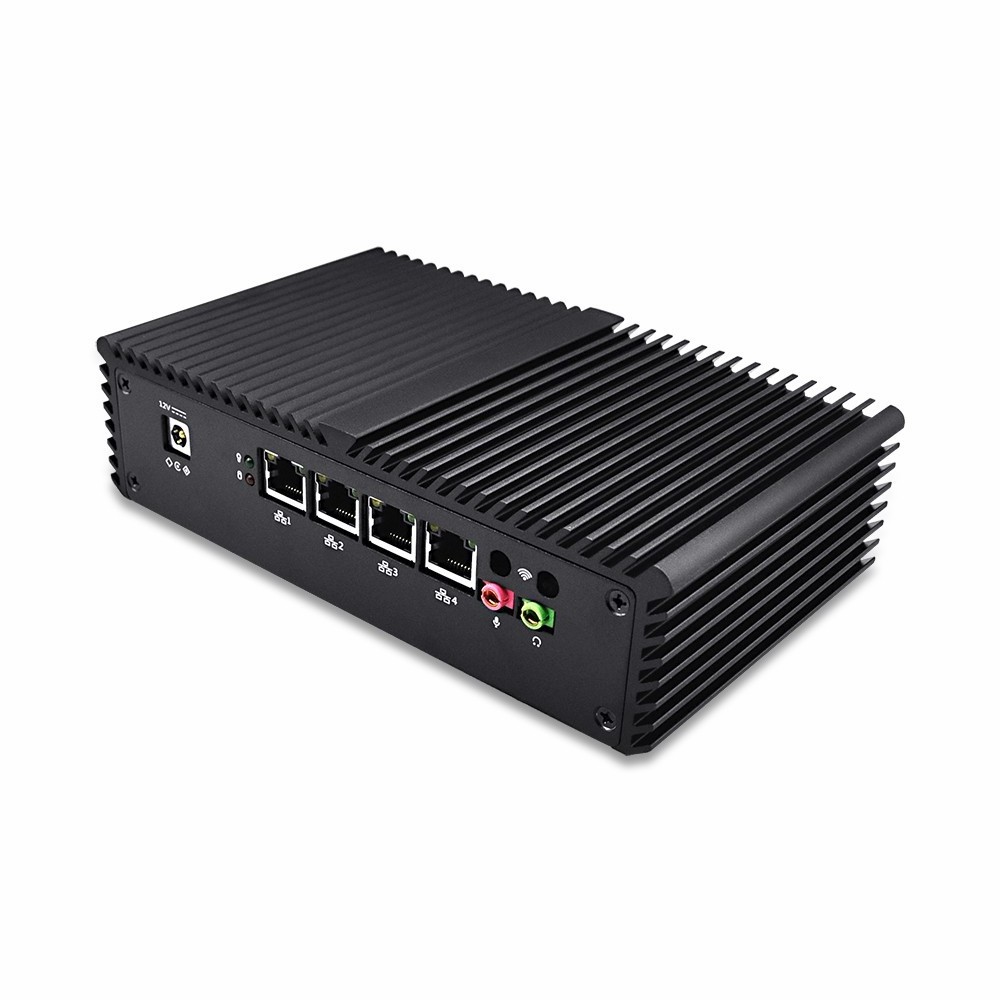

Back-Panel Connectors
|
• 1 ×DV 12V DC input
• HDD LED, Power LEDs • 4 x Intel RJ-45 Ports • 1 x Speak Out Connector • 1 x Mic In Connector |
|
Operating System
|
Support Windows 7 / Windows 8 / Windows 10 / Linux .etc
|
Configuration for Selection:
|
Memory
|
2G, 4G , 8G DDR3 RAM
|
|
Hard Disk
|
8G/16G/24G/32G/64G/128G/240G/512G Msata SSD or 500G/1Tb 2.5" HDD
|
|
WIFI
|
Optional
|
