Quick Details
-
Dimension(L*W*H):
-
670*490*780MM
-
Weight:
-
250kG
-
Crimping range:
-
6-51mm(1/4"-2")
-
Max crimping force:
-
449T
-
Rated pressure:
-
31.5Mpa
-
Mold quantity:
-
10 sets
-
Dies size:
-
15,18,23,26,31,36,41,47,55,61
-
scale accurary:
-
0.02mm
-
overall dimensions:
-
670*490*780MM
-
Votage:
-
220v/380v
-
Power:
-
3/4 Kw
-
Power(W):
-
3/4 Kw
-
Certification:
-
ce ISO9001
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HENGHUA
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
670*490*780MM
-
Weight:
-
250kG
-
Crimping range:
-
6-51mm(1/4"-2")
-
Max crimping force:
-
449T
-
Rated pressure:
-
31.5Mpa
-
Mold quantity:
-
10 sets
-
Dies size:
-
15,18,23,26,31,36,41,47,55,61
-
scale accurary:
-
0.02mm
-
overall dimensions:
-
670*490*780MM
-
Votage:
-
220v/380v
-
Power:
-
3/4 Kw
-
Power(W):
-
3/4 Kw
-
Certification:
-
ce ISO9001

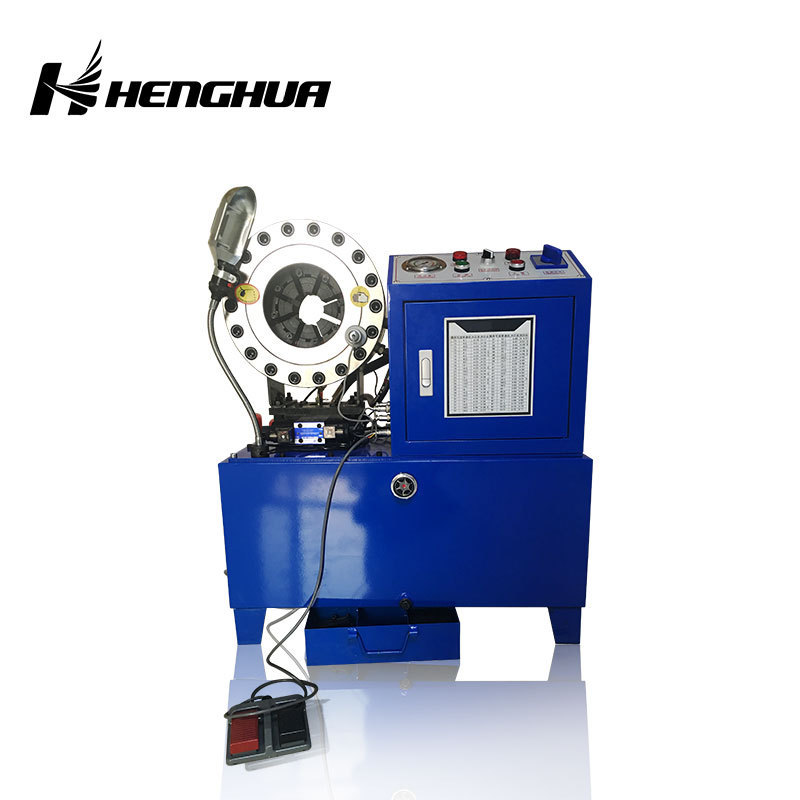

| hose crimping machine | ||||
| Model | DX68 | DX76 | DX102 | DX150 |
| Crimping range | 6-51mm(1/4" ~2") | 6~76mm ( 1/4~3" ) | 6~102mm ( 1/4~4" ) | 6-150mm(1/4~6") |
| Max crimping Force | 449T | 500T | 1400T | 2500T |
| Rated Pressure | 31.5MPa | 50Mpa | 31.5Mpa | 31.5Mpa |
| Weight | 250kg | 300kg | 520kg | 900kg |
| Mold Quantity | 10 sets | 13Sets | 16Sets | 17Sets |
| Power | 3KW/4KW | 4KW | 4KW/5.5KW/7.5KW | 4KW/5.5KW/7.5KW |
| Voltage | 220V/380V | 240V / 380V | 380V or customized | 380V or customized |
| Scale accuracy | 0.02mm | 0.02mm | 0.01mm | 0.01mm |
| Overall dimensions | 670*490*780mm | 730*470*930mm | 900*790*1070mm | 1030*630* 1160mm |
Installation and
Operation
