Quick Details
-
Brand Name:
-
LYHGB
-
Model Number:
-
SD.1155.25.00.B
-
Place of Origin:
-
Henan, China
-
Brand:
-
LYHGB
-
Bore size:
-
957mm
-
Outside Diameter:
-
1153mm
-
Material:
-
50Mn/42CrMo/Customized
-
Warrantee:
-
1 year
-
OEM:
-
Available
-
Dimension:
-
957*1153*63mm
-
Weight:
-
128KG
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Crane industry
-
Feature:
-
Four Point Contact
-
Seals Type:
-
NBR, NBR
-
Brand Name:
-
LYHGB
-
Model Number:
-
SD.1155.25.00.B
-
Place of Origin:
-
Henan, China
-
Brand:
-
LYHGB
-
Bore size:
-
957mm
-
Outside Diameter:
-
1153mm
-
Material:
-
50Mn/42CrMo/Customized
-
Warrantee:
-
1 year
-
OEM:
-
Available
-
Dimension:
-
957*1153*63mm
-
Weight:
-
128KG
Why Choose Us
Product Description
|
Type
|

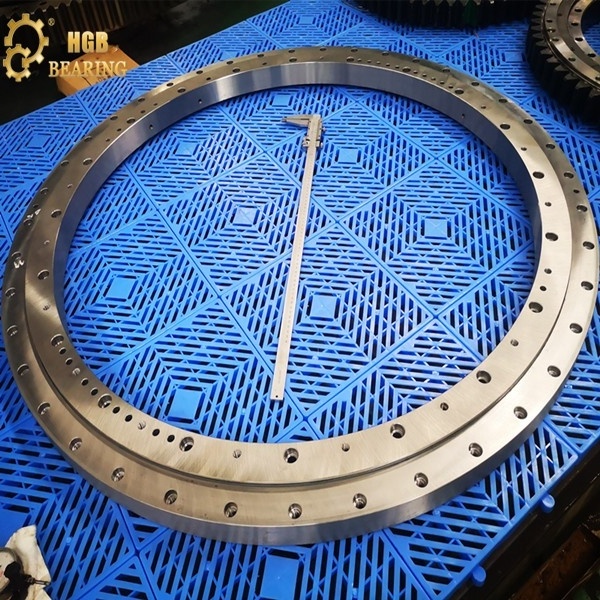

Single row four point contact ball slewing bearing
|
|
Rollng elements
|
Steel ball / Cylinder Roller
|
|
Rollng elements Material
|
GCr5/GCr15SiMn/Customized
|
|
Bearing Material
|
50Mn/42CrMo/42CrMo4V /Customized
|
|
Cage Material
|
Nylon/ steel /copper
|
|
Structure
|

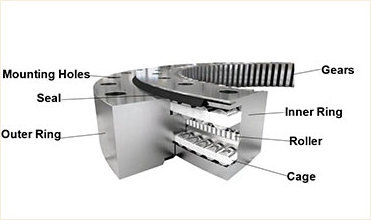

taper pin , Mounting holes,Inner ring ,grease fitting,load plug, seals , roller ,spacer balls or separators
|
|
Outer diameter
|
50-10000mm
|
|
Bore size
|
50-10000mm
|
|
Mounting hole
|
Through hole/Tapped hole
|
|
Raceway hardness
|
55-62HRC
|
|
Inner and outer ring
modulation hardness
|
229-269HB/Customized
|
|
Gear type
|
No gear ,Internal gear , External gear.
|
|
Embellish grease
|
EP2 lithium lubricating grease
|
|
Certificate
|
ABS.BV,DNV,ISO9001,GL
|
|
Application area
|
Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , offshore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator
|
|
Brand Name
|
HGB
|
|
Place of Origin
|
Luoyang Henan
|
|
Warranty
|
12 months
|
|
Payment term
|
T/T is our first choice
|
|
Packing details
|
1,Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box
|
