Quick Details
-
Optical Resolution:
-
1080*480
-
Scan Speed:
-
100ms
-
Brand Name:
-
WCMI
-
Place of Origin:
-
China
-
Image (Pixels) Sensor:
-
1080 X 480 CMOS @ 120fps
-
Light Source:
-
Fill Light: White 6500K LED / Aiming Light: Red LED
-
View Angle:
-
Horizontal 32°, Vertical 24°
-
Scan Angle:
-
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
-
Scan Mode:
-
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
-
Precisions:
-
1d ≥4mil / 2d ≥10mil
-
Symbol Contrast:
-
≥15%
-
Weight:
-
<200g
-
Dimensions:
-
138.18mm x 101.51mm x 63mm
-
Prompt Mode:
-
LED prompt,Vibration motor and buzzer
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
10mm
-
Optical Resolution:
-
1080*480
-
Scan Speed:
-
100ms
-
Brand Name:
-
WCMI
-
Place of Origin:
-
China
-
Image (Pixels) Sensor:
-
1080 X 480 CMOS @ 120fps
-
Light Source:
-
Fill Light: White 6500K LED / Aiming Light: Red LED
-
View Angle:
-
Horizontal 32°, Vertical 24°
-
Scan Angle:
-
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
-
Scan Mode:
-
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
-
Precisions:
-
1d ≥4mil / 2d ≥10mil
-
Symbol Contrast:
-
≥15%
-
Weight:
-
<200g
-
Dimensions:
-
138.18mm x 101.51mm x 63mm
-
Prompt Mode:
-
LED prompt,Vibration motor and buzzer
Product Description

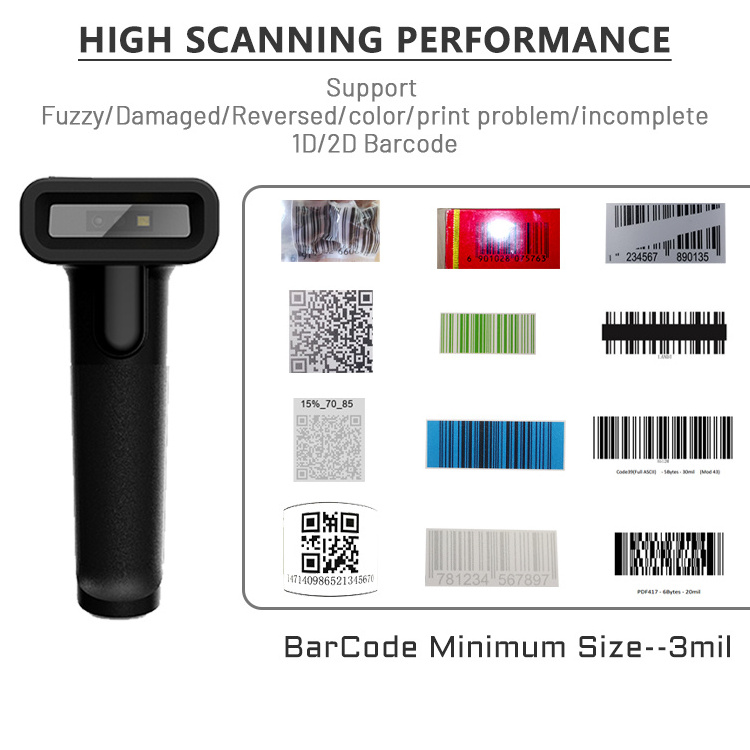

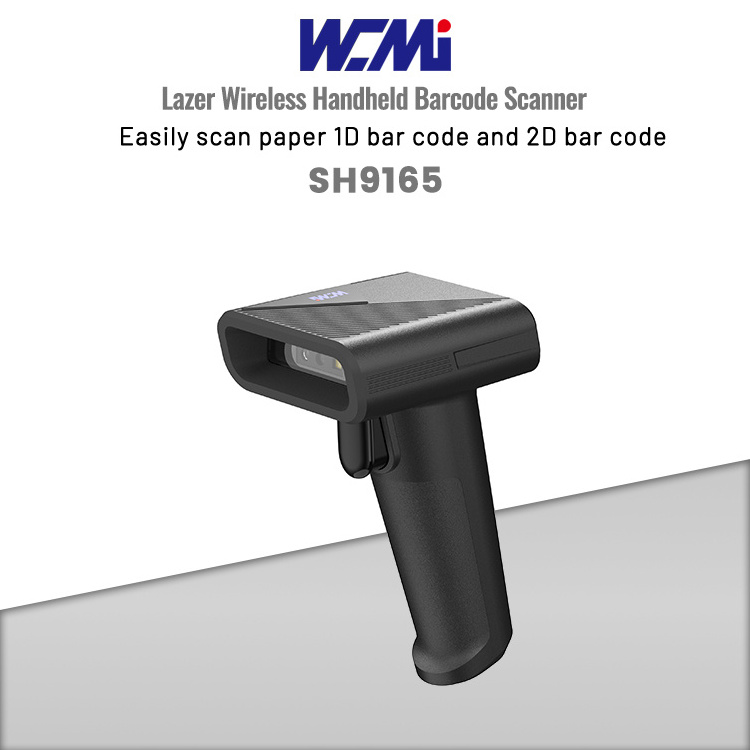

SH9165 is a wireless handheld barcode scanner with a minimum 4mil identification density. The product has excellent paper and screen barcode scanning performance. The lighting of Sh9165 can be customized according to requirements,it supports scan code buzzer feedback and vibration feedback. It can quickly read fuzzy, damaged, reversed, color, incomplete 1D or 2D barcode, besides, SH9165 can work in a wide range of temperature and humidity under various lighting environments (including completely dark environments). With a high-speed camera optical technology, SH9165 is suitable for smart scenarios such as restaurant, supermarket, hotel, governments and so on.
Specification
|
Image (Pixels) Sensor
|
640 X 480 CMOS @ 30fps
|
|
Light Source
|
Fill Light: White 6500K LED / Aiming Light: Red LED
|
|
View Angle
|
Horizontal 32°, Vertical 24°
|
|
Decoding capability
|
2D: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417 1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、
Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Expand、RSS-Limited、 Standard 2 of 5、Code 16K、Plessey、ChinaPost |
|
Depth of Field
|
Code39: 40~105mm （5mil） EAN13: 40~280 mm （13mil） CODE128: 45~370 mm （15mil） QR:20-210mm(15mil)
|
|
Scan Angle
|
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
|
|
Scan Mode
|
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
|
|
Precisions
|
1d ≥4mil / 2d ≥10mil
|
|
Symbol Contrast
|
≥15%
|
|
Weight
|
|
|
Dimensions
|
138.18mm x 101.51mm x 63mm
|
|
Prompt Mode
|
LED prompt，Vibration motor and buzzer
|
|
Voltage
|
DC+5V ±5%
|
|
Current
|
320mA
|
|
Operating temperature
|
-20℃ ~ 60℃
|
