diameter: 500mm
Noise: 85DB
size(mm): 1150(L)X950(W)X1129(H)
Weight: G.W.65KG
Voltage: 220V 50HZ
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
AC220V/50Hz 2KW
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Rulang
-
Dimension(L*W*H):
-
L1200mm*W900mm*H1460mm
-
Capacity:
-
1-60bags/min
-
Counting type:
-
Optical fiber counting,Cylinder counting
-
Bag size:
-
L:30-150mm W:25-100mm
-
Thickness of roll film:
-
0.05-0.10mm
-
Control system:
-
PLC
-
Sealing type:
-
3 sides sealing pr back sealing
-
Max roll film width:
-
≤240mm
-
Air Charge:
-
0.4-0.8Mpa
-
Packing material:
-
OPP/CPP,CPP/PE heat sealing composite material
-
Weight:
-
N.W 200kg G.W 300kg
-
Certification:
-
CE
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, Printing
-
Packaging Type:
-
Bags, Film, Pouch, Sachet
-
Packaging Material:
-
Plastic, Roll film
-
Voltage:
-
AC220V/50Hz 2KW
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Rulang
-
Dimension(L*W*H):
-
L1200mm*W900mm*H1460mm
-
Capacity:
-
1-60bags/min
-
Counting type:
-
Optical fiber counting,Cylinder counting
-
Bag size:
-
L:30-150mm W:25-100mm
-
Thickness of roll film:
-
0.05-0.10mm
-
Control system:
-
PLC
-
Sealing type:
-
3 sides sealing pr back sealing
-
Max roll film width:
-
≤240mm
-
Air Charge:
-
0.4-0.8Mpa
-
Packing material:
-
OPP/CPP,CPP/PE heat sealing composite material
-
Weight:
-
N.W 200kg G.W 300kg
-
Certification:
-
CE
Product Description

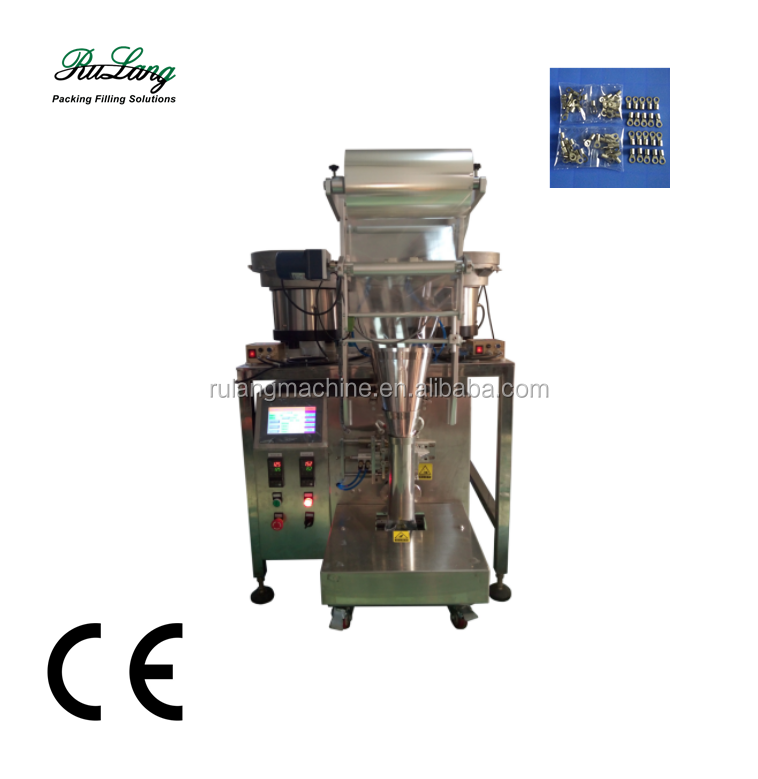

automatic counting packing machine
Product Application
|
SPECIFICATION FOR COUNTING PACKING MACHINE
|
|
|
|
|||
|
Model
|
RL-240D2
|
Product name
|
Counting&packing machine
|
|||
|
Control system
|
PLC
|
Operation type
|
Touch screen
|
|||
|
Packing type
|
Automatic
|
Counting type
|
Optical fiber counting,Cylinder counting
|
|||
|
Speed
|
1-60bags/min
|
Power voltage
|
AC220V/50Hz 2KW
|
|||
|
Feeder product
|
Vibrating plate
|
Air Charge
|
0.4-0.8Mpa
|
|||
|
Max film wdith
|
≤240mm
|
Make bag size
|
L35-150m,W25-100mm
|
|||
|
Seal type
|
3 sides sealing pr back sealing
|
Packing material
|
OPP/CPP,CPP/PE heat sealing composite material
|
|||
|
Make bag forming
|
Former set
|
Weight
|
N.W 200kg ,G.W 300kg
|
|||
|
Material
|
Stainless steel
|
Outside dimention
|
L1200mm*W900mm*H1460mm
|
|||
Detailed Images
Machine Parts
Main Features
Machine Parts
Main Features
Our Service
Pre-Sales Service
After-Sales Service
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1200 (L) * 900(W) * 1460 (D)
|
|
|
Weight
|
300KG
|
|
|
Packaging Details
|
The normal package is export standard wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Related Products
one vibrator plate counting packing machine
2 Vibrator counting packing machine
4 vibrator feeder counting packing machine
Our Company
FAQ
1. How long is the warranty period for this machine?
This machine has a one-year warranty. The machine sends one year of wearing parts, and the non-human damaged parts are replaced free of charge within one year.
2. What material is used in the contact between the machine and the material?
The machine and material contact part is made of 304 stainless steel and food grade ABS material.
3. Can the machine screen be in English or other languages?
Yes, you can use English or other languages (language composed of English letters, not in non-English letters)
4. How is this machine installed and operated?
We will send instructions and videos to us, and our customers can also send technical engineers to our factory to learn to install and debug. We can also send engineers to install and debug abroad (additional cost)
5. How to check the machine before delivery?
We will shoot the video to run the video before shipment, and the package will be packaged after the machine runs without problems.
6. Can the machine be sent to my address?
Can be shipped by sea, air or express, door to door service.
7. What certification does the machine have?
Our machine has CE or GMP certificate
This machine has a one-year warranty. The machine sends one year of wearing parts, and the non-human damaged parts are replaced free of charge within one year.
2. What material is used in the contact between the machine and the material?
The machine and material contact part is made of 304 stainless steel and food grade ABS material.
3. Can the machine screen be in English or other languages?
Yes, you can use English or other languages (language composed of English letters, not in non-English letters)
4. How is this machine installed and operated?
We will send instructions and videos to us, and our customers can also send technical engineers to our factory to learn to install and debug. We can also send engineers to install and debug abroad (additional cost)
5. How to check the machine before delivery?
We will shoot the video to run the video before shipment, and the package will be packaged after the machine runs without problems.
6. Can the machine be sent to my address?
Can be shipped by sea, air or express, door to door service.
7. What certification does the machine have?
Our machine has CE or GMP certificate
