Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
China shandong
-
Brand Name:
-
iGOLDENCNC
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
4000*2000*1800mm
-
Weight (KG):
-
2800
-
Spindle:
-
HQD 9.0kw ATC air cooling
-
Machine Body:
-
Square Tube Welding Structure
-
Guide Rails:
-
Taiwan HIWIN
-
Driver:
-
Japan YASKAWA Servo Drive and Servo Motor
-
Reducer:
-
Japan SHIMPO
-
Worktable:
-
Profile Clamping Table
-
Frequency Converter:
-
Taiwan DELTA
-
Electrical Components:
-
France SCHNEIDER
-
Z Axis Transmission:
-
Ball screw
-
X, Y Axis Transmission:
-
Rack
Quick Details
-
Working Table Size(mm):
-
2000×3000
-

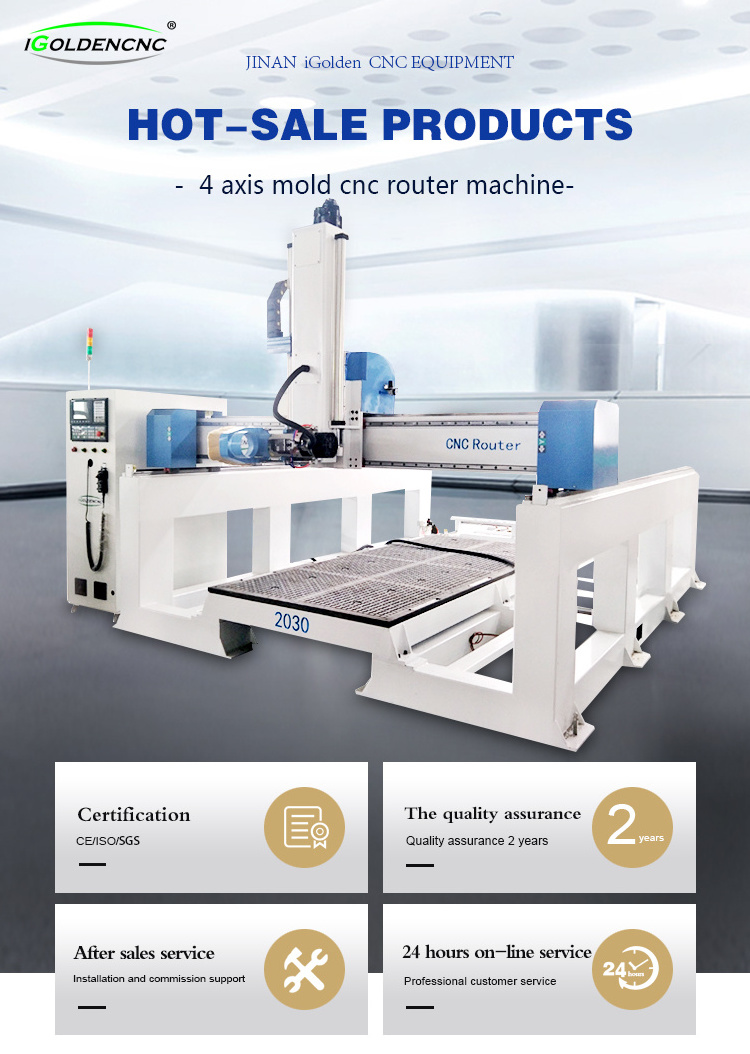

Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
China shandong
-
Brand Name:
-
iGOLDENCNC
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
4000*2000*1800mm
-
Weight (KG):
-
2800
-
Spindle:
-
HQD 9.0kw ATC air cooling
-
Machine Body:
-
Square Tube Welding Structure
-
Guide Rails:
-
Taiwan HIWIN
-
Driver:
-
Japan YASKAWA Servo Drive and Servo Motor
-
Reducer:
-
Japan SHIMPO
-
Worktable:
-
Profile Clamping Table
-
Frequency Converter:
-
Taiwan DELTA
-
Electrical Components:
-
France SCHNEIDER
-
Z Axis Transmission:
-
Ball screw
-
X, Y Axis Transmission:
-
Rack
Product Introduction
Product Parameters
|
Description
|
Parameters
|
|
Working area
|
2000*3000*900mm
|
|
Table size
|
2600*4650mm
|
|
Transmission
|
X/Y rack and pinion,Z ball screw
|
|
Table structure
|
Vacuum Absorption(Optional)
|
|
Spindle power
|
HQD 9KW
|
|
Spindle speed
|
18000rmp/min
|
|
Travelling speed
|
45m/min
|
|
Working speed
|
30m/min
|
|
Working Delicacy
|
0.02mm
|
|
Repositioning Accuracy
|
0.03mm
|
|
Driving Motor
|
Sever motor
|
|
Control System
|
Syntec
|
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
Voltage
|
3 Phase/380V/50HZ
|
|
Software
|
Artcam/Type3,other CAD/CAM
|
About US
Packaging and Shipping
FAQ
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: Can you arrange the shipment for me ?
A: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very
experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: Can you arrange the shipment for me ?
A: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very
experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
