6006 Rotary Knob Blue Sea Battery Disconnect Switch Main Power Isolator Switch for Marine
6006 Rotary Knob Blue Sea Battery Disconnect Switch Main Power Isolator Switch for Marine
6006 Rotary Knob Blue Sea Battery Disconnect Switch Main Power Isolator Switch for Marine
6006 Rotary Knob Blue Sea Battery Disconnect Switch Main Power Isolator Switch for Marine
6006 Rotary Knob Blue Sea Battery Disconnect Switch Main Power Isolator Switch for Marine
6006 Rotary Knob Blue Sea Battery Disconnect Switch Main Power Isolator Switch for Marine

6006 Rotary Knob Blue Sea Battery Disconnect Switch Main Power Isolator Switch for Marine

FOB Reference Price: Get Latest Price
≥10 Pieces
US $10
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
REOMAX
Model Number:
6006
Max. Current:
300A
Product Name:
Battery Disconnect Switch Main Battery Isolator Switch
Volts:
48V DC
Amps:
300A
Cranking Rating:
900A
Intermittent Rating:
500A
No of Circuit:
Single
Color:
Red
warranty:
1 year
Switch positions:
2
Usage:
Marine

Quick Details

Whether the smart:
NO
Max. Voltage:
48V
Place of Origin:
Guangdong, China
Brand Name:
REOMAX
Model Number:
6006
Max. Current:
300A
Product Name:
Battery Disconnect Switch Main Battery Isolator Switch
Volts:
48V DC
Amps:
300A
Cranking Rating:
900A
Intermittent Rating:
500A
No of Circuit:
Single
Color:
Red
warranty:
1 year
Switch positions:
2
Usage:
Marine
Product Description
48V Panel Mount ON-OFF Power Switch for Battery Packs
• Switches a single battery to a single load group
• Tin-plated copper studs for maximum conductivity and corrosion resistance •
Studs accept 3/8" (M10) ring terminals
• One-piece terminal stud design never loosens over time
• Isolating cover with three
snap-off side pieces protects rear contacts and allows wire access in any direction
Product Name
Battery Switch
Description
Single Circuit ON-OFF
Voltage Max.
48V DC
Continuous Rating
300A
Cranking Rating
900A
Intermittent Rating
500A
Color
Red
Mount Type
Panel Mount
Actuator Type
Rotary
Number of Positions
2
Dimension
3 x 4 x 6 inches
Protection grade
P66

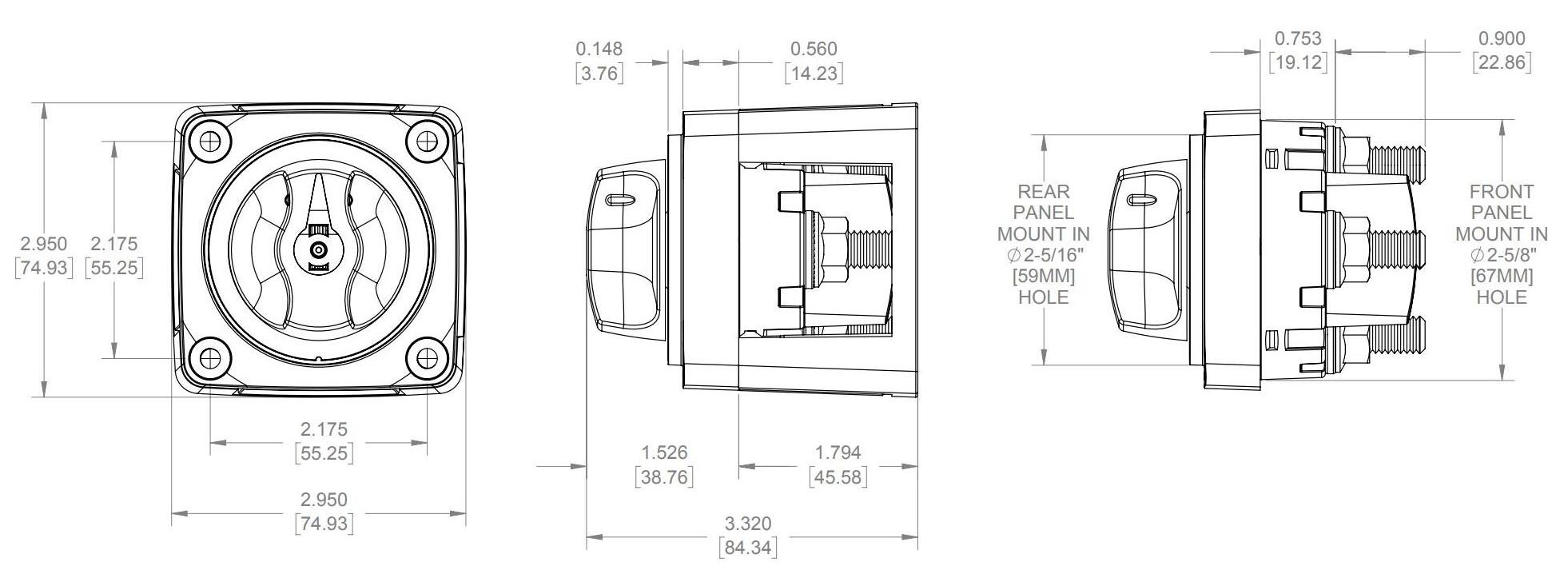

Dimension

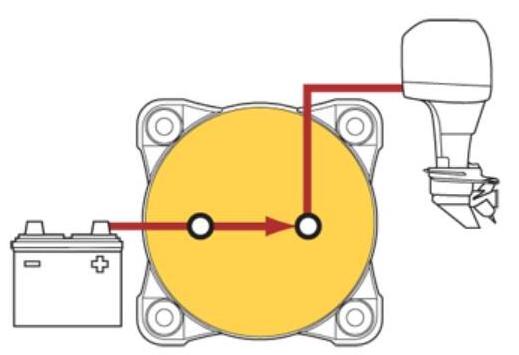

How it works

Switches a single battery to a single load group

*Ignition protected—safe for installation aboard gasoline powered boats
*Case design allows surface, front panel, or rear panel mounting
*Isolating cover with snap-on sections protects rear contacts

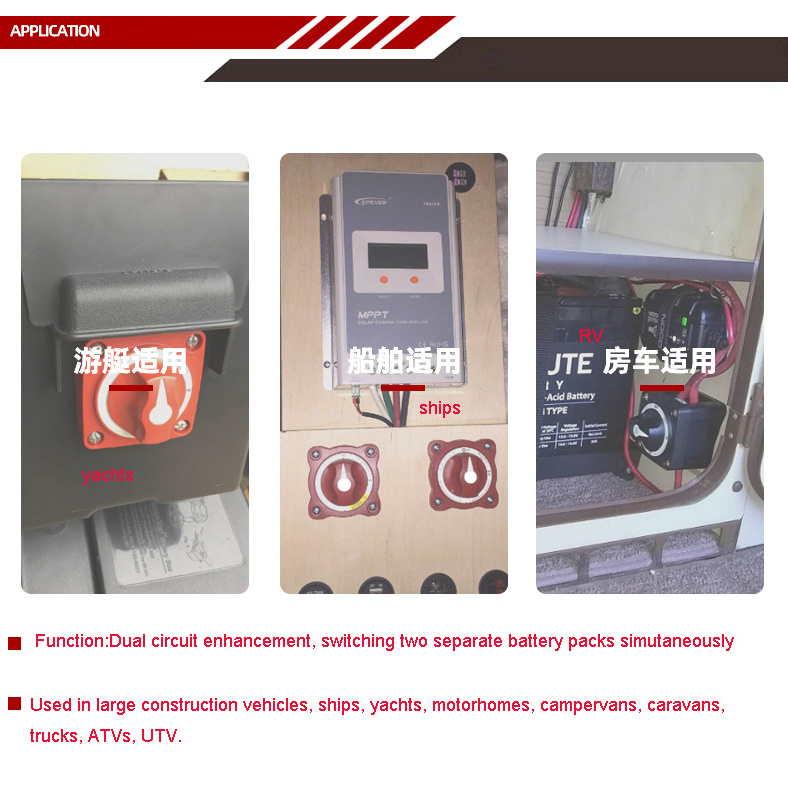

Applications
Title goes here.
Function: Dual circuit enhancement, switching two separate battery packs simultaneously
Used in large construction vehicles,
ships, yachts, motorhomes,
campervans, caravans,
trucks, ATVs, UTV.
