Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
SL220V-100W
-
Output Frequency:
-
50/60Hz
-
Product Name:
-

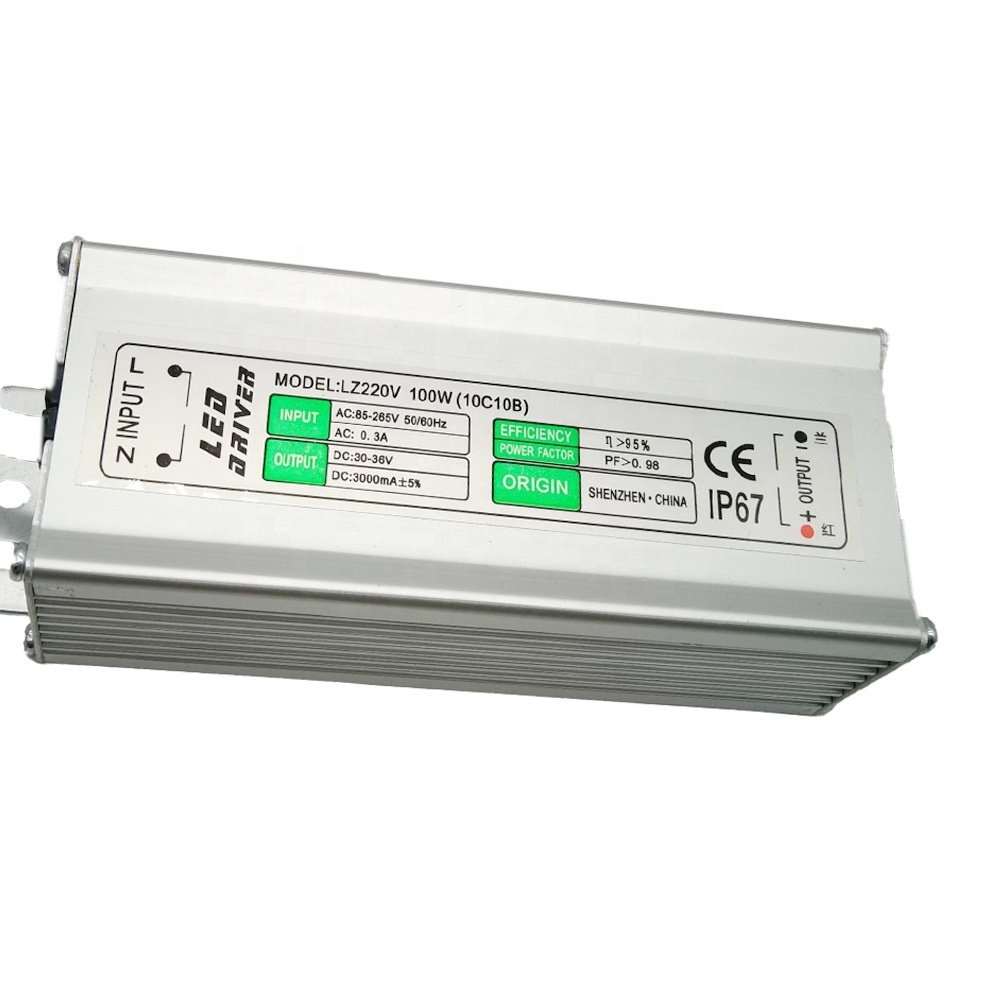

Waterproof led driver 100w
-
Input:
-
AC85-265v
-
Output:
-
3000mA constant current
-
Output voltage:
-
24~36vdc
-
Waterproof level:
-
IP65/ip67
-
PF:
-
Eff.>85 PF>0.9
-
Application:
-
LED Flood Light
-
Size:
-
157x68x45mm
-
Material:
-
Aluminum Alloy
-
Weight:
-
0.5kg
Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
0.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
SL220V-100W
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
Waterproof led driver 100w
-
Input:
-
AC85-265v
-
Output:
-
3000mA constant current
-
Output voltage:
-
24~36vdc
-
Waterproof level:
-
IP65/ip67
-
PF:
-
Eff.>85 PF>0.9
-
Application:
-
LED Flood Light
-
Size:
-
157x68x45mm
-
Material:
-
Aluminum Alloy
-
Weight:
-
0.5kg
| Model Number | SL220v-100w(10C10B) |
| Place of Origin | China |
| Brand Name | OEM |
| Output Power | 100W |
| Output Type | Single |
| Input Voltage | AC85-265V |
| Output Voltage | DC 24~36v |
| Output Frequency | 50-60Hz |
| Output Current | 3000mA |
| Power Factor | 0.7-0.95 (optional) |
| LED Connection Type |
high power led 10series &10 parallels
|
| Color | Silver or Grey |
| Material | Aluminum |
| Size | 157x68x45mm |
| IP Rating | IP67, waterproof, dustproof |
| Lifespan | 30,000-50,000 hours |
| Warranty | 2 years |
| Certificate | CE, RoHS |
| Model | Input voltage | Output voltage | Output current | efficiency | PF | Size ( L*W*H) |
| 10W(10S1P) | AC85-265V | 30-40V | 300mA±3% | 0.88 | ≥0.95 | 79*29*21mm |
| 20W(10S2P) | AC85-265V | 30-40V | 600mA±3% | 0.88 | ≥0.95 | 105*35 *23mm |
| 30W(10S3P) | AC85-265V | 30-40V | 900mA±3% | 0.88 | ≥0.95 | 141*57*34MM |
| 40W(10S4P) | AC85-265V | 30-36V | 1.2A±3% | 0.88 | ≥0.95 | 141*57*34MM |
| 50W(10S5P) | AC85-265V | 30-6V | 1.5A±3% | 0.88 | ≥0.95 | 141*57*34MM |
| 60W(10S6P) | AC85-265V | 30-36V | 1.8A±3% | 0.88 | ≥0.95 | 155*62*38MM |
| 70W(10S7P) | AC85-265V | 30-36V | 2.1A±3% | 0.88 | ≥0.93 | 155*62*38MM |
| 80W(10S8P) | AC85-265V | 30-38V | 2.4A±3% | 0.88 | ≥0.93 | 155*62*38MM |
| 90W(10S9P) | AC85-265V | 30-36V | 2.7A±3% | 0.88 | ≥0.93 | 140*62*40mm |
| 100W(10C10B) | AC85-265V | 30-36V | 2.8-3A±3% | 0.88 | ≥0.93 | 140*62*40mm |
| 120W(10C12B) | AC 85-265V | 30-36V | 3600mA±3% | 0.9 | 0.99 | 219*66*44mm |
| 150W(10C15B) | AC 85-265V | 30-36V | 4500mA±3% | 0.9 | 0.99 | 219*66*44mm |
| 160W(10C16B) | AC 85-265V | 30-36V | 4800mA±3% | 0.9 | 0.99 | 219*66*44mm |
| 180W(10C18B) | AC 85-265V | 30-36V | 5400mA±3% | 0.9 | 0.99 | 219*66*44mm |
| 200W(10C20B) | AC 85-265V | 30-36V | 6000mA±3% | 0.9 | 0.99 | 219*66*44mm |
