Quick Details
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Waste Rubber Tyre Recycle Machine
-
capacity:
-
500kg-3000kg/h
-
feeding material:
-
waste tires
-
final product:
-
rubber blocks, rubber granules, rubber powder
-
Shippment:
-
By sea
-
Application:
-
Rubber Processing Machinery
-
Advantage:
-
long service time
-
Keyword:
-
recycling tire machines to destroy tires
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HVST
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Waste Rubber Tyre Recycle Machine
-
capacity:
-
500kg-3000kg/h
-
feeding material:
-
waste tires
-
final product:
-
rubber blocks, rubber granules, rubber powder
-
Shippment:
-
By sea
-
Application:
-
Rubber Processing Machinery
-
Advantage:
-
long service time
-
Keyword:
-
recycling tire machines to destroy tires
PLC Fully automatic

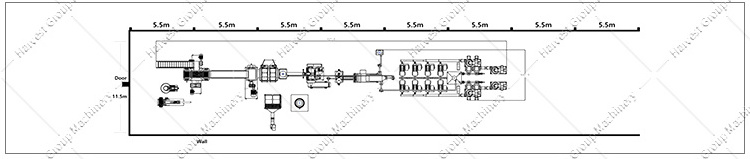

1.Provide the floor space and size required for recycling machine.

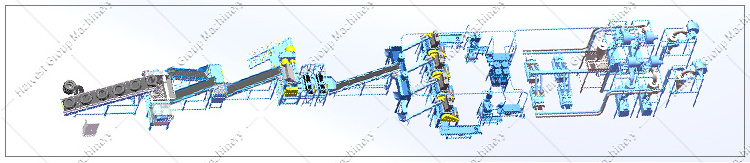

2.Provide the complete recycling line layout and its 3D drawing
3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training
1.Tire shredder machine
|
Model
|
Input size
|
Output size
|
Cappacity
|
Motor
|
Blades quantity
|
Dimensions
|
Weight
|
|
TS-800
|
800mm
|
50*50mm
|
1-2T/h
|
2*22kw
|
16pcs
|
4*2.6*3.2m
|
8T
|
|
TS-1200
|
1200mm
|
60*60mm
|
3-5T/h
|
2*37kw
|
20pcs
|
4.8*2.8*3.5m
|
14T
|
|
TS-1600
|
1600mm
|
50-150mm
|
6-8T/h
|
2*45kw
|
16-30pcs
|
5*2*3.4m
|
18T
|
|
TS-1800
|
1800mm
|
50-150mm
|
7-10T/h
|
2*55kw
|
20-24pcs
|
5.6*2*3.4m
|
23T
|
|
TS-2000
|
2000mm
|
75-200mm
|
10-15T/h
|
2*75kw
|
20-30pcs
|
6*2.4*4m
|
36T
|
|
TS-2400
|
2400mm
|
100-200mm
|
20-30T/h
|
2*110kw
|
16-24pcs
|
7.4*3.2*5.2m
|
56T
|
|
Rasper
|
Motor
|
Power
|
Capacity
|
Dimensions
|
Weight
|
Cutting chamber
|
Final product
|
|
R45
|
Siemens
|
45KW
|
300-500kg/H
|
1.4*1.2*2.3m
|
1700kg
|
450*600mm
|
10-30mm
|
|
R55
|
Siemens
|
55KW
|
500-700kg/H
|
1.7*1.7*2.3m
|
1850kg
|
450*800mm
|
10-30mm
|
|
R75
|
Siemens
|
75KW
|
700-1T/H
|
2*2*4.1m
|
3500kg
|
550*800mm
|
10-30mm
|
|
R90
|
Siemens
|
90KW
|
1-1.5T/H
|
2.1*2.1*4.1m
|
4200kg
|
550*1000mm
|
10-30mm
|
|
R132
|
Siemens
|
132KW
|
1.5-3T/H
|
2*2.5*4.1m
|
6100kg
|
742*1200mm
|
10-30mm
|
|
R315
|
Siemens
|
315KW
|
3-6T/H
|
6.2*2.1*3.6m
|
12400kg
|
697*1562mm
|
10-30mm
|
|
Granulator
|
G37
|
G45
|
G90
|
|
Motor
|
Siemens
|
Siemens
|
Siemens
|
|
Power
|
37kw
|
45kw
|
90kw
|
|
Capacity
|
300-500kg/h
|
500-800kg/h
|
800-1500kg/h
|
|
Dimensions
|
1.8*1.6*2.4m
|
1.8*1.9*2.4m
|
2.2*2.3*3m
|
|
Final product
|
1-6mm
|
1-6mm
|
1-6mm
|
4.Miller
|
Rubber powder
|
M2000
|
M1500
|
M1000
|
M500
|
|||
|
Input product
|
Heavy duty truck tyres to bicycle tyres
|
|
|
|
|||
|
Input size
|
Diameter 1800mm
|
Diameter 1800mm
|
Diameter 1800mm
|
Diameter 1800mm
|
|||
|
Output size
|
shred to 30-120 mesh rubber powder
|
|
|
|
|||
|
Capacity
|
2000kg/h
|
1500kg/h
|
1000kg/h
|
500kg/h
|
|||
|
Total Kw
|
680-760kw
|
516-556kw
|
347-372kw
|
170-190kw
|
|||
Customer feedback
Why Choose Us
Zhengzhou Harvest Machinery Co., Ltd
HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.

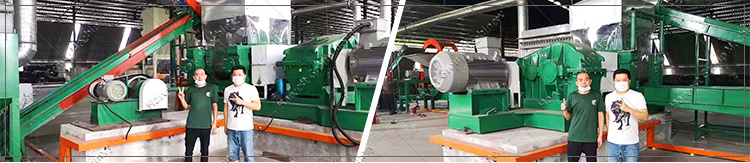

Customer Site
FAQ
1. who are we?
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Plastic Recycling/Cable Wire Recycling/Wood Shredder, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling/Plastic Recycling/Wood Shredder
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience 2. All machines are 2 years warranty 3. Competitive price with high quality 4.We got SGS inspection certificate and CE certificate 5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Plastic Recycling/Cable Wire Recycling/Wood Shredder, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling/Plastic Recycling/Wood Shredder
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience 2. All machines are 2 years warranty 3. Competitive price with high quality 4.We got SGS inspection certificate and CE certificate 5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
