Quick Details
-
Brand Name:
-
IVOR
-
Model Number:
-
SK-ES2300
-
Material:
-
PC plastic
-

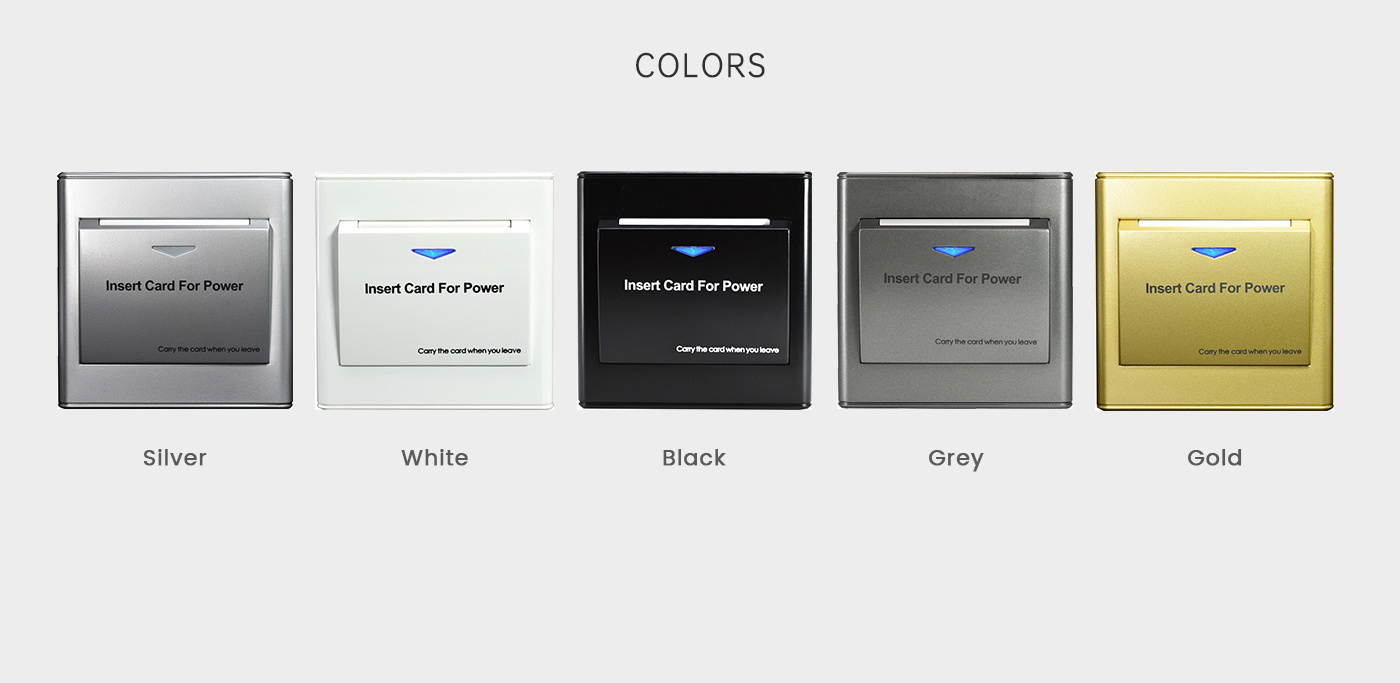

Color:
-
White, Black, Gold, Silver, Grey
-
Function:
-
Hotel room power control
-
Voltage:
-
190V ~ 240V
-
Current:
-
16A
-
Certificate:
-
CE
-
Lead Time:
-
7-10 days
-
Warranty:
-
2 Years
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
190~220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IVOR
-
Model Number:
-
SK-ES2300
-
Material:
-
PC plastic
-
Color:
-
White, Black, Gold, Silver, Grey
-
Function:
-
Hotel room power control
-
Voltage:
-
190V ~ 240V
-
Current:
-
16A
-
Certificate:
-
CE
-
Lead Time:
-
7-10 days
-
Warranty:
-
2 Years
PRODUCT INTRODUCTION

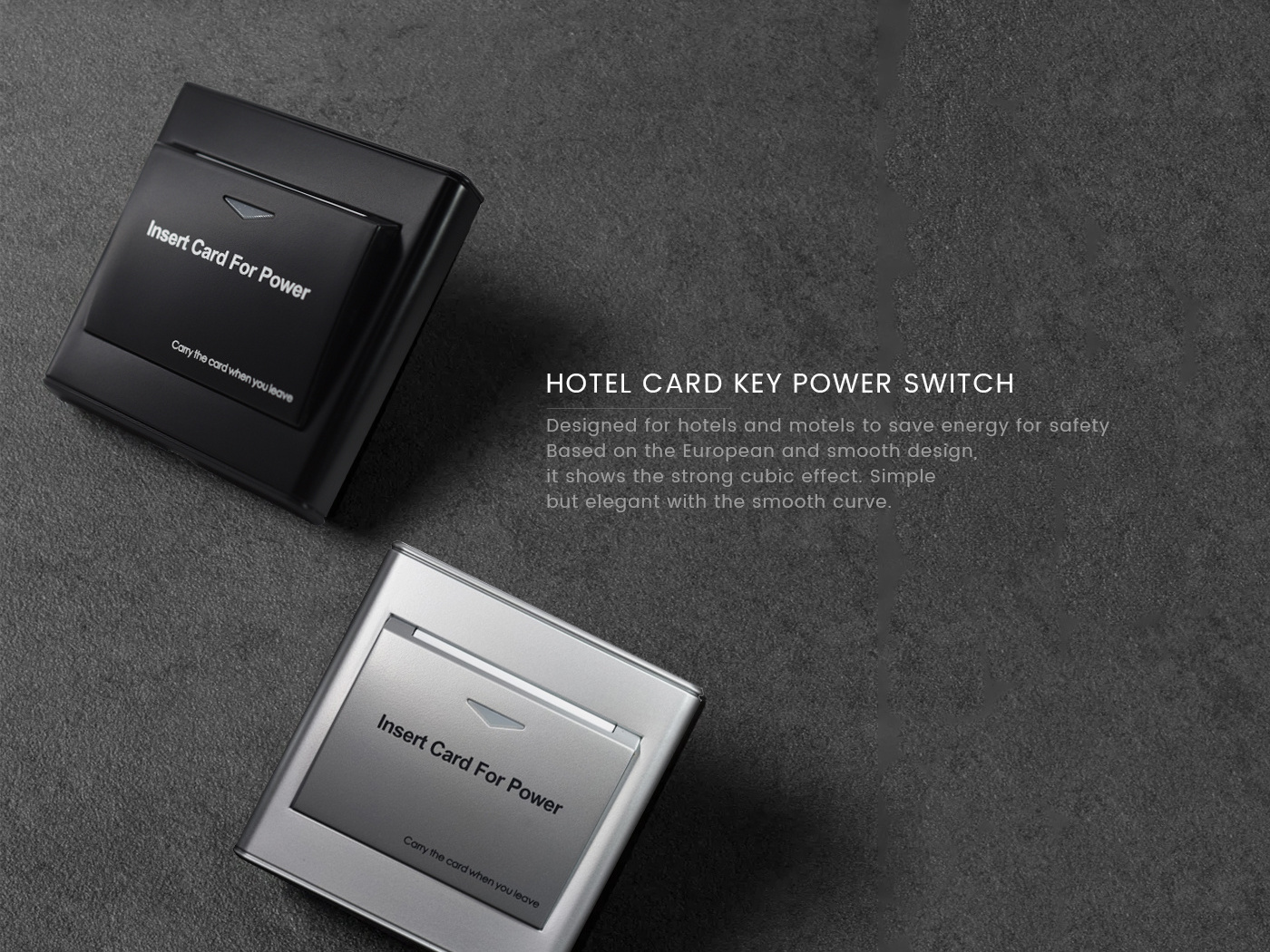

Smart Hotel Room Energy Saving Electrical Insert Rfid Key Card Power Saver Switch
PRODUCT DETAILS
|
Parameter
|
|
|
|
Size
|
86*86 mm
|
|
|
Working voltage
|
50/60 Hz, 110~240 V AC
|
|
|
Operating temperature
|
-10~60 ℃
|
|
|
Service life
|
at least 100 thousand times
|
|
|
Delay
|
20-30s delay
|
|
|
Words printed
|
Customized printing as need in different languages
|
|
|
Blue LED indicator
|
With Blue LED
|
|
|
Card type
|
Low frequency RF card
|
|
Special Surface Shape Card Insert Part Design
The middle card insert part is special surface shape design, this make the whole product full of design feeling.
High Loading Current
This product Max load is 40A 8000W, it is much power more than other normal energy saving switch 30A 6000W. It can be connected to more electric device, more useful.
This product Max load is 40A 8000W, it is much power more than other normal energy saving switch 30A 6000W. It can be connected to more electric device, more useful.
High Sensitivity
This product is using high sensitivity technology chip, just near the card insert part, can be identified activated, not like many old other company goods need insert the right position then can gain power.
This product is using high sensitivity technology chip, just near the card insert part, can be identified activated, not like many old other company goods need insert the right position then can gain power.
Room Status Function
Together with outdoor display doorplate, indoor control panel and bell, it forms the doorplate system and show room status to staff member and visitors. When card insert, gain power, the outdoor panel bell touch will be on and means there is person in the room, when card pushed out the doorbell button LED will be off means no person no card insert in the room.
Together with outdoor display doorplate, indoor control panel and bell, it forms the doorplate system and show room status to staff member and visitors. When card insert, gain power, the outdoor panel bell touch will be on and means there is person in the room, when card pushed out the doorbell button LED will be off means no person no card insert in the room.
High-Quality PC Flame Retardant Materials
Base and mounting box both applies high-quality V0 ABS flame retardant materials, fireproofing, flame retardant and strong security.
Base and mounting box both applies high-quality V0 ABS flame retardant materials, fireproofing, flame retardant and strong security.
Excellent Cooling Design
Switch base is designed multi-cellular and the on-off circuit is designed in open space which makes it faster to cool down, and prolong the service life.
Switch base is designed multi-cellular and the on-off circuit is designed in open space which makes it faster to cool down, and prolong the service life.
Customized Printed Card Option
We can customized different style content mifare card, or other card, as need, including logo, hotel information, room numbers etc.
We can customized different style content mifare card, or other card, as need, including logo, hotel information, room numbers etc.

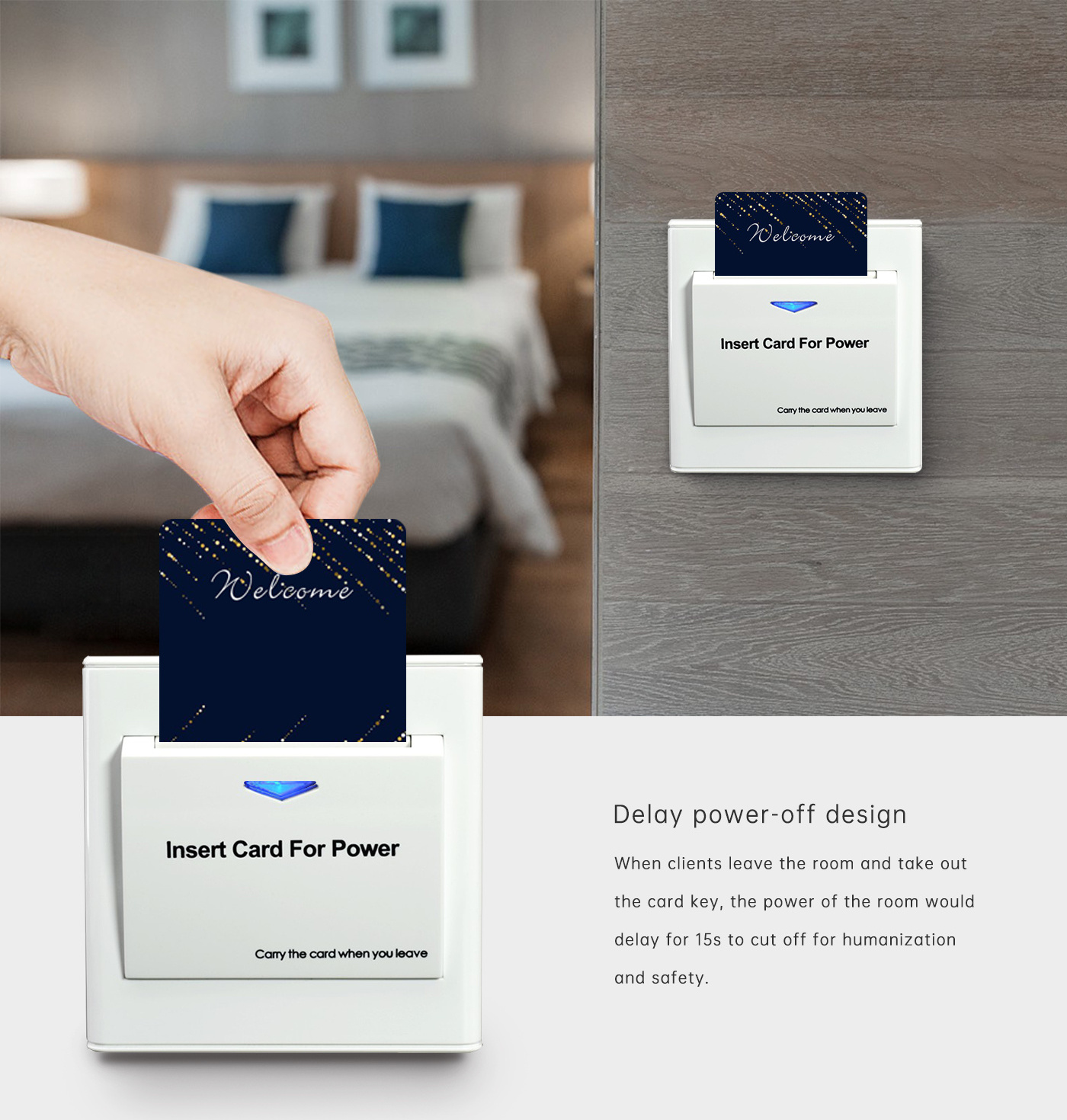

When guest get in the room, insert card for power of the room appliance, when he/she leaves the room and withdraw the card, power cut delay to protect the circuit.
2. Used in different areas:
Suitable for hotels, apartment, motel, schools, colleges, universities, hospitals, leisure centers and offices etc.
3.Our Energy saving switch advantage:
1- Low price: very competitive price range.
2- Best quality: factory supply, stable with fast after-sale service
3- Quick shipping: For 100 hotel switches delivery time 2-3 days.
4- Safe&secure transaction: Payment by T/T; Western Union,
5- Experienced technical service: Any technical demands or special requirement we can supply for you.
6- After-sale service:2 years warranty.

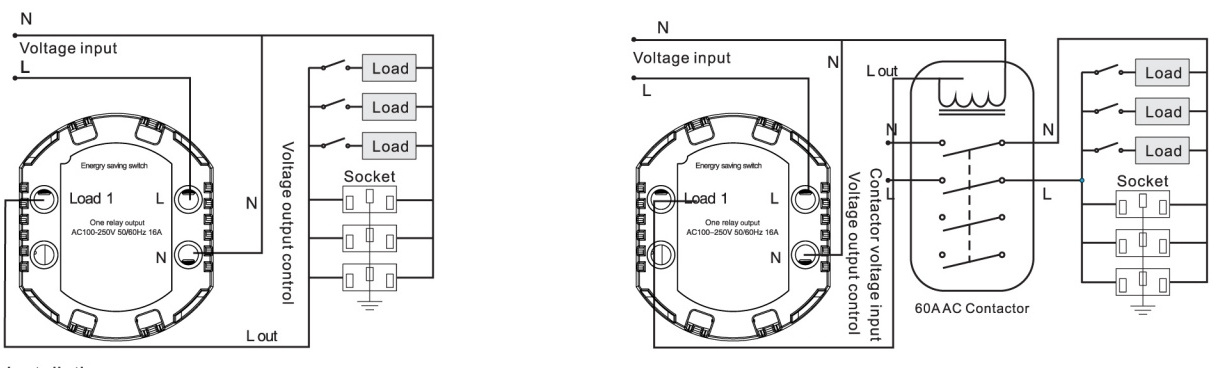

WIRING DIAGRAM
