Quick Details
-
Features:
-
Efficient
-
Dimension(L*W*H):
-
Depends on the power of the machine
-
Power:
-
10 Kw- 200 Kw, 10 Kw-200 Kw/ Customize
-
Voltage:
-
220V/ 380V/ 415/ Customize, 220V/ 380V/ 415/ Customize
-
Weight (KG):
-
1300
-
Marketing Type:
-
Hot Product
-
Product name:
-
Fennel Seed Dryer Spice Drying Machine
-
Heating source:
-
Microwave
-
Microwave frequency:
-
2450MHz ± 50 Hz
-
Machine material:
-
SUS
-
Power Source:
-
Electricity
-
Feature:
-
Efficient
-
MOQ:
-
1 Set
Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
KLD-GZ
-
Application:
-
Drying, Food/Chemical
-
Features:
-
Efficient
-
Dimension(L*W*H):
-
Depends on the power of the machine
-
Power:
-
10 Kw- 200 Kw, 10 Kw-200 Kw/ Customize
-
Voltage:
-
220V/ 380V/ 415/ Customize, 220V/ 380V/ 415/ Customize
-
Weight (KG):
-
1300
-
Marketing Type:
-
Hot Product
-
Product name:
-
Fennel Seed Dryer Spice Drying Machine
-
Heating source:
-
Microwave
-
Microwave frequency:
-
2450MHz ± 50 Hz
-
Machine material:
-
SUS
-
Power Source:
-
Electricity
-
Feature:
-
Efficient
-
MOQ:
-
1 Set

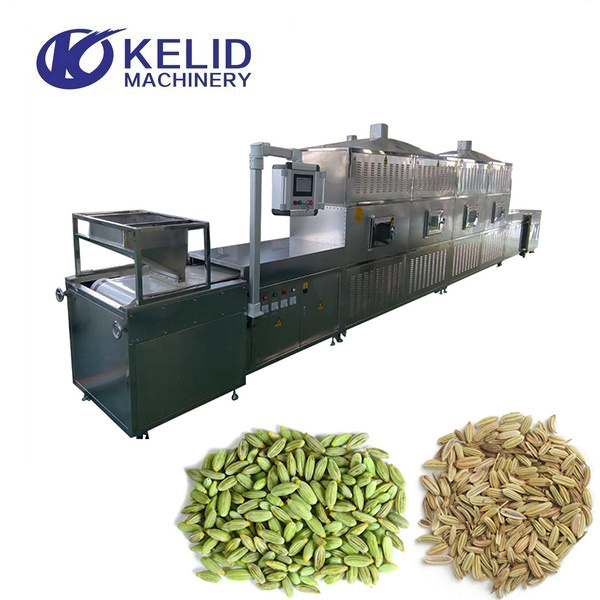

Fennel Seed Dryer Spice Drying Machine
Product Overviews
Introduction of microwave:
The microwave is an electromagnetic wave has a frequency of 300MHz-300GHz. The moisture in the heated mediu are polar mocules, under the cation of rapidly changing high-frequency electromagnetic fields, their polar orientation will change with the change of the external eletric field, causing molecular motion and mutual friction effects. At this time, the field energy in the microwave field is converted into thermal energy in the medium, so that the temperature of the material is increased, and a series of physicochemical processes of the heating and expansion are fenerated to achieve the purpose of microwave heating and drying.
Application of microwave machinery:
This equipment is mainly used for food drying, sterilization, heating, curing, etc. It can also be used for drying, extraction and heating in the chemical industries.

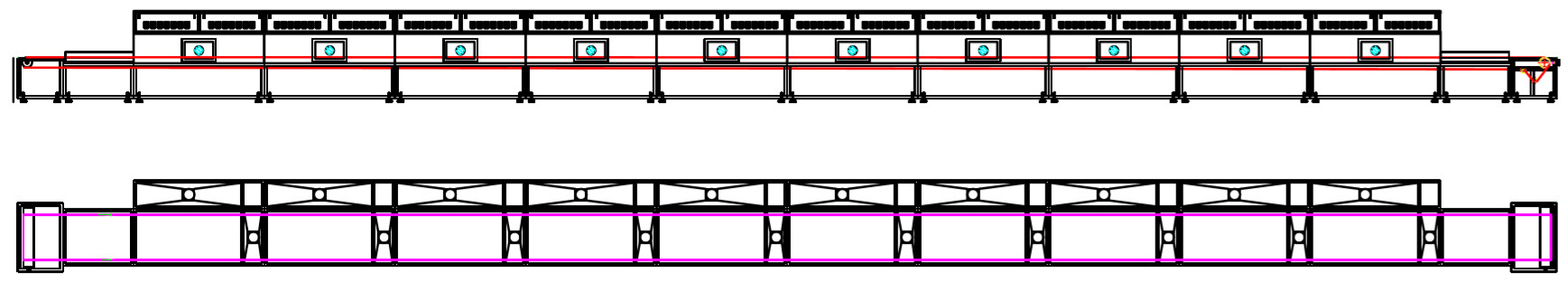

Equipment structure diagram:
Details
Detailed pictures:
Adopt high-definition color display screen, workers can observe the inside of the tunnel at any time.
Adopt Programmable Logic Controller (PLC) and sensitive touch screen make the operation of the machine simple and easy.
There are two kinds of operating mode, can be setted in the operating system, automatic mode and manual mode. In the automatic mode, workers only need to check the operation of the equipment without operating the equipment, which can greatly reduce labor costs.
The conveyor belt and opening can be selected according to the characteristics of raw materials.
Water-cooled magnetron for continuous non-stop operation.
This is air-cooled magnetron, can not work without interruption, but the price is lower than water-cooled magnetron. This type of magnetron is suitable for low power machine, or the areas with low ambient temperature.
Feature & Advantage
Features and advantages of the microwave drying machine:
Machine Parameter
| Model | Installed Power (KW) | Drying Capacity (kg/h) | Dimension (mm) |
| KLD-10GZ | 10 | 10 | 7010*840*1750 |
| KLD-20GZ | 20 | 20 | 9350*840*1750 |
| KLD-30GZ | 30 | 30 | 11690*840*1750 |
| KLD-40GZ | 40 | 40 | 10520*1060*1750 |
| KLD-50GZ | 50 | 50 | 11690*1060*1750 |
| KLD-60GZ | 60 | 60 | 12860*1060*1750 |
| KLD-70GZ | 70 | 70 | 14030*1060*1750 |
| KLD-80GZ | 80 | 80 | 12680*1200*1750 |
| KLD-100GZ | 100 | 100 | 15200*1200*1750 |
| KLD-150GZ | 150 | 150 | 21050*1200*1750 |
| KLD-200GZ | 200 | 200 | 25050*1200*1750 |
