Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
customize
-
Model Number:
-
JGS1 JGS2 JGS3
-
Color:
-
transparent
-
Tolerance:
-
+/-0.05mm to 0.1mm
-
Surface:
-
20/10--80/50
-
Size:
-
5-800mm customize
-
Transmission:
-
>90% or with AR/AF/AS
-
Coating:
-
Ar /AF/AS Coated
-
Surface Quality:
-
60/40 40/20 20/10
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
optical instruments
-
Thickness:
-
0.5-30mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
customize
-
Model Number:
-
JGS1 JGS2 JGS3
-
Color:
-
transparent
-
Tolerance:
-
+/-0.05mm to 0.1mm
-
Surface:
-
20/10--80/50
-
Size:
-
5-800mm customize
-
Transmission:
-
>90% or with AR/AF/AS
-
Coating:
-
Ar /AF/AS Coated
-
Surface Quality:
-
60/40 40/20 20/10

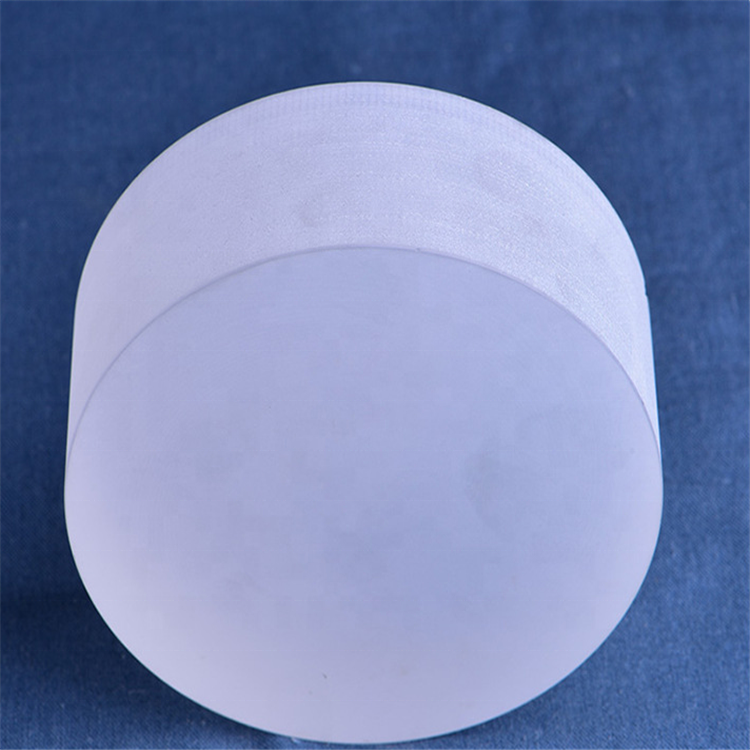

30mm thickness optical uv quartz glass fused silica blank disc JGS2 JGS1
Product Description
High precision JGS1 quartz glass window
Size&design: Accept customize according to different diameter ,thickness,length or sending your drawing.
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.

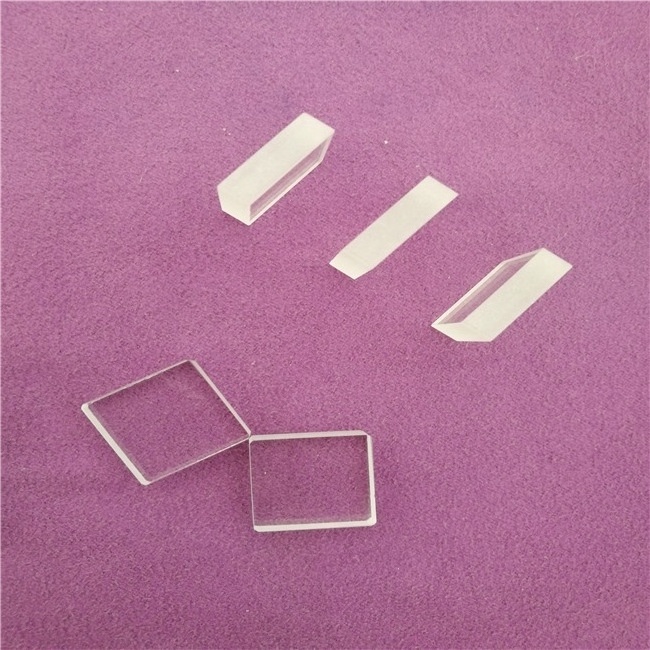

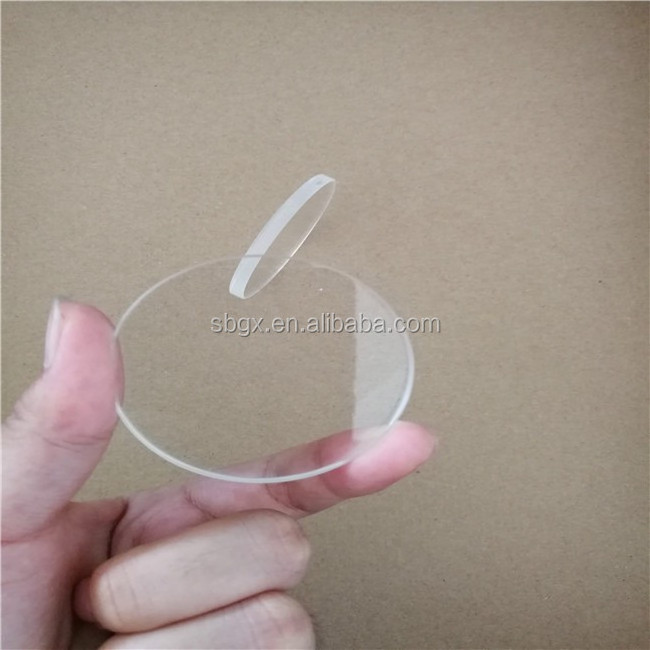

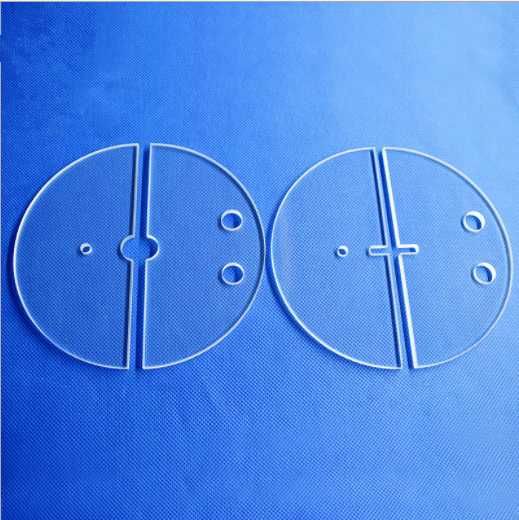

Detailed Images
