Quick Details
-
Model Number:
-
TS2520-0NM
-
Max. Current:
-
6A
-
Protect Level:
-
IP65, IP67
-
Electrical Endurance:
-
600,000 Cycles
-
Rated current:
-
6A/230V; 4A/380V
-
Certificate:
-
CCC CE
-
Insulation Resistance:
-
>=100MΩ
-
Insulation Voltage:
-
600V
-
Converntional Thermal Current:
-
10A
-
Mechnical Endurance:
-
Momentary 5,000,000; Latch:500,000
-
Mounting Type:
-
Screw Mounting
-
Color Option:
-
Red Green Yellow Blue White Black
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
600V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUPU
-
Model Number:
-
TS2520-0NM
-
Max. Current:
-
6A
-
Protect Level:
-
IP65, IP67
-
Electrical Endurance:
-
600,000 Cycles
-
Rated current:
-
6A/230V; 4A/380V
-
Certificate:
-
CCC CE
-
Insulation Resistance:
-
>=100MΩ
-
Insulation Voltage:
-
600V
-
Converntional Thermal Current:
-
10A
-
Mechnical Endurance:
-
Momentary 5,000,000; Latch:500,000
-
Mounting Type:
-
Screw Mounting
-
Color Option:
-
Red Green Yellow Blue White Black
-
Certification:
-
CE
Products Description

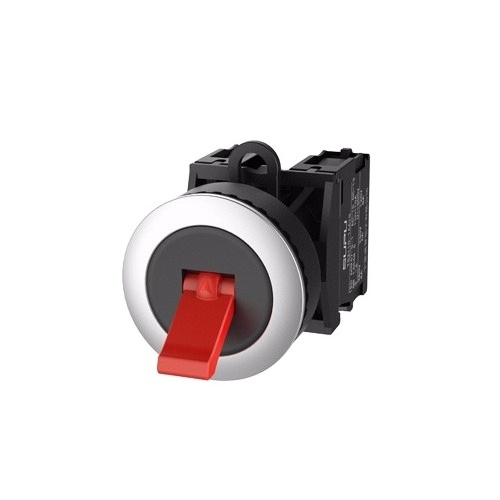

Plastic Toggle Switches
|
Contact Type
|
Order No (Complete)
|
Order No Single
|
||
|
|
TS2520-0NM❶❷-❸**
|
TS2020-0NM❶❷
|
||
|
MARKS
|
|
|
||
|
**=Contact Type
|
1NC=01, 2NC=02, 3NC=03,,1NO-1NC=11,1NO-2NC=12, 2NO-1NC=21
|
|
||
|
❶❷=Clor Code
|
10=Red, 60=Black
|
|
||
|
❸=Contact Code
|
Momentary=S, Squirm= R
|
|
||
|
|
|
|
|
|||
|
Insulation Votage
|
600V
|
Standard
|
GB14048.5; IEC 60947-5-1
|
|||
|
Rated Current
|
6A/230V
|
Storage Ambient Temperature
|
-45℃~80℃
|
|||
|
UIMP
|
2500V / 1Min
|
Usage Ambient Temperature
|
-25℃~55℃
|
|||
|
ITH
|
10A
|
Max. Contact Modules
|
6
|
|||
|
Insulation Resisitance
|
600V
|
Mounting Type
|
Screw Mounting
|
|||
|
Vibration Resistance
|
10....500Hz 5g
|
Module Conductor Cross Section
|
2.5m㎡/1.5m㎡ ( Contact / Light)
|
|||
|
Contacct Resistance
|
<=50mΩ
|
Mechnical Endurance
|
E-stop≥50,000; PushButton: Momentary≥5,000,000 & Latch≥500,000; Selector Switch/Key Switch≥500,000
|
|||
|
Electrical Endurance
|
600,000
|
Contact Rated Capacity
|
Squirm: AC-15 220/6A,380/14A,660V/2A; DC-13 24V/6A,48V/3A,110V/1A,220V/0.5A,440V/0.25A; Momentary: AC-15 220/2.5A,380/1.5A,660V/0.8A; DC13 24V/3.6A,48V/1.8A,110V/0.8A,220V/0.4A,440V/0.2A;
|
|||
