Quick Details
-
Brand Name:
-
SUNS
-
Model Number:
-
FS-61-SP-A
-
Max. Current:
-
10V
-
Operating Temperature:
-
-20~80℃
-
degree of protection:
-
IP65
-
Certification:
-
UL
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNS
-
Model Number:
-
FS-61-SP-A
-
Max. Current:
-
10V
-
Operating Temperature:
-
-20~80℃
-
degree of protection:
-
IP65
-
Certification:
-
UL

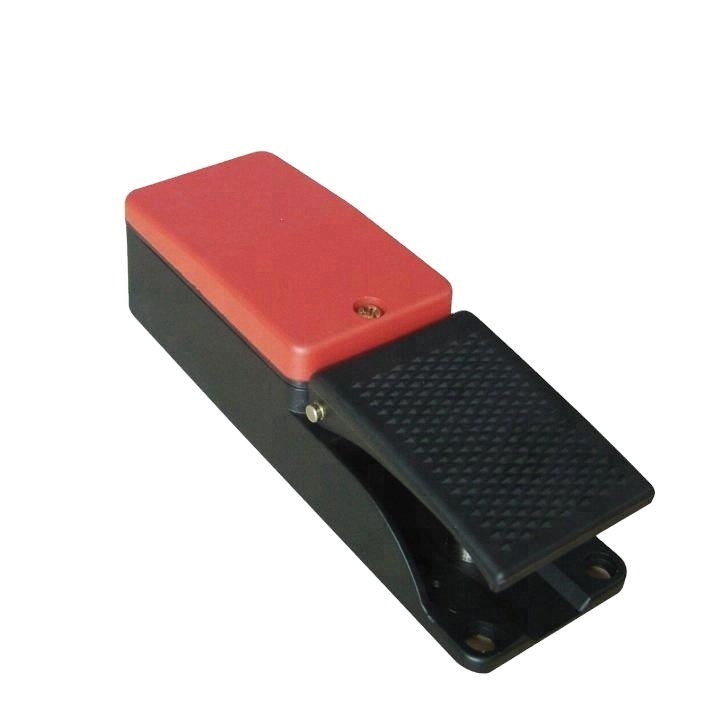

| FS61 SERIES FOOT SWITCHES | |
| Features: | |
| 1)Robust aluminum alloy die cast body | |
| 2)Choice of different type of contact blocks | |
| 3)Water-proof to IP68 | |
| 4)Galvanically separated contacts | |
| 5)Screw terminals with self-lifting clamps for easy wirting | |
| 6)Positive Opening of NC contacts | |
| 7)Safety reset option available | |
| 8)UL/CUL approval(E216958) | |
| 9)Threaded Hole available in:PG 13.5,m20x1.5 and 1/2NPT | |
| Specifications: | |
| Operating Frequency: | 60 ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 10A/600V AC A600/AC15 Q300/DC13 |
| Inrush Current | Complies with IEC947-5-1:AC15/DC 13 |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1.0×10 7 (operations) |
| Electrically 5×10 5 (operations) | |
| Operating Temperature: | about-30~+80°C(-22~176°F) |
| Degree of Protection: | IP65 |
