- Product Details
- {{item.text}}
Quick Details
-
Application:
-
LANDSCAPE
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Product Weight（kg）:
-
1.38
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
470-500
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 70
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ULED
-
Model Number:
-
UL-6W-COB-0600-G
-
Item Type:
-
Underground Lights
-
Dimension:
-
116x73 (mm) Diameter x Height
-
Cut out:
-
100 mm
-
Beam angle:
-

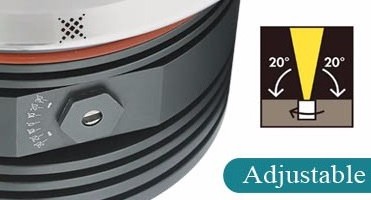

25°, 36° (beam direaction adjustable by hand at 20° at max)
-
IK rating:
-
IK09
-
Loading capacity:
-
2000 kgs
-
Insulation:
-
Class III
-
Driver:
-
Low voltage constant current output, excluding the transformer
-
Cable:
-
1PC rubber cable 1.5M H05RN-F 2x0.75mm square
Quick Details
-
Color Temperature(CCT):
-
2700K,3000K,4000K,6000K, Warm White
-
Warranty(Year):
-
3
-
Lamp Body Material:
-
Aluminum
-
Application:
-
LANDSCAPE
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Product Weight（kg）:
-
1.38
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
470-500
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 70
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ULED
-
Model Number:
-
UL-6W-COB-0600-G
-
Item Type:
-
Underground Lights
-
Dimension:
-
116x73 (mm) Diameter x Height
-
Cut out:
-
100 mm
-
Beam angle:
-
25°, 36° (beam direaction adjustable by hand at 20° at max)
-
IK rating:
-
IK09
-
Loading capacity:
-
2000 kgs
-
Insulation:
-
Class III
-
Driver:
-
Low voltage constant current output, excluding the transformer
-
Cable:
-
1PC rubber cable 1.5M H05RN-F 2x0.75mm square
Product Features
Product Features

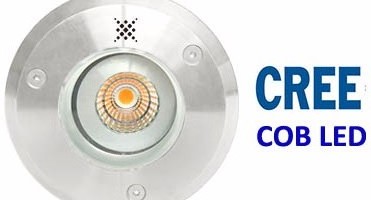

6w cob adjustable led in-ground driveway lights led floor tile light IP67 underground lamp
Data Sheet
Data Sheet
Detailed Pictures
Detailed Pictures

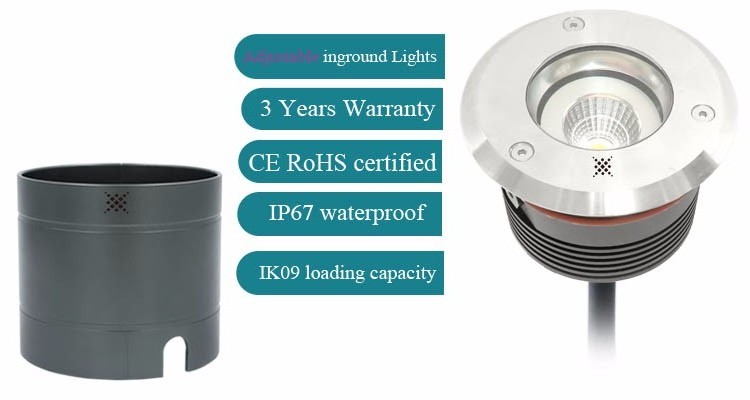

This adjustable direction inground light is widely for exterior or interior application, and with waterproof IP67 and IK09 loading capacity.
Illumination picture showcase
Light distribution cureve
Lux distance curve
Dimension
Dimension
Related products
Related products
Please click the picture to check this adjustable inground light series !
Application Pictures
Application Pictures
Company Introduction
Company Introduction
1.Are you a trade company or a manufacturer?
2.What is your delivery date?
3.What is your payment terms?
4.What's your delivery terms ?
5.What's your warranty ?
Please Click picture to return our home page to view more of our LED lighting fixtures series.
