Quick Details
-
Screen Size:
-
5.5 Inch
-
Weight:
-
<500g
-
Brand Name:
-
HCCTG
-
Model Number:
-
HCC-S60
-
Place of Origin:
-
Guangdong, China
-
Expand memory:
-
Micro SD(TF) Supports up to 128GB
-
Data communication:
-
WLAN/WWAN/BT/GPS
-
Dimensions:
-
166mm*77.5mm*22mm
-

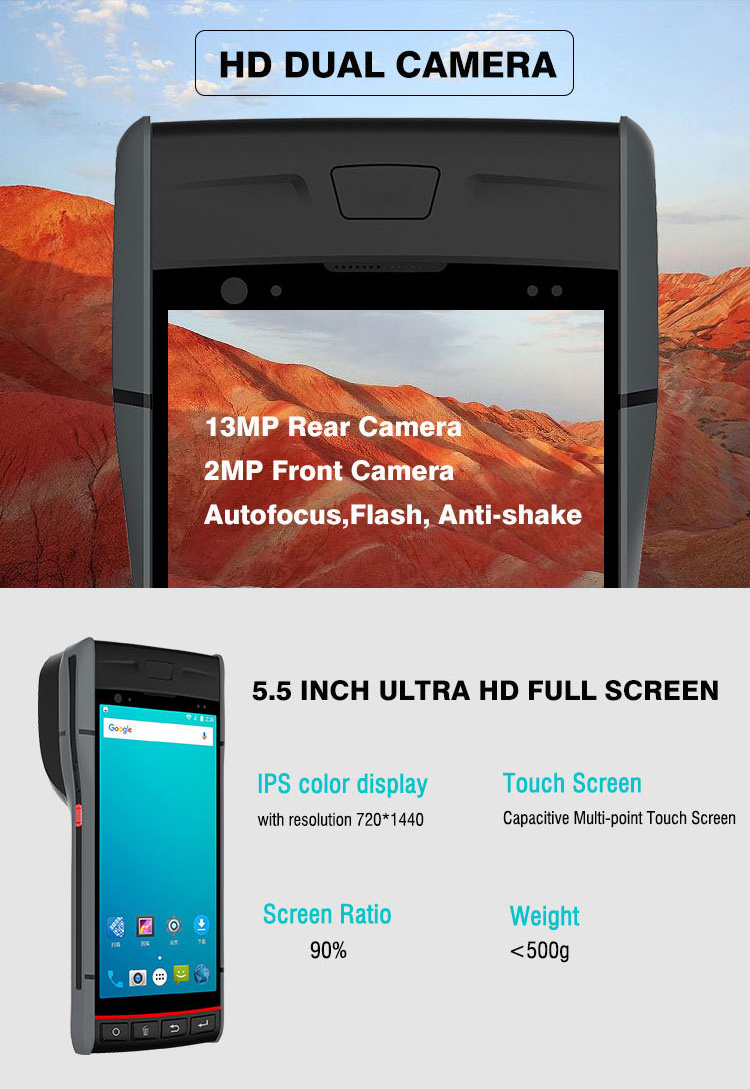

Display:
-
5.5 inch IPS color display with resolution 720*1440
-
Audio:
-
Speaker (mono), Microphone, Earpiece
-
Keypad:
-
Support touch screen soft keypad and physical keypad
-
Sensor:
-
Gravity Sensor,Vibration motor
-
Environment humidity:
-
5%RH--95%RH(no condensation)
-
Rolling test:
-
500*0.5m rolling for 6 sides
-
Product name:
-

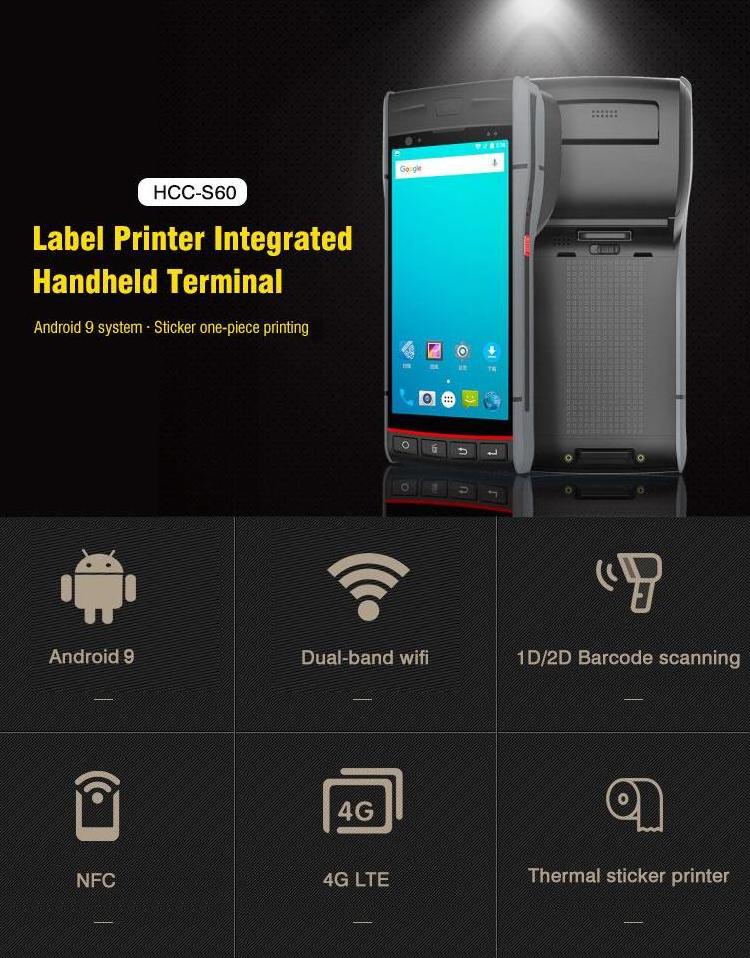

Internet Of Things Handheld Terminal
Quick Details
-
Operating System:
-
Android 9
-
Style:
-
Smartphone
-
Memory Capacity:
-
2GB+16GB Supports up to 3GB+32GB
-
Screen Size:
-
5.5 Inch
-
Weight:
-
<500g
-
Brand Name:
-
HCCTG
-
Model Number:
-
HCC-S60
-
Place of Origin:
-
Guangdong, China
-
Expand memory:
-
Micro SD(TF) Supports up to 128GB
-
Data communication:
-
WLAN/WWAN/BT/GPS
-
Dimensions:
-
166mm*77.5mm*22mm
-
Display:
-
5.5 inch IPS color display with resolution 720*1440
-
Audio:
-
Speaker (mono), Microphone, Earpiece
-
Keypad:
-
Support touch screen soft keypad and physical keypad
-
Sensor:
-
Gravity Sensor,Vibration motor
-
Environment humidity:
-
5%RH--95%RH(no condensation)
-
Rolling test:
-
500*0.5m rolling for 6 sides
-
Product name:
-
Internet Of Things Handheld Terminal
Product Presentation
|
WLAN
|
Dual-band 2.4GHz / 5GHz,
Supporting IEEE 802 a/b/g/n/ac protocol |
|
WWAN
|
2G: GSM (850/900/1800/1900MHz)
|
|
|
3G: WCDMA (850/900/1900/2100mhz)
|
|
|
4G: FDD:B1/B3/B4/B7/B8/B12/B20
|
|
|
TDD:B38/B39/B40/B41
|
|
BT
|
Support BT 2.1+EDR/3.0+HS/4.1+HS
Transmission distance 5-10 meters |
|
GPS
|
Support GPS, Galileo, Glonass, Beidou
|
|
TP
|
Corning Gorilla glass, supports multi-touch
Supported gloves and we thands |
|
|
Rechargeable polymer battery (3.8V 5200mAh) removable
|
|
|
Standby time >350 hours
|
|
|
Working time > 12 hours
|
|
|
Charging time 3-4H, Using standard power
adapter and data cable |
|
Expansion
Card slot |
PSAM x 2, Nano SIM card x 1 , TF card × 1
|
Optional Function

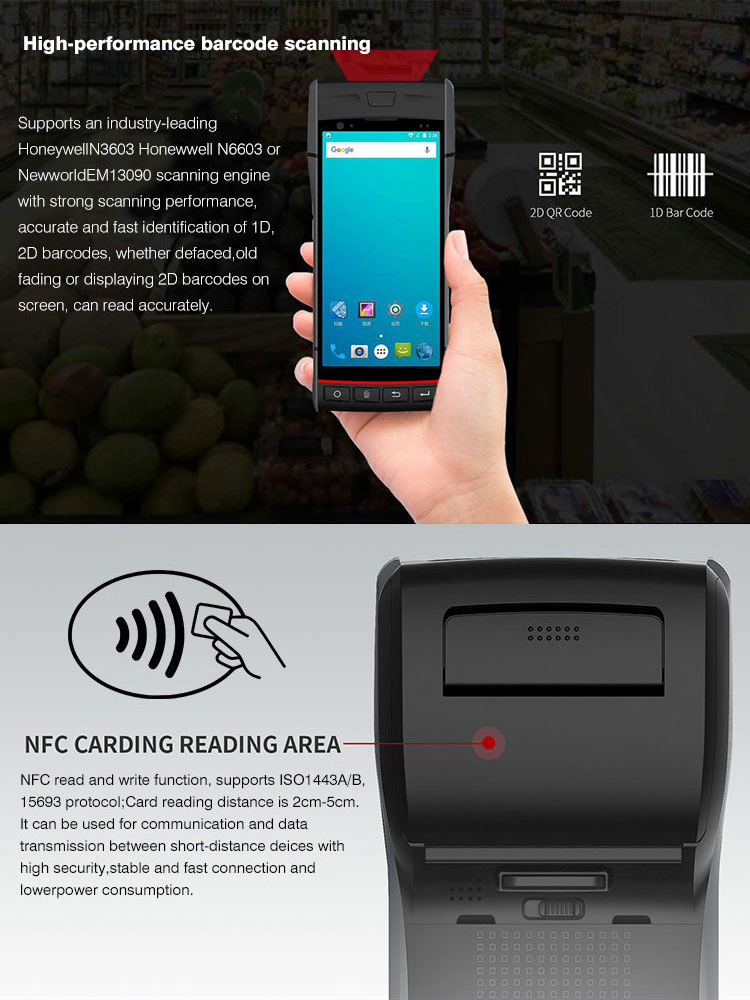

Barcode scanning
1D Barcode module (Honewell 4313)
2D Barcode module (Honewell 3603)
2D Barcode module (Honewell 6703)
NFC
HF :13.56MHZ, support ISO14443A protocol
2D Barcode module (Honewell 3603)
2D Barcode module (Honewell 6703)
NFC
HF :13.56MHZ, support ISO14443A protocol
Multiple Charging Dock
for battery
Battery
(3.8V 5200mah)
|
1D Linear scanner
|
Mindeo SE966
Honeywell N4313 |
|
1D Symbologies
|
Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber,Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,UCC/EAN-128, GS1 Databar, HIBC,
etc. |
|
2D Imager scanner
|
Newland EM3090
Honeywell N3603 Honeywell N6603 |
|
2D Symbologies
|
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code, etc.
|
|
Rear camera
|
8MP HD camera,Support auto focus,
Flash, Anti-shake, Macro shooting |
|
NFC Frequency
|
13.56MHz
|
|
Protocol
|
Support ISO14443A/B, 15693 agreement
|
|
Distance
|
2cm-5cm
|
|
TP
|
Corning Gorilla glass, supports multi-touch
Supported gloves and we thands |
|
Battery capacity
|
Rechargeable polymer battery (3.8V 4200mah) removable
|
|
|
Standby time >350 hours
|
|
|
Working time > 12 hours
|
|
|
Charging time ＜4H, using standard power adapter and data cable
|
|
Expansion
Card slot |
PSAM x 2, Micro SIM card x 1 , TF card × 1
|
|
Communication interface
|
Type-C USB x 1, OTG,POGO Pin x 1
|
|
Audio
|
Speaker (mono), Microphone, Earpiece
|
|
Keypad
|
Support touch screen soft keypad and physical keypad
|
|
Sensor
|
Gravity Sensor,Vibration motor
|
|
Input
|
English, Pinyin, Five strokes, Handwriting input, Support soft keypad
|
|
Language
|
Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc.
|
|
Operating temperature
|
-20℃ - 55℃
|
|
Storage temperature
|
-40℃ - 70℃
|
|
Drop specification
|
6 sides Supports 1.5 meters drops and 30 times
to the concrete within the operating temperature |
|
Standard Accessories
|
Adapter, Data cable, Protective film,
Instruction manual |
|

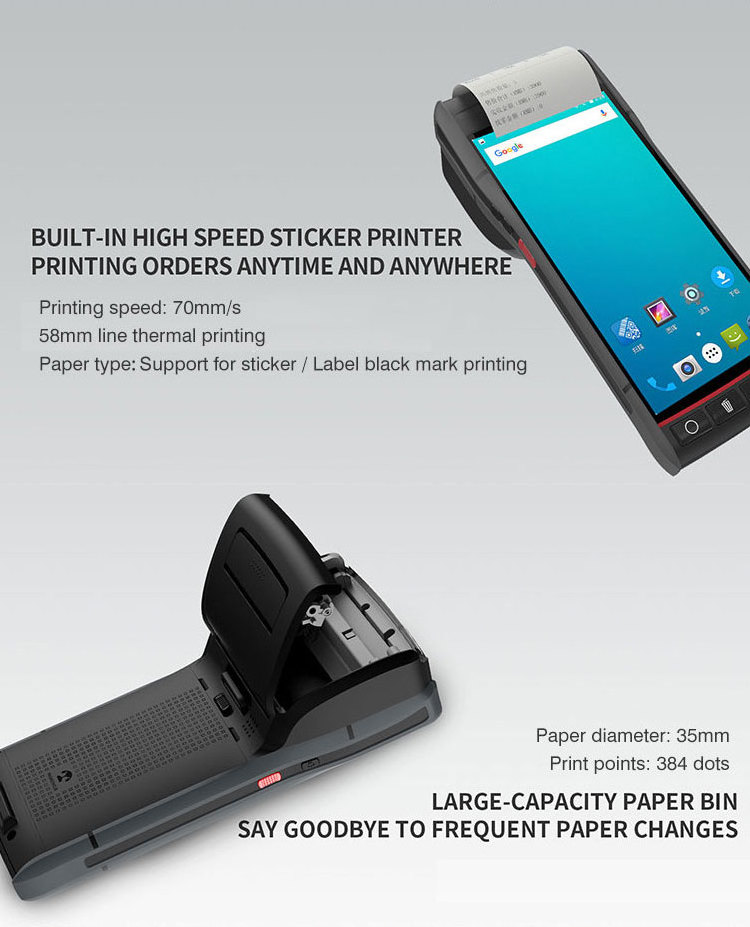

Printing speed
|
70mm/s
|
|
Print points
|
384 dots
|
|
Paper width
|
58mm
|
|
Paper diameter
|
35mm
|
|
Paper type
|
Support for Sticker / label Black mark printing
|
