Quick Details
-
Model Number:
-
DUC2-BGA
-
Type:
-
water analyzer
-
Battery:
-
No
-
Material:
-
ABS, enhanced ABS
-
Size:
-
3.2 inch
-
Usage:
-
sewage, wastewater
-
Product Name:
-
online BGA meter
-
Display Range:
-
0~3000000 cells/mL
-
Resolution:
-
1cells/mL
-
Current Output:
-
4~20mA
-
Communication:
-
RS485 Modbus RTU
-
Display:
-
3.2 inch
-
Data Recording:
-
10000 historical data
-
Dimension:
-
144*144*120mm
-
Certification:
-
ISO9001,CE
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Daruifuno
-
Model Number:
-
DUC2-BGA
-
Type:
-
water analyzer
-
Battery:
-
No
-
Material:
-
ABS, enhanced ABS
-
Size:
-
3.2 inch
-
Usage:
-
sewage, wastewater
-
Product Name:
-
online BGA meter
-
Display Range:
-
0~3000000 cells/mL
-
Resolution:
-
1cells/mL
-
Current Output:
-
4~20mA
-
Communication:
-
RS485 Modbus RTU
-
Display:
-
3.2 inch
-
Data Recording:
-
10000 historical data
-
Dimension:
-
144*144*120mm
-
Certification:
-
ISO9001,CE

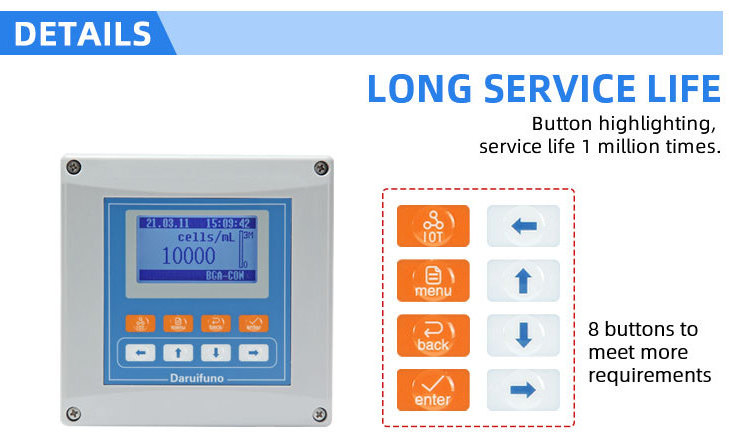

Features
●
Compatible with all DRFN digital BGA sensors;
●
The working status of the sensor can be queried, including reading the serial number;
●
Support a variety of installation methods;
●
Time and historical data recording function;
●
3.2-inch large LCD screen, easy operation;
●
User-friendly English language interface;
●
Password can be set to prevent misoperation;
●
2 SPST multi-function and settable relays to realize dosing control;
●
Two 0/4~20mA active current loop outputs;
●
RS485 interface, Modbus RTU communication protocol;
●
IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
●
Separately have a list of controller and sensor settings for quick and detailed parameter setting.
Specifications
|
Product Name
|
Digital BGA Meter
|
|
Product Model
|
DUC2-BGA
|
|
Brand Name
|
Daruifuno
|
|
Display Rang
|
0~3000000cells/mL
|
|
Resolution
|
1cells/mL
|
|
Relay Control
|
2 settable SPST relays with a maximum load of 3A/250VAC
|
|
Analog Current Output
|
2 settable 0/4~20mA active current loop outputs, max load 1000Ω
|
|
Communication Method
|
RS485 interface; MODBUS RTU; support JSON text data format
|
|
Display Screen
|
128*64 LCD, adjustable backlight mode, adjustable display rate
|
|
Configuration Information
|
Power off protection, parameters are retained indefinitely
|
|
Time/Data Record
|
Record 10000 historical data
|
|
Maintenance Records
|
Last 100
|
|
Operating Temperature
|
0～60℃，RH<95% ( no condensation)
|
|
Storage Temperature
|
-20～70℃, RH<55% ( no condensation, precision instruments)
|
|

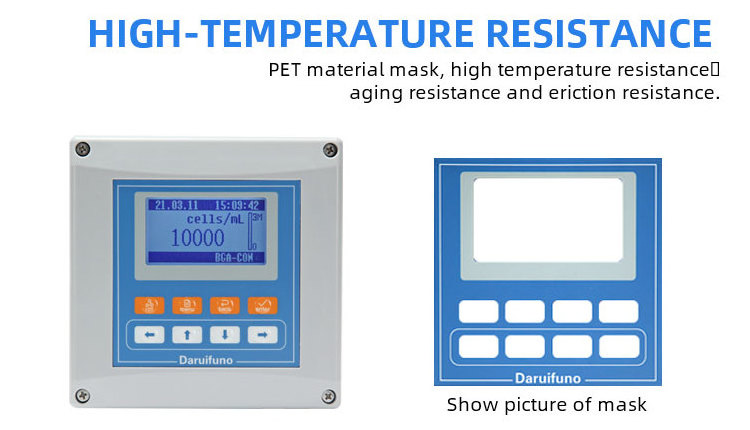

Shell Material
|
Enhanced ABS
|
|
Protection Grade
|
IP66
|
|

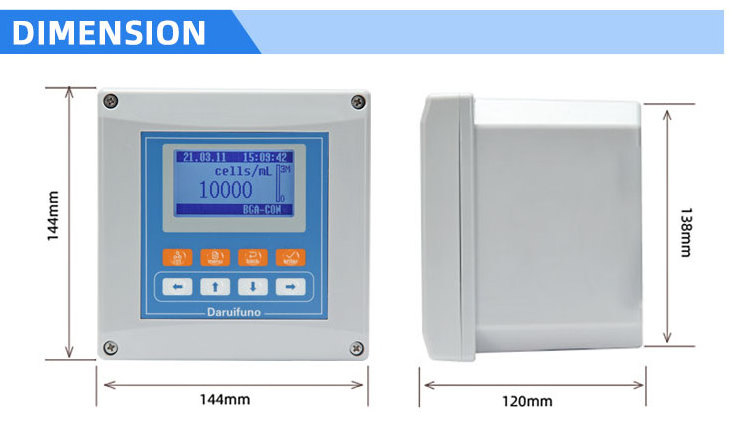

Dimension
|
144*144*120mm
|
|
Mounting Method
|
Wall mounting, pipe clamping, panel (hole size 138*138 mm)
|
|
Electrical Interface
|
The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
|
|
Power Supply
|
18~36V DC or 100~240V AC
|
|
Power Consumption
|
7W
|
|
Weight
|
800g
|
Transportation
