Quick Details
-
Brand Name:
-
JLL
-
Model Number:
-
s-200-12
-
Output Current:
-
16.6A, 16.6A
-
Brand:
-
JLL
-
Model:
-
s-200-12
-
Output Frequency:
-
90KHZ
-
Product Name:
-
Swtiching Power Supply
-
Certification:
-
CE ROHS
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Efficiency:
-
>85%
-
Ripple/noise:
-
<80MV
Quick Details
-
Input Voltage:
-
85V~264V
-
Output Voltage:
-
12V
-
Place of Origin:
-
Jiangsu, China, Jiangsu,China
-
Brand Name:
-
JLL
-
Model Number:
-
s-200-12
-
Output Current:
-
16.6A, 16.6A
-
Brand:
-
JLL
-
Model:
-
s-200-12
-
Output Frequency:
-
90KHZ
-
Product Name:
-
Swtiching Power Supply
-
Certification:
-
CE ROHS
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Efficiency:
-
>85%
-
Ripple/noise:
-
<80MV
Product Paramenters
|
DC Output
|
DC Voltage: 12V
|
|
|
DC Current : 16.6A
|
|
|
Ripple & Noise: 80MV
|
|
|
DC Adjustable Range: ±10% Rated Voltage
|
|
|
Voltage Tolerance: ±2.0%
|
|
|
Line Regulation: ±0.5%
|
|
|
Load Regulation: ±1%
|
|
|
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
|
|
AC Input
|
AC Voltage Range: 85-264VAC
|
|
|
Frequency Range: 47-63Hz
|
|
|
Efficiency:>85%
|
|
|
AC Current:0.86A/115V 0.4A/230V
|
|
|
AC Inrush Current:20A/115V 40A/230V
|
|
|
Leakage Current< 0.5mA /240VAC
|
|
Protection
|
Over-load: 105%-150% hiccup mode,Auto-recovery
|
|
|
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
|
|
|
Over-temp. : Shut down O/P voltage, Auto-recovery
|
|
Environment
|
Working temp.: -10~ +60C° (Refer to output load derating curve)
|
|
|
Working Humidity:20 ~ 90% RH, non-condensing
|
|
|
Storage Temp.: -10~ +60C°
|
|
|
Storage Humidity: 10 ~ 95% RH
|
|
Safety
|
Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
|
|
|
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
|
Safety standards: CE,RoHS,FCC,ISO9001
|

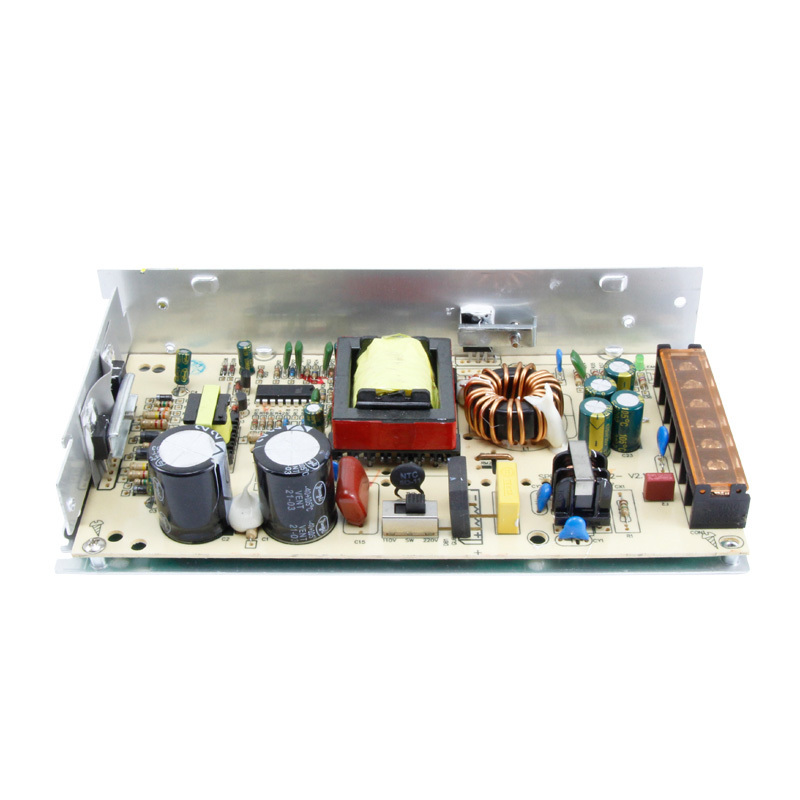

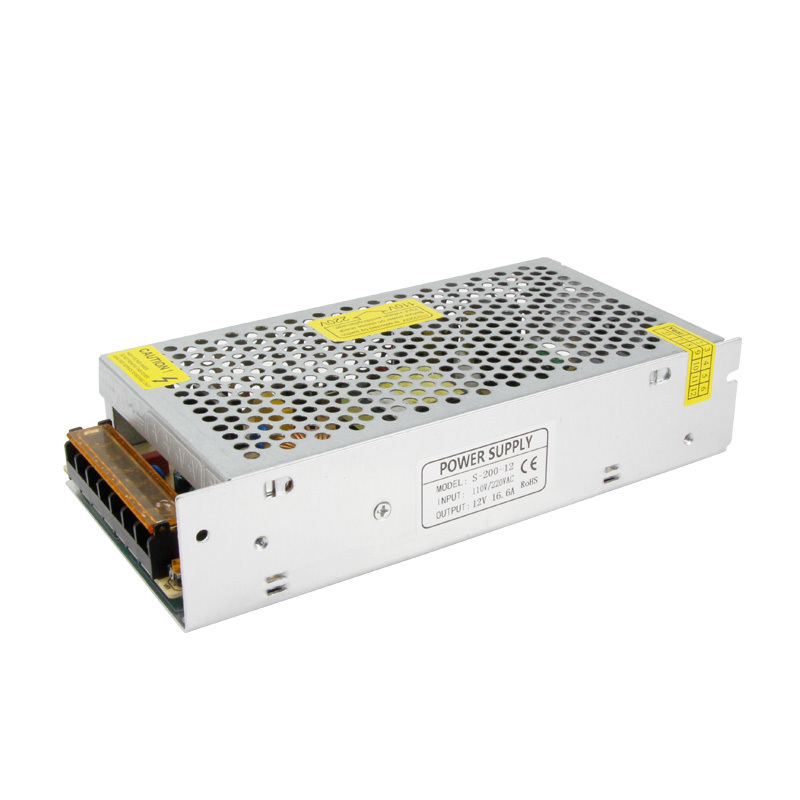

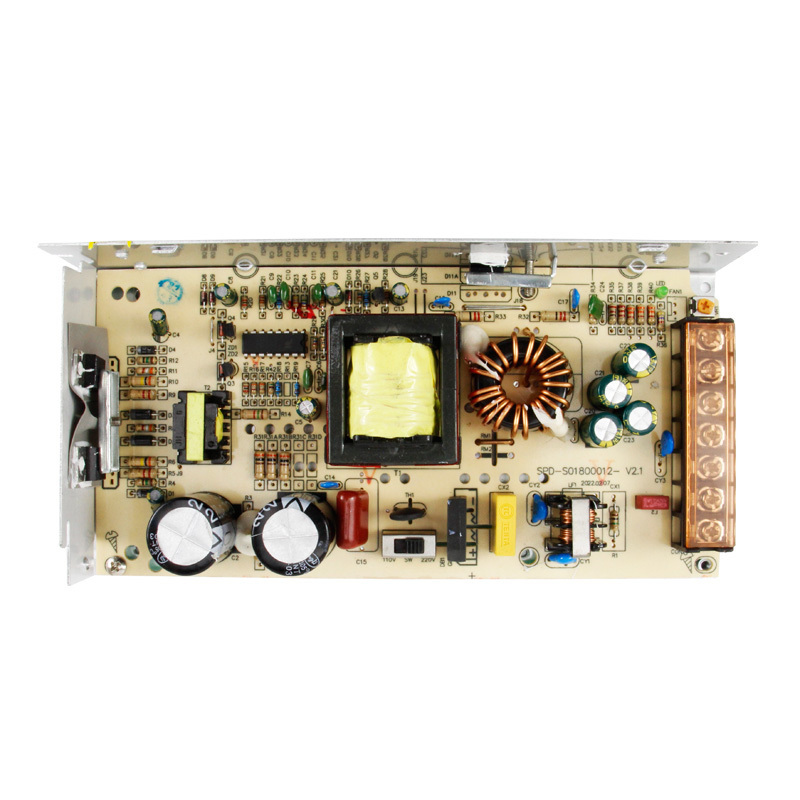

Details Images
Usage Scenario
