Quick Details
-
Model Number:
-
MSD-CC-40W
-
Output Frequency:
-
50/60Hz
-
EMC:
-
led driver emc
-
Net Weight:
-
120g
-
Size:
-
142*47*28mm(L*W*H)
-
Customized:
-
OEM&ODM
-
Working temp:
-
-25℃~+70℃
-
Flicker free:
-
Ripple<3%
-
PF:
-
>0.95
-
Type:
-
Class 2 constant current
-
Protections:
-
Short circuit/ Over voltage/ Over temperature
-
Certification:
-
CE ROHS SAA TUV
-
Luminous Efficacy(lm/w):
-
100
Quick Details
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bright Star
-
Model Number:
-
MSD-CC-40W
-
Output Frequency:
-
50/60Hz
-
EMC:
-
led driver emc
-
Net Weight:
-
120g
-
Size:
-
142*47*28mm(L*W*H)
-
Customized:
-
OEM&ODM
-
Working temp:
-
-25℃~+70℃
-
Flicker free:
-
Ripple<3%
-
PF:
-
>0.95
-
Type:
-
Class 2 constant current
-
Protections:
-
Short circuit/ Over voltage/ Over temperature
-
Certification:
-
CE ROHS SAA TUV
-
Luminous Efficacy(lm/w):
-
100

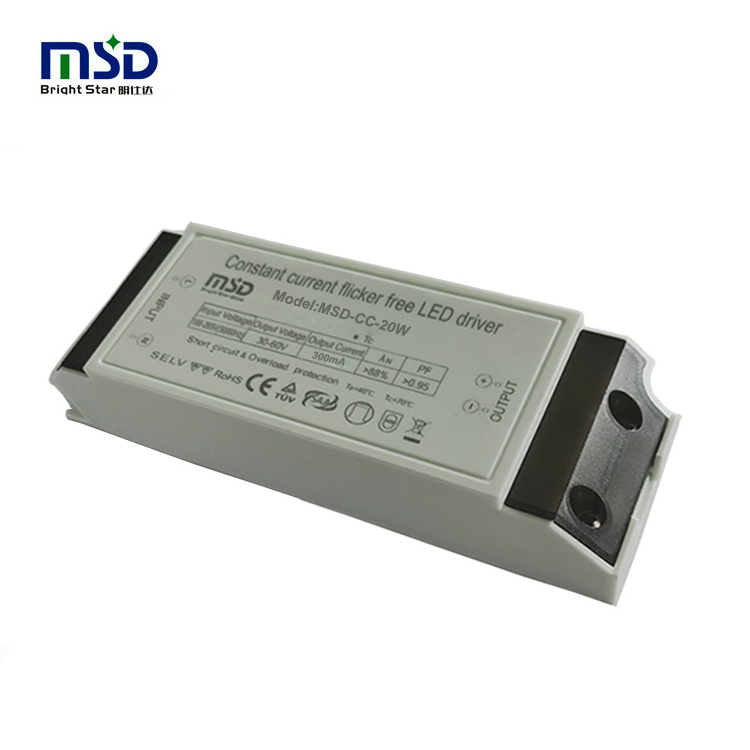

3W 9W 12W 20W 30W 40W 50W 60W indoor flicker free led lighting drivers
Product Description
| Model | MSD-CC-40W | ||
| Input | Voltage Range | 100-265V AC | |
| Frequency range | 47-63Hz | ||
| Powerr factor(PF) | PF≥0.98/120VAC PF≥0.95/230VAC@Full loading | ||
| AC Current(Max.) | 0.41A | ||
| Leakage current | <0.5mA | ||
| Output | Dc output Voltage | 30-60V DC | 20-40V DC |
| Dc output current | 650mA | 1000mA | |
| Current precision | ±5% | ||
| Full Load Efficiency(Typ.) | 88% | ||
| Rated Power | 40W | ||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | |
| Over load | ≤ 115% | ||
| Protection Class | II | ||
| Fireproof | Yes | ||
| Others | Certificates | CE/RoHS/TUV/SAA/ETL | |
| Market | Europe&Australia&American and Others | ||
| Weight | 150g | ||
| Dimension | 142*48*30mm | ||
| Package | 415*285*195mm/24pcs/CTN | ||
