Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANDI
-
Dimension(L*W*H):
-
420*360*460
-
Weight:
-
27
-
Rated power/speed:
-
3600
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

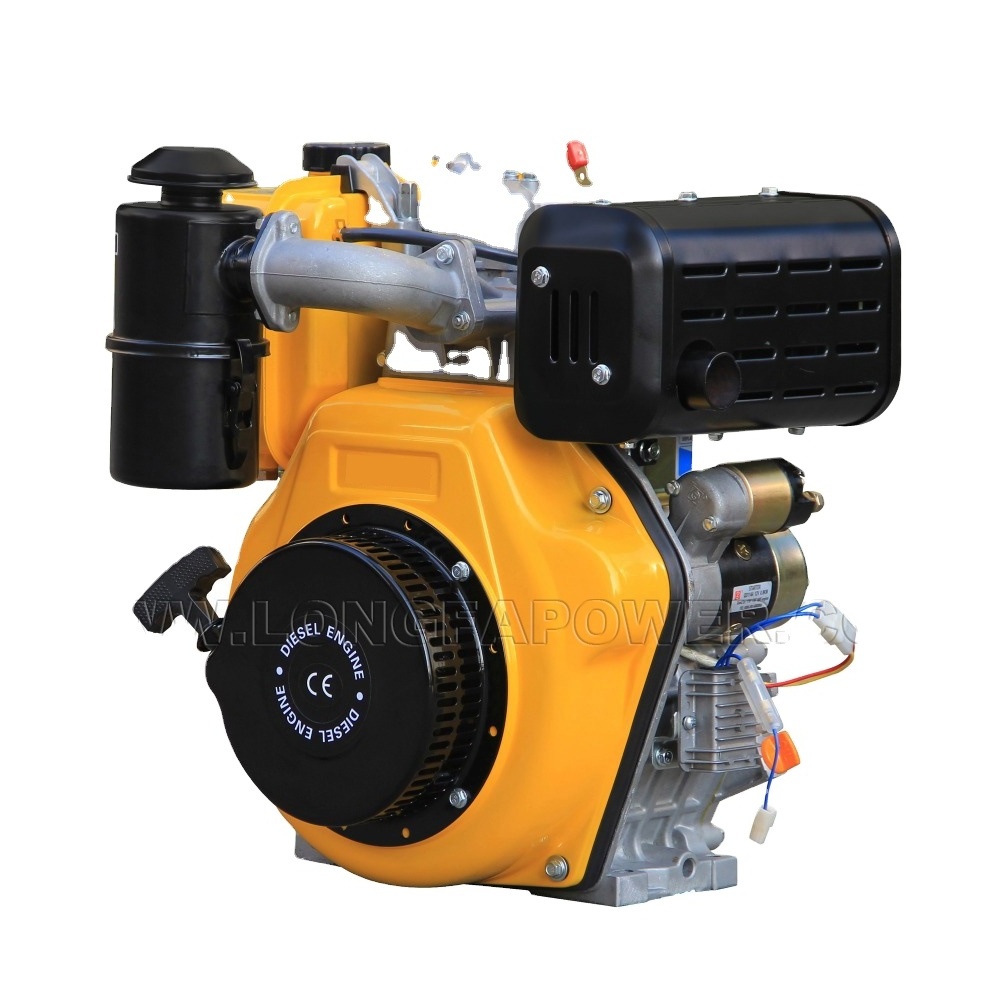

very mini small powerful 4 stroke diesel engine for sale
-
Key Words:
-
Diesel Engine
-
Item:
-
170F/178F/186F
-
Power Output:
-
4.HP-10HP
-
Package:
-
Strong Carton Package
-
Certificate:
-
CE / SONCAP / ISO9001
-
OEM:
-
Available
-
Model Number:
-
LF170F
-
Certification:
-
ISO9001
Quick Details
-
Displacement:
-
70CC
-
Emission Standard:
-
Euro 2
-
Power:
-
6HP
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANDI
-
Dimension(L*W*H):
-
420*360*460
-
Weight:
-
27
-
Rated power/speed:
-
3600
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
very mini small powerful 4 stroke diesel engine for sale
-
Key Words:
-
Diesel Engine
-
Item:
-
170F/178F/186F
-
Power Output:
-
4.HP-10HP
-
Package:
-
Strong Carton Package
-
Certificate:
-
CE / SONCAP / ISO9001
-
OEM:
-
Available
-
Model Number:
-
LF170F
-
Certification:
-
ISO9001
| NAME | ITEM | LFD170F | LFD178F/FA | LFD186F/FA | |||
| Diesel Engine | EngineType | Single cylinda;4-stroke;air-cooled diesel engine | |||||
| Combustion system | Direct Injection | ||||||
| Bore x Stroke(mm) | 70x55 | 78x62/78x64 | 86x70/86x72 | ||||
| Displacement(CC) | 211 | 296/305 | 406/418 | ||||
| Engine Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Maximum Output(hp) | 3.8 | 4.2 | 5.7 | 7 | 9 | 10 | |
| Continuous Output(hp) | 3.4 | 3.8 | 5.2 | 6 | 8.2 | 9 | |
| Power take off | Crankshaft or camshaft(camshaft PTO rpm is1/2) | ||||||
| Start System | Recoil or electric(optional) | ||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | ||||
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 | ||||
| Dimensions( Lx Wx H)(mm) | 420X360X460 | 440X370X480 | 480X420X530 | ||||
| Net Weight (recoil)(kg) | 27 | 33 | 48 | ||||
| Net Weight (electric)(kg) | 32 | 38 | 53 | ||||
| Fuel type | 0#,-10#,-20# | ||||||
| Lube oil type | CD Grade or SAE 10W-30,SAE 15W-40 | ||||||
| Option | Oil bath air cleaner | ||||||
