Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3KW or 4.5 or 6 or 7.5 or 9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YuanNuo
-
Voltage:
-
380V,50HZ (220V, 50HZ)
-
Dimension(L*W*H):
-
330*1840*1850mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1500
-
Core Components:
-
spindle, inverter
-
transmission:
-
two module rack and pinion
-
software:
-
artcam JDPaint type3 etc.
-
suit for:
-
wood,mdf,plywood,acrylic,plastic,pvc,metal,stone,glass,etc
-
guide system:
-
Taiwan HIWIN square linear rails
-
driving system:
-
high subdivision stepper motor
-
color:
-
optional
-
Weight:
-
1500kgs
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-

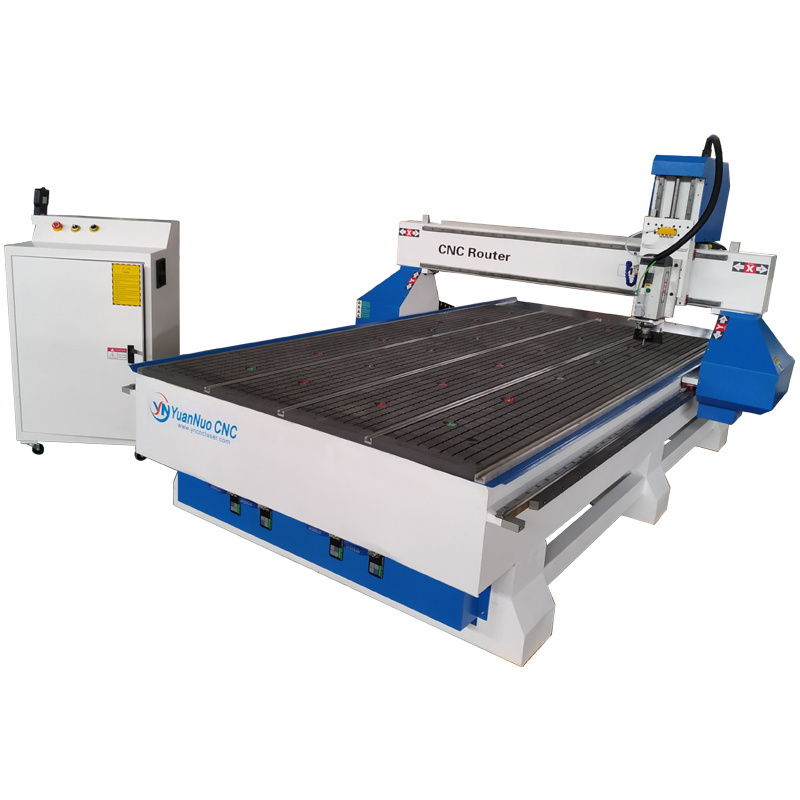

CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3KW or 4.5 or 6 or 7.5 or 9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YuanNuo
-
Voltage:
-
380V,50HZ (220V, 50HZ)
-
Dimension(L*W*H):
-
330*1840*1850mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1500
-
Core Components:
-
spindle, inverter
-
transmission:
-
two module rack and pinion
-
software:
-
artcam JDPaint type3 etc.
-
suit for:
-
wood,mdf,plywood,acrylic,plastic,pvc,metal,stone,glass,etc
-
guide system:
-
Taiwan HIWIN square linear rails
-
driving system:
-
high subdivision stepper motor
-
color:
-
optional
-
Weight:
-
1500kgs
- Whole seamless steel industrial machinery structure with high durability
- High configuration: two module rack and pinion instead of ball screw, Taiwan square linear guide, high quality inverter, imported bearing, high density vacuum table with great suction strength guarantee excellent stability, precision, low noise and long life.
- Configured practical and easily –learned software with the function of breakpoint memory, compatible with CAD/CAM software, such as Type3 / Artcam / Castmate/ Mastercam / Artcut / Coredraw etc.
- Adopt unique intelligent prediction algorithm, can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
- Make full use of potential capability to achieve high speed processing , curve-linear synchronous with high accuracy .
- Durable waterproof and dustproof on all XYZ axis.
- OEM is available as customer’s requirements for machine size and system
| 1.How to make order: | |
| 1.1 |
Please inform us more information about your work, such as:
what is the materials you want to process, the work is engrave or cut or others The max size of the materials: Length*wideth*thickness |
| 1.2 |
Quotation:
According to your requirement, we will suggest the most suitable machines, and quoted the most competitive price with best quality. |
| 1.3 |
Deep communication:
Then we talk about the details, such as specification, accessories configuration included, parameters, cooperation terms, shipping things etc. Fix everything and avoid any misunderstanding. |
| 1.4 |
Placing order:
If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures. |
| 1.5 |
Strat to produce:
As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc. Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery. |
| 1.6 |
Delivery:
After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom |
| 1.7 |
Docusments:
After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc. |
| PAYMENT | |
| 1 | T/T---the most popular and convenient method |
| 2 | Alibaba trade assurance---place order online, customer get full protection |
| 3 | L/C---For big order could accept L/C payment |
| 4 | Western union---for small parts under 1000USD |
| SHIPPING | |
| 1 | Usually by sea, could use LCL or full container as your choice |
| 2 | By air, cost about 3~4 days, depends on different countries |
| 3 | By DHL or TNT or FEDEX etc., cost about 5-7 days. |
| GAURATEE AND AFTER SALE SERVICE | |
| 1 |
One year guarantee for whole machine under normal use
|
| 2 | Supply full englishh manual and operating video on how to use step by step, easy to learn |
| 3 | Supply 24 hours online service by phone,skype,MSN, Romot or email |
| 4 | If need, customer could come to our factory for detailed free training |
| 5 |
If need, could also send engineer to your place for training, just customer will stand
cost for engineer living, ticket etc. |
