Quick Details
-
Weight:
-
13 kg
-
Power:
-
150W
-
Product name:
-

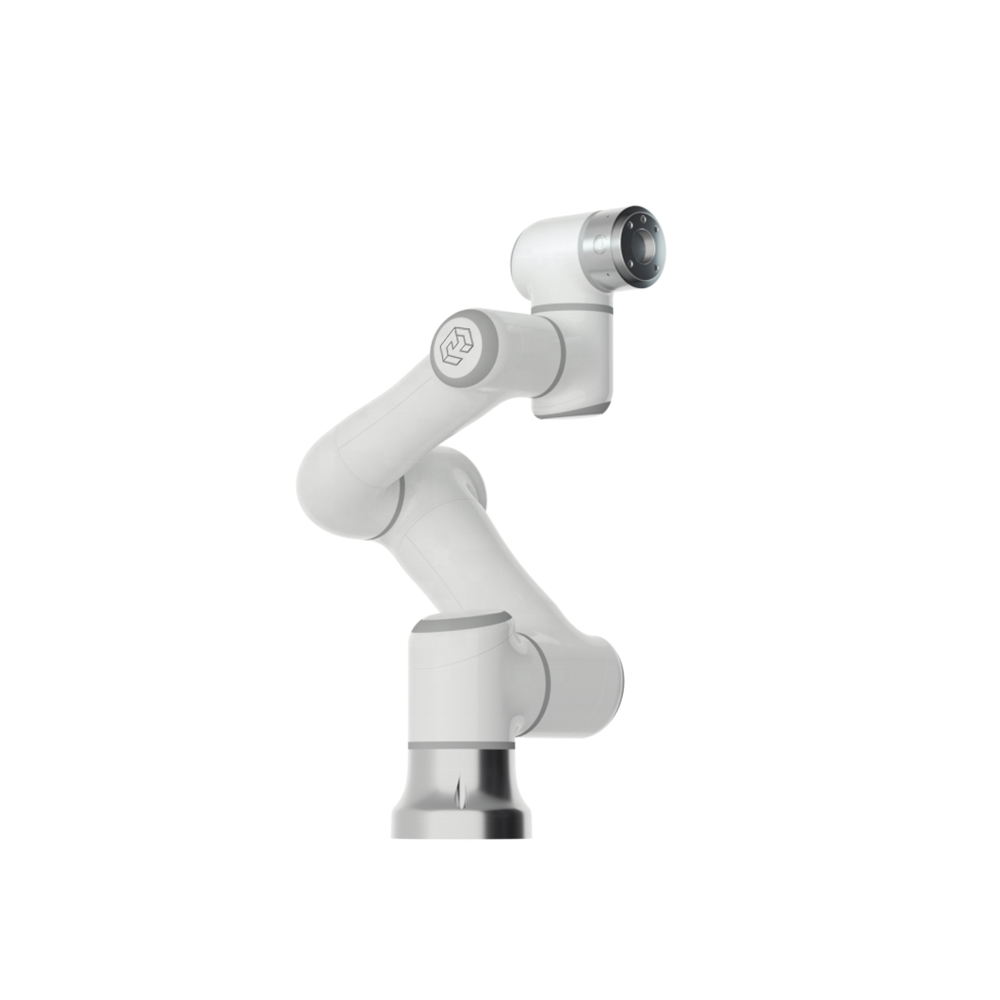

Robot Arm
-
Keyword:
-
6 Axes Industrial Robotic Arm
-
Brand:
-
ELITE
-
Application:
-
Industrial Automatic
-
Feature:
-
High Efficent Handling
-
Advantage:
-
Cost Save High Efficiency
-
Action Type:
-
Multi-joint
-
Maximum Reach radius:
-
624mm
-
Usage:
-
Production Line
-
Payload:
-
3 kg
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ELITE
-
Weight:
-
13 kg
-
Power:
-
150W
-
Product name:
-
Robot Arm
-
Keyword:
-
6 Axes Industrial Robotic Arm
-
Brand:
-
ELITE
-
Application:
-
Industrial Automatic
-
Feature:
-
High Efficent Handling
-
Advantage:
-
Cost Save High Efficiency
-
Action Type:
-
Multi-joint
-
Maximum Reach radius:
-
624mm
-
Usage:
-
Production Line
-
Payload:
-
3 kg
|
Model
|
|
EC63
|
EC66
|
EC612
|
|||
|
Degrees of freedom
|
|
6
|
|
|
|||
|
Weight
|
|
13kg
|
17.5kg
|
33.5kg
|
|||
|
Payload
|
|
3kg
|
6kg
|
12kg
|
|||
|
Working radius
|
|
624mm
|
914mm
|
1304mm
|
|||
|
Repeatability
|
|
±0.03mm
|
|
|
|||
|
Joints range
|
|
±360°
|
|
|
|||
|
Max joints speed
|
Joint 1
|
144°/s
|
144°/s
|
120°/s
|
|||
|
|
Joint 2
|
144°/s
|
144°/s
|
120°/s
|
|||
|
|
Joint 3
|
180°/s
|
180°/s
|
144°/s
|
|||
|
|
Joint 4
|
224°/s
|
224°/s
|
180°/s
|
|||
|
|
Joint 5
|
224°/s
|
224°/s
|
180°/s
|
|||
|
|
Joint 6
|
224°/s
|
224°/s
|
180°/s
|
|||
|

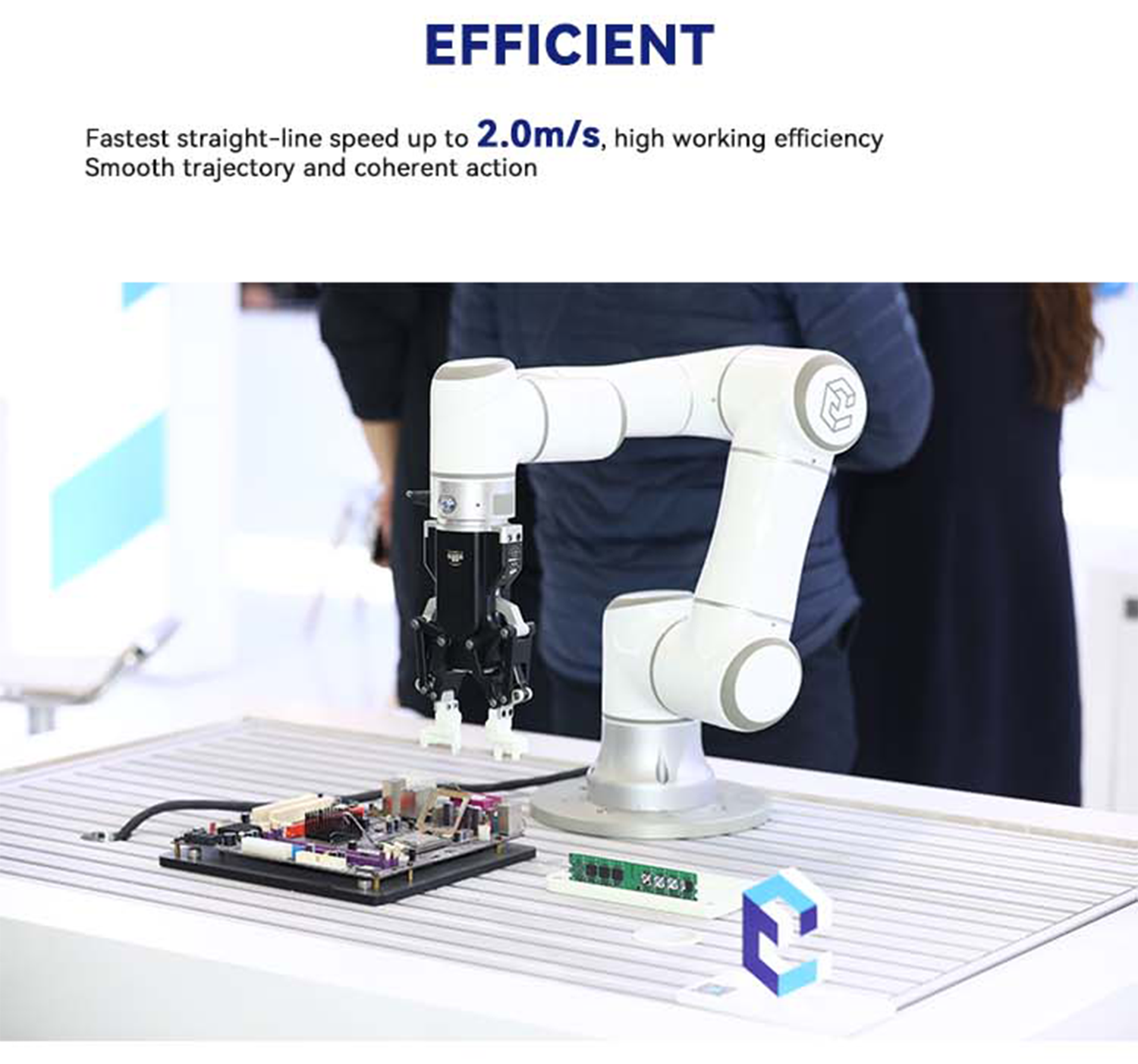

TCP speed
|
|
2.0 m/s
|
2.8 m/s
|
3.2 m/s
|
|||
|
IP rating
|
|
IP54
|
|
|
|||
|
Ambient temperature
|
|
0-50 ℃
|
|
|
|||
|
Relative humidity
|
|
5％～95％(No Condensation)
|
|
|
|||
|
Power consumption
|
|
150w
|
250w
|
500w
|
|||
|
Mounting
|
|
Any angle
|
|
|
|||
|
High speed digital input
|
|
N/A
|
|
|
|||
|
Tool I/O
|
|
2 x DI, 2 x DO, 1 x AI, 1 x AO
|
|
|
|||
|
Tool I/O power supply
|
|
24 V, 2A (two pin mode), 1A (one pin mode)
|
|
|
|||
|
Tool communication
|
|
RS485
|
|
|
|||
|
Footprint
|
|
Ø 128 mm
|
Ø 150 mm
|
Ø 200 mm
|
|||
|
Cable length
|
|
5.5m
|
|
|
|||
|
Power supply
|
|
48V
|
|
|
|||
|
Compliance standard
|
|
ISO 10218
|
|
|
|||
|
Tool plate connector
|
|
12-pin design
|
|
|
|||
|
Status Indicator
|
|
End IO connector light
|
|
|
|||
