Quick Details
-
Positioning Accuracy (mm):
-
0.2 mm
-
Number of Axes:
-
Multi
-
Travel (X Axis)(mm):
-
150 mm
-
Travel (Y Axis)(mm):
-
1000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JONHV
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
300*2000 mm
-
Weight (KG):
-
2500
-
Product name:
-

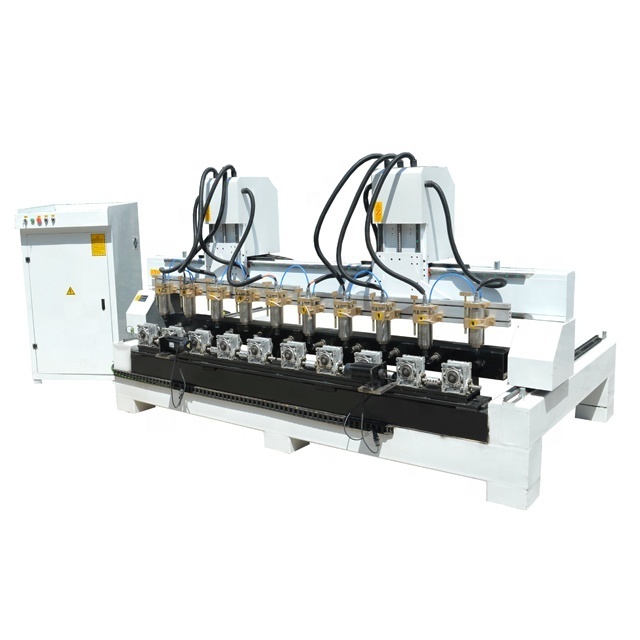

JONHV Multi Spindle 3D Sculpture Foam/ Wood 10-axis CNC Machine
-
Rotation Axis Chuck Diameter:
-
150 mm
-
Rotation Axis Length:
-
1000 mm
-
Spindle Motor:
-
2.2 kw * 10
-
Spindle Rotating Speed:
-
0-24000 rpm/min
-
Power:
-
3.0 kw * 2
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Transmission:
-
XY-axis:rack
-
Keywords:
-
Cnc Wood Router Engraver
Quick Details
-
Working Table Size(mm):
-
150*1000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.2 mm
-
Number of Axes:
-
Multi
-
Travel (X Axis)(mm):
-
150 mm
-
Travel (Y Axis)(mm):
-
1000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JONHV
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
300*2000 mm
-
Weight (KG):
-
2500
-
Product name:
-
JONHV Multi Spindle 3D Sculpture Foam/ Wood 10-axis CNC Machine
-
Rotation Axis Chuck Diameter:
-
150 mm
-
Rotation Axis Length:
-
1000 mm
-
Spindle Motor:
-
2.2 kw * 10
-
Spindle Rotating Speed:
-
0-24000 rpm/min
-
Power:
-
3.0 kw * 2
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Transmission:
-
XY-axis:rack
-
Keywords:
-
Cnc Wood Router Engraver
Product Description
- The machine body are steel structure, solid and non-deformed, good rigidity, high precision .
- Adopt to imported high precision helical rack drive, to ensure the machine runs stably with high accuracy.
- Adopt domestic famous water-cooled brushless frequency spindle motor, with a big tough, strong cutting, low noise, can be a long continuous work.
- Good structural design of the whole machine, ensure longer service life. .
- Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
- Compatility, compatible Type3/ Artcam / Castmate / Wentai, and so on a variety of CAD/CAM design software.
| Rotation Axis Chuck Diameter | 150 mm |
| Rotation Axis Length | 1000 mm |
| Chuck Type | Front Four Claws, Back Thimble |
| Max Traveling Speed | 20 m/min |
| Max Carving Speed | 8 m/min |
| Max Feed Height | 300 mm |
| Working Accuracy | 0.2 mm |
| Repositioning Accuracy | 0.05 mm |
| Software System | 4-Axis CNC Router Control System |
| Work Voltage | 220V / 380V |
| Driver Motor | 86-450 Stepper Motor |
| Spindle Motor | 2.2 kw * 10 |
| Spindle | Changzhou Changsheng / Jiesite |
