Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
616 x 486 x 528mm
-
Weight:
-
57.5
-
Rated power/speed:
-
14kW/3600rpm
-
Marketing Type:
-
Hot Product
-
Model & HP:
-
TD2V80(21HP)
-
Bore x Stroke:
-
80 x 79mm
-
Rated Output:
-
14kW(19HP)@3600rpm
-
Fuel Tank:
-
No
-
Available Option:
-
Water tank, key shaft
-
Lead time:
-
Regular 30 days
-
Certification:
-
CE
Quick Details
-
Displacement:
-
794cc, 794cc
-
Emission Standard:
-
Euro 3
-
Power:
-
14kW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
616 x 486 x 528mm
-
Weight:
-
57.5
-
Rated power/speed:
-
14kW/3600rpm
-
Marketing Type:
-
Hot Product
-
Model & HP:
-
TD2V80(21HP)
-
Bore x Stroke:
-
80 x 79mm
-
Rated Output:
-
14kW(19HP)@3600rpm
-
Fuel Tank:
-
No
-
Available Option:
-
Water tank, key shaft
-
Lead time:
-
Regular 30 days
-
Certification:
-
CE
Product Description

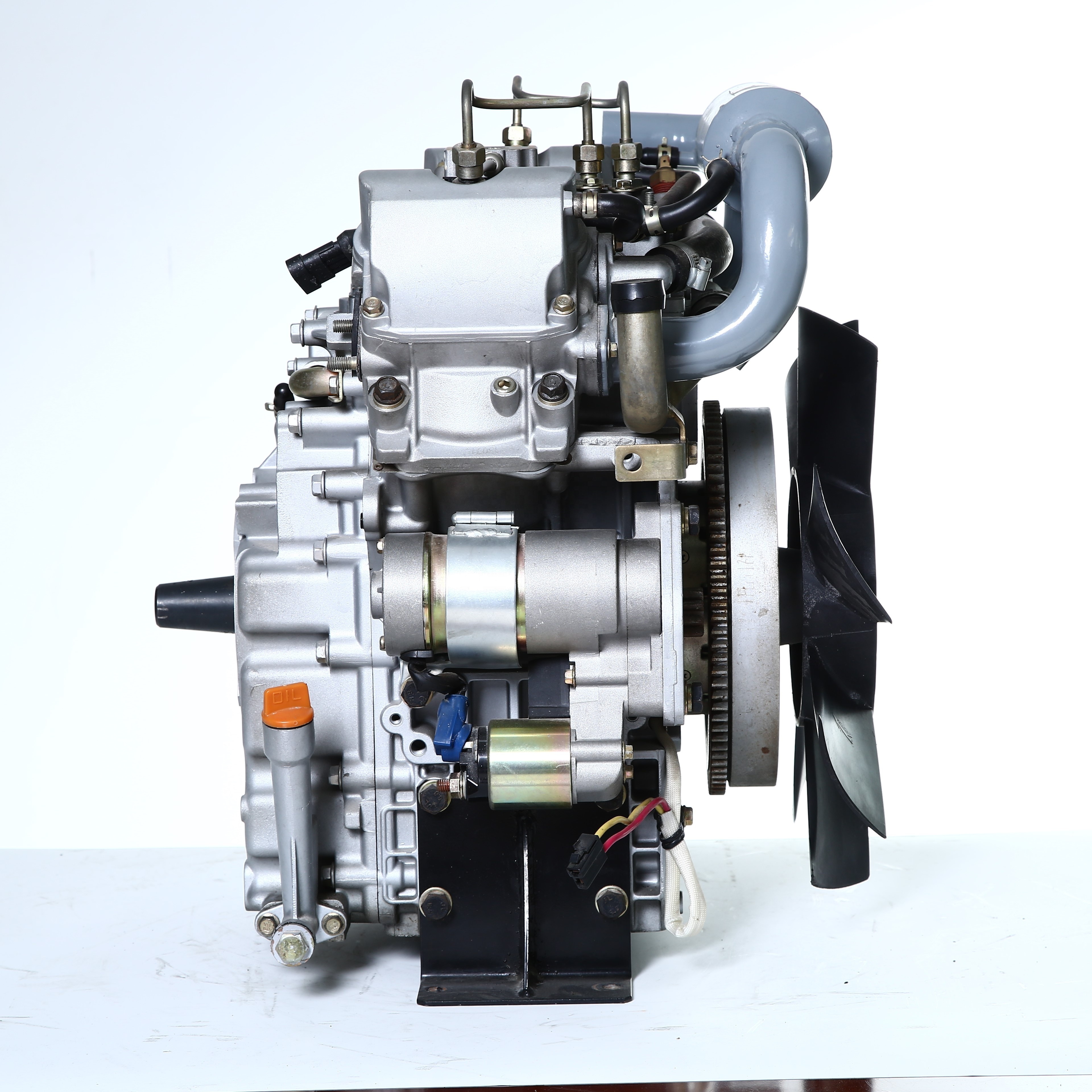

21HP V Twin Cylinder Water Cooled Vertical Shaft Diesel Engine For Mower Tractor
|
Model
|
TD2V80
|
Brand
|
Talos Plus
|
||
|
Bore x Stroke
|
80 x 79mm
|
Displacement
|
794cc
|
||
|
Engine type
|
Direct injection, diesel
|
Cylinder(qty)
|
2
|
||
|
Rated Power
|
14kW(19hp)/3600rpm
|
Speed
|
3600RPM
|
||
|
Starting System
|
Electric start
|
Cooling System
|
Water cooled
|
||
|
Fuel Consumption
|
297g/kW.h@3600rpm
|
Fuel Tank
|
No
|
||
|
Lube Oil Capacity
|
2.3L
|
Fuel Type
|
Diesel
|
||
|
Compression Ratio
|
23 : 1
|
Shaft Output
|
Horizontal/Vertical
|
||
|
Crankshaft
|
Key type
|
Shaft Diameter
|
25.4mm
|
||
|
N.W/G.W
|
57.5/65.5kg
|
Dimension(L x W x H)
|
616 x 486 x 528mm
|
||
|
Lube Oil Type
|
SAE10W30(above CC grade)
|
|
|
||
|
Rotation Direction
|
Anticlockwise(view from flywheel)
|
|
|
||
|
Application
|
Construction, generator, boat, mower and etc.
|
|
|
||
|
Available Option
|
PTO shaft, water tank.
|
|
|
||
Technical Data
PTO Dimensions.

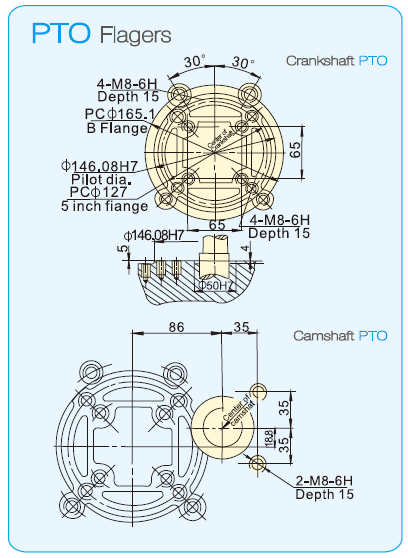

PTO Flagers.
Detailed Images
