Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Like Laser
-
Dimension(L*W*H):
-
1300mm*2500mm*900mm
-
Weight (KG):
-
1200 KG
-
Laser Power:
-
50W
-
Laser Lifetime:
-
100000H
-
Voltage Lequirements:
-
220V/110V 50~60HZ
-
Movement Form:
-
Five Axis Linkage
-
Working Mode:
-
Laser Pulse
-
Engraving Accuracy:
-
0.0006mm
-
Preheating Time:
-
Less Than One Minute
-
Machine Size:
-
Machine Size
-
Certification:
-
CE
Quick Details
-
Engraving Area:
-
1300mm*2500mm/1300mm*3000mm/1500mm*3000mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
7000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Like Laser
-
Dimension(L*W*H):
-
1300mm*2500mm*900mm
-
Weight (KG):
-
1200 KG
-
Laser Power:
-
50W
-
Laser Lifetime:
-
100000H
-
Voltage Lequirements:
-
220V/110V 50~60HZ
-
Movement Form:
-
Five Axis Linkage
-
Working Mode:
-
Laser Pulse
-
Engraving Accuracy:
-
0.0006mm
-
Preheating Time:
-
Less Than One Minute
-
Machine Size:
-
Machine Size
-
Certification:
-
CE
Product Overview

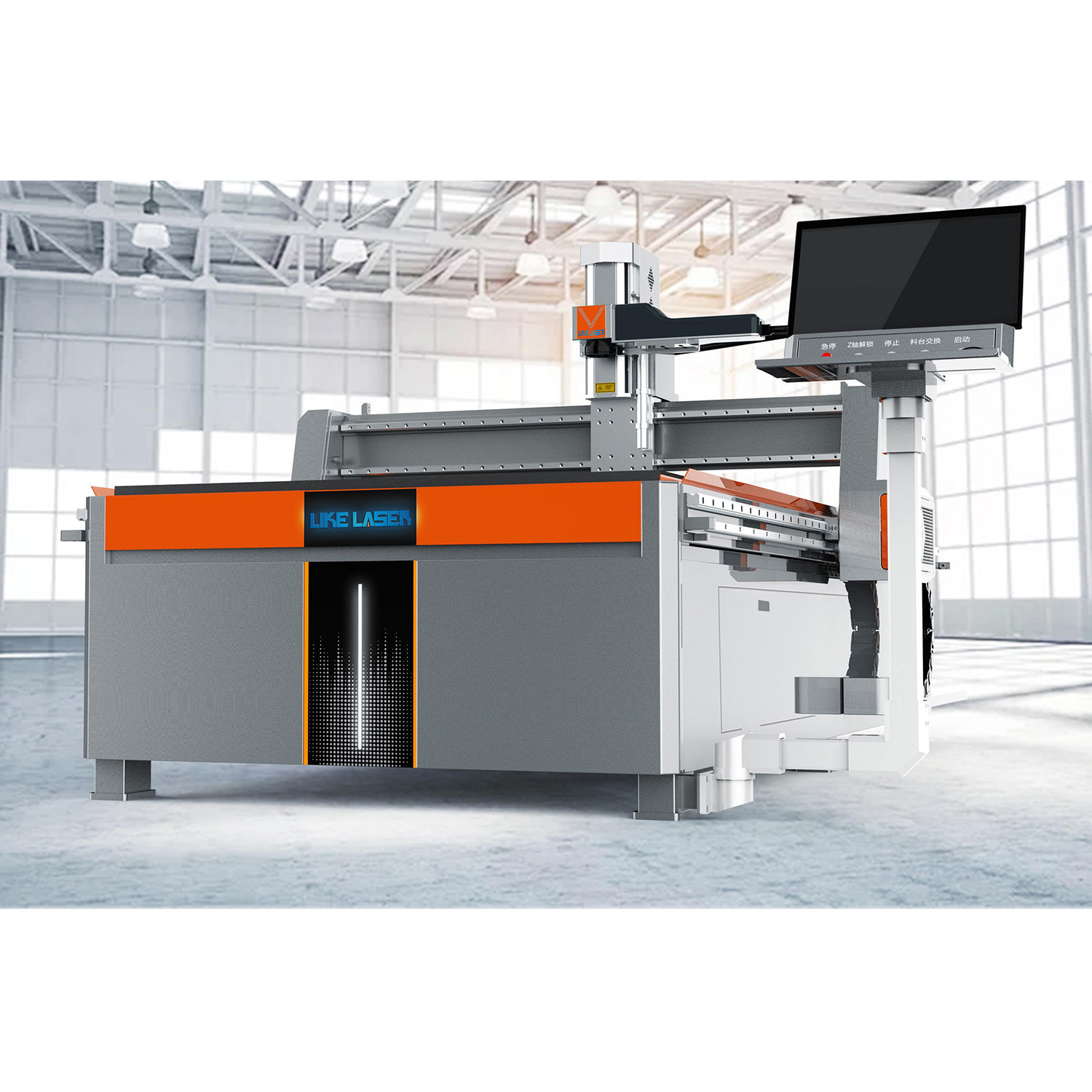

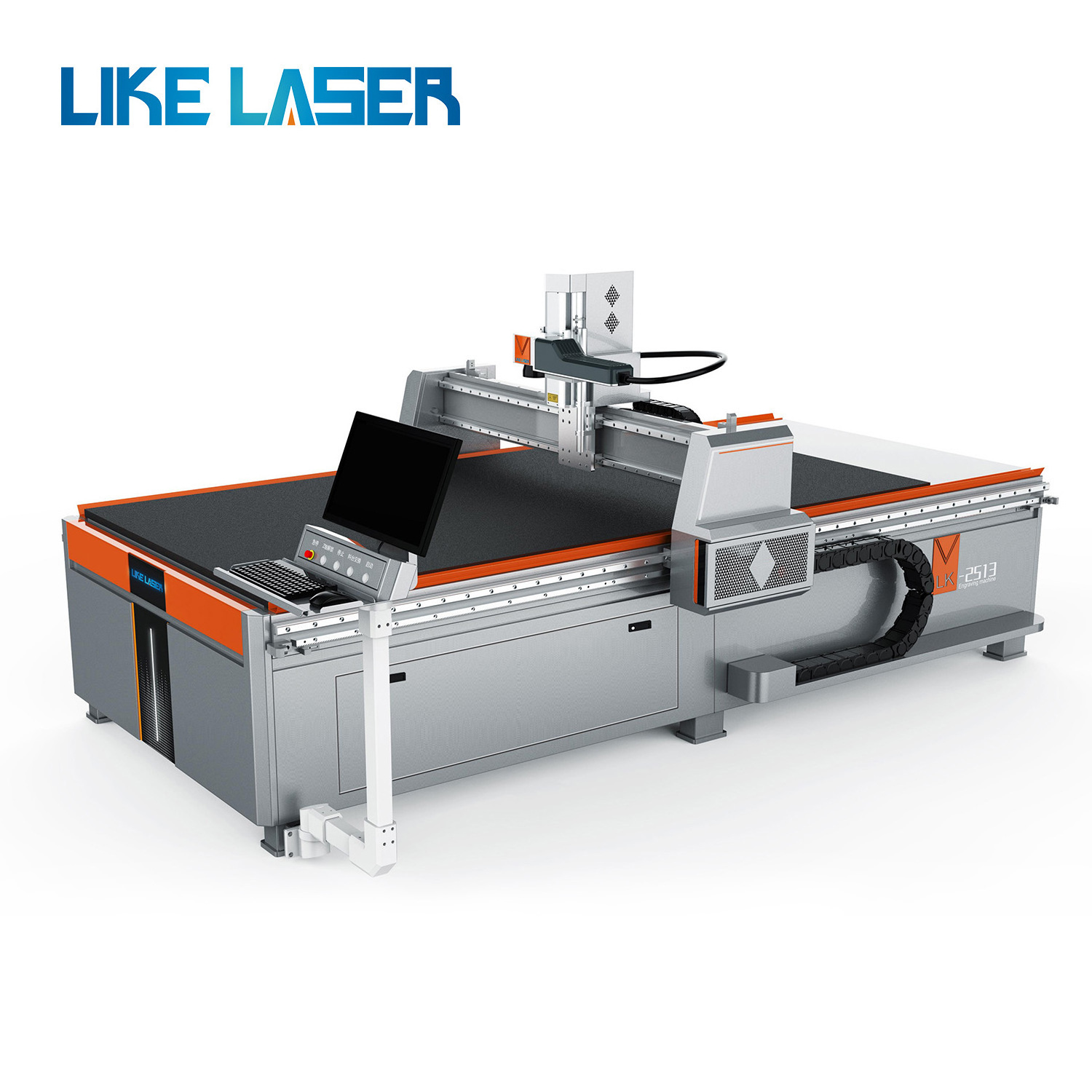

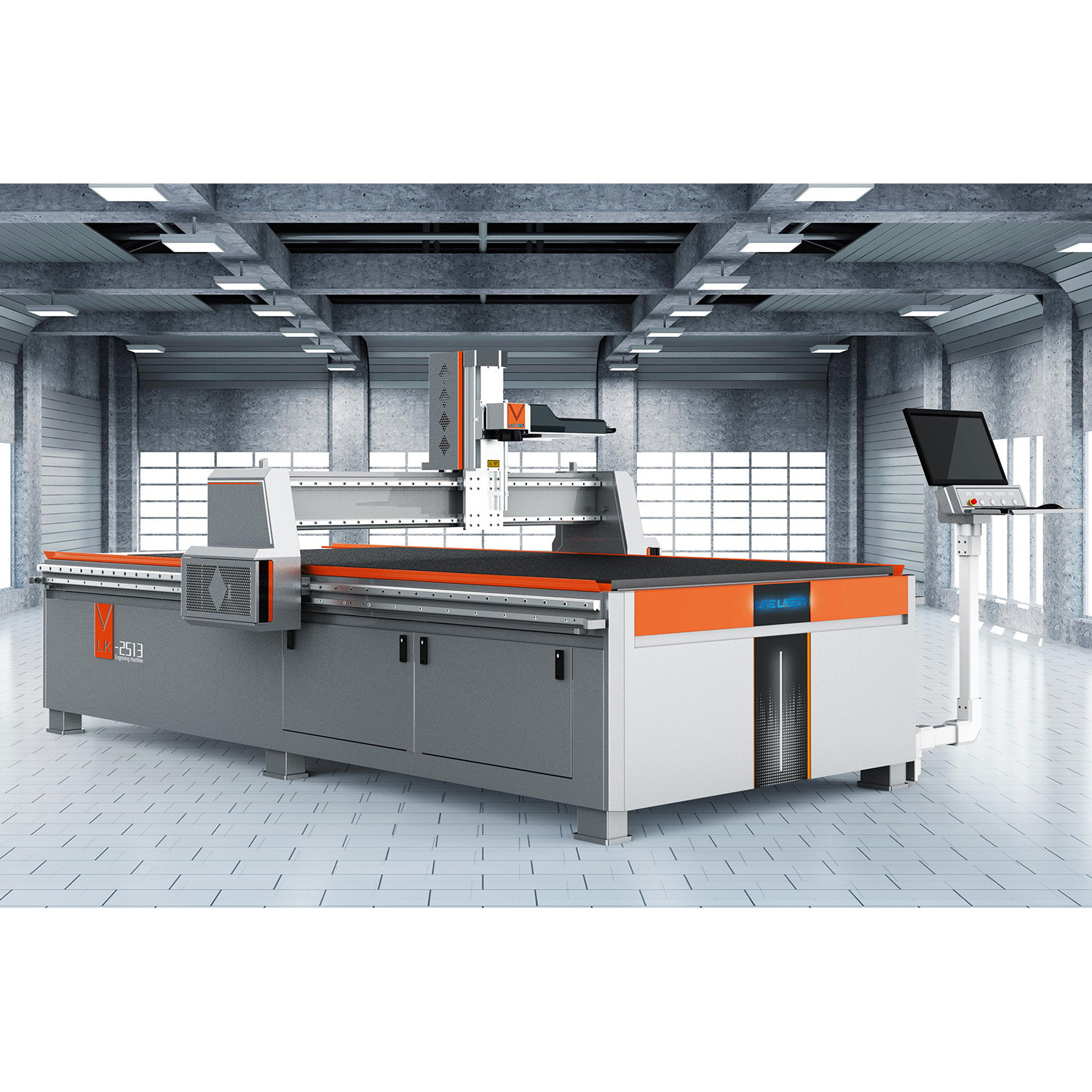

Glass carving/Mirror carving/Paint and rust removal machine machinery of glass
Application for Big Fiber Laser Marking Machine:
1.Removing coat for bathroom mirror, kichten mirror, building mirror, wall mirror, etc.
2. Remove the glass Low-E (conductive film) and carve Low-E into complex geometry
3. Surface marking of stainless steel plate / metal decorative plate

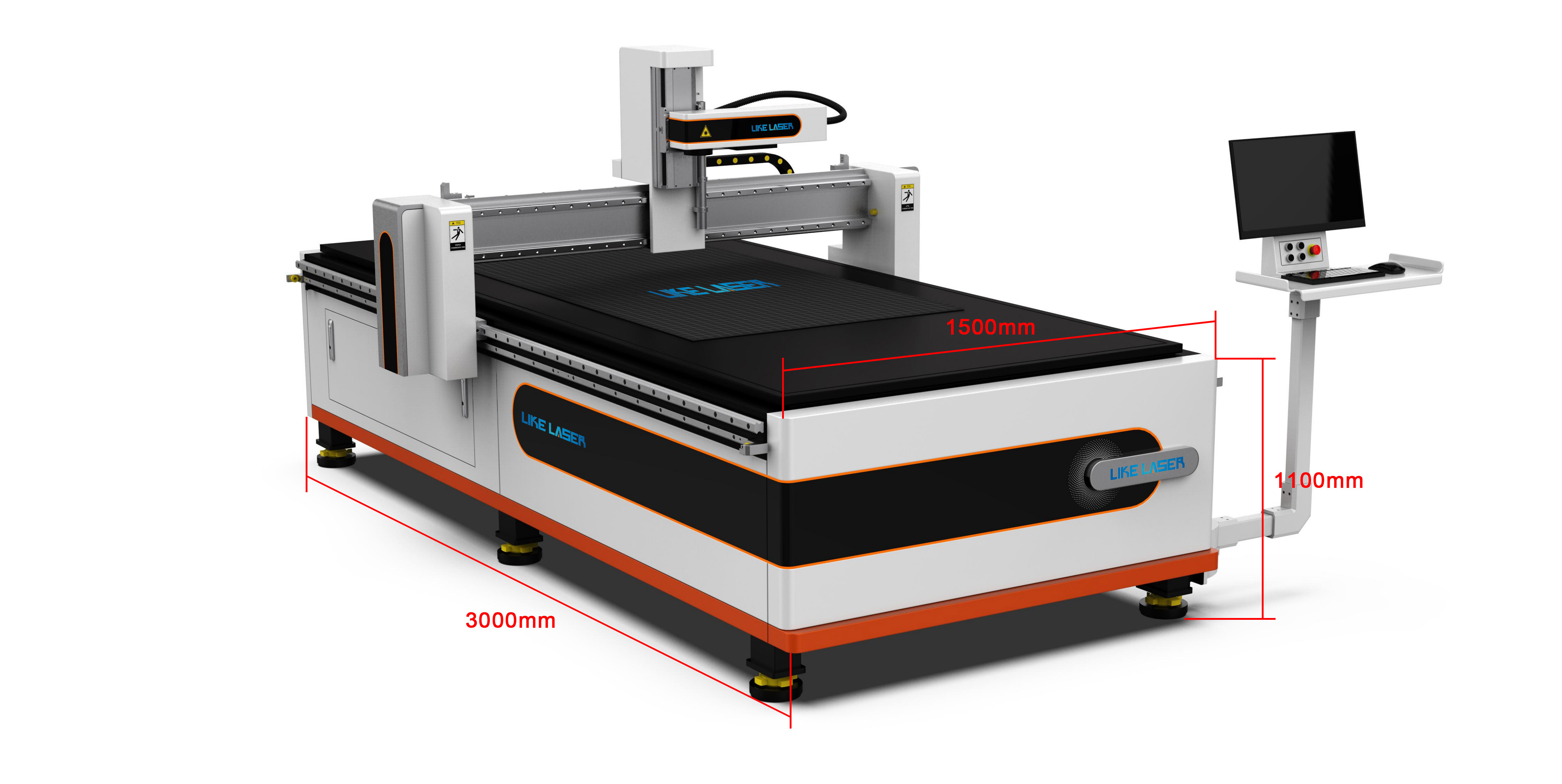

Different Sizes for your demands:
Model 1:
800mm*1200mm
Model 2: 1300*
2500mm
Model 3: 1500*3000mm
PS:
Customizable size
Advantages for fiber laser marking machine:
1.
Excellent beam quality-The laser spot and divergence angle of fiber laser marking machine is smaller than traditional marking machine, marking more precision
2. Low use-cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens.
4. Long working life: using laser diode as pumping source, the working hours can reach as long as 100,000 hours.
5. New designed machine body: Humanized design more suitable for work, can save more time, using fiber to realize laser transport and the structure is compact, which makes possible to work under severe environment such as vibration, high-temperature.
6. High processing speed: 2-3 times faster than the traditional laser marking machine.
2. Low use-cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens.
4. Long working life: using laser diode as pumping source, the working hours can reach as long as 100,000 hours.
5. New designed machine body: Humanized design more suitable for work, can save more time, using fiber to realize laser transport and the structure is compact, which makes possible to work under severe environment such as vibration, high-temperature.
6. High processing speed: 2-3 times faster than the traditional laser marking machine.
Technical Parameter:
|
walvelength:
|
1064nm
|
|
Work Table
|
flannelette
|
|
Supported format
|
BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT,etc.
|
|
marking deepth
|
≥0.2mm (depending on material)
|
|
linear speed
|
≤7000mm/s
|
|
min. line width
|
0.01mm
|
|
min. character size
|
0.2mm
|
|
laser lifetime
|
100,000 working hours
|
|
Warranty
|
1 YEARS
|
|
Frequency of pulse
|
20 ~100HZ
|
|
Marking content
|
Text, pattern, picture, date, bar code, line, etc
|
|
cooling
|
air cooling
|
|
location
|
red location
|
|
power supply
|
AC110V/AC220V / 50Hz / 1KVA
|
|
Operation system
|
Windows XP, Windows 7 (32 or 64)
|
Sample Show
1) Mirror Coat Removing:
2)
1200mm * 2000mm Stainless Steel Elevator Decorative Plate
Customer Case
Foam + Wooden Box For Safer Packing
CE Certification
Customs Bill
Aromatherapy Certificate
Our Services
After-sale service:
1
.
One year
guarantee period for product quality. (man made damaged is negotiable).
2 . Lifelong maintenance and spare parts supply.
3 . Free training for machines installation and operation of the staffs.
4 . Free samples removing or marking of customer provided.
2 . Lifelong maintenance and spare parts supply.
3 . Free training for machines installation and operation of the staffs.
4 . Free samples removing or marking of customer provided.
