Quick Details
-
Brand Name:
-
EECTRL
-
Model Number:
-

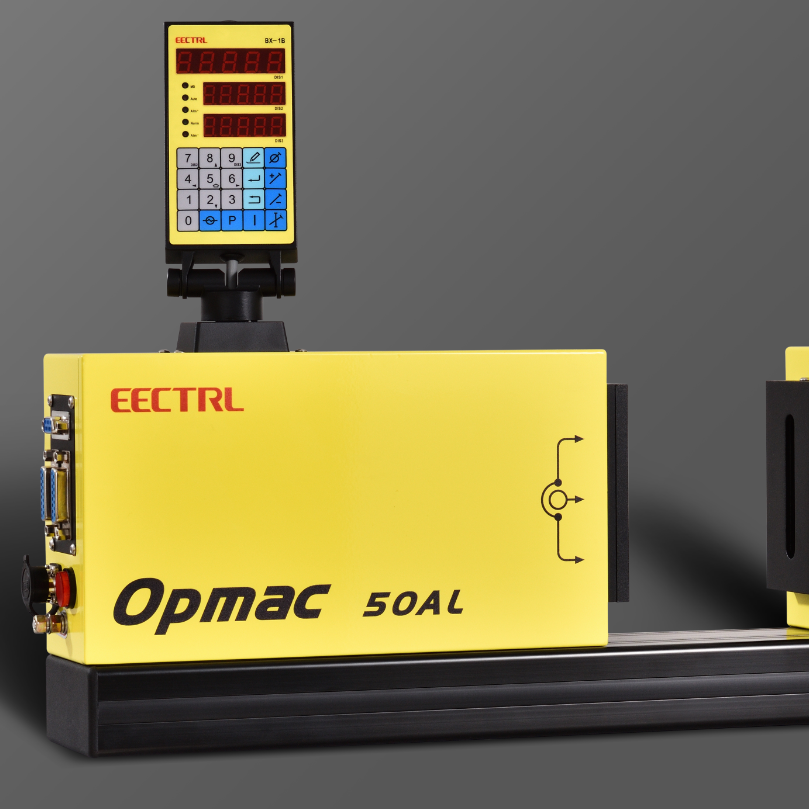

OPMAC-50AL3
-
Product name:
-
laser diameter gauge
-
Color:
-
grey/yellow
-
Operate Temperature:
-
5 ~ 45℃
-
Communication interface:
-
RS 485
-
OEM:
-
AVAILABLE
-
Accuracy:
-
±1.5μm
-
Type:
-
50AL
-
Measuring range:
-
1-50mm
-
Certificate:
-
CE Certificate
Quick Details
-
Warranty:
-
1 year, 1 year
-
Size:
-
500*105*355mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EECTRL
-
Model Number:
-
OPMAC-50AL3
-
Product name:
-
laser diameter gauge
-
Color:
-
grey/yellow
-
Operate Temperature:
-
5 ~ 45℃
-
Communication interface:
-
RS 485
-
OEM:
-
AVAILABLE
-
Accuracy:
-
±1.5μm
-
Type:
-
50AL
-
Measuring range:
-
1-50mm
-
Certificate:
-
CE Certificate
Product Description
| Instructions | |||||||
| 1. Suitable for online measurement of various type of | |||||||
| wire, cable, tube and pipee; | |||||||
| 2. Using F optical lenses to avoid the aect of shaking of the | |||||||
| object; | |||||||
| 3. Multi-function and free rotation operation panel; | |||||||
| 4. Built-in PID module, controlling the diameter of the | |||||||
| object automatically; | |||||||
| 5. Two analog output, multiple remote interfaces which | |||||||
| can connect to one controller and two displayers at | |||||||
| the same time; | |||||||
| 6. RS232/485, PROFIBUS DP and MODBUS interface; | |||||||
| 7. Optional quality management software, real-time | |||||||
| recording the diameter of the object; | |||||||
| 8. Adapting to severe environment. | |||||||
| Specififactions | |||||||
| Model | Measuring Method | Range | Resolution | Accuracy | Dimension | Packaging Dimension | Weight |
| Opmac-5AL3 | Single | 0.03-5mm | 0.001 | ±1μm ± 0.008%×XZ | 200*90*90mm | 535*200*355mm | 8.5kg |
| Opmac-5AL4 | Single | 0.03-5mm | 0.0001 | ±0.4μm ± 0.008%×XZ | 200*90*90mm | 535*200*355mm | 8.5kg |
| Opmac-25AL3 | Single | 0.1-25mm | 0.001 | ±1μm ± 0.008%×XZ | 290*62*316mm | 624*224*494mm | 10.3kg |
| Opmac-40AL3 | Single | 1-40mm | 0.001 | ±1.5μm ± 0.008%×XZ | 400*105*344mm | 754*239*549mm | 13.5kg |
| Opmac-50AL3 | Single | 1-50mm | 0.001 | ±1.5μm ± 0.008%×XZ | 500*105*355mm | 715*215*575mm | 15.5kg |
| Opmac-70AL2 | Single | 1-70mm | 0.01 | ±10μm ± 0.008%×XZ | 710*80*188mm | 839*219*619m | 17kg |
| Opmac-90AL2 | Single | 1-40mm | 0.01 | ±10μm ± 0.008%×XZ | 660*80*421mm | 754*214*689mm | 22kg |
| Edge | 40-100mm | 0.01 | |||||
| Opmac-140AL2 | Single | 1-45mm | 0.01 | ±10μm ± 0.008%×XZ | 597*80*410mm | 754*214*689mm | 35kg |
| Edge | 45-140mm | 0.01 | |||||
| Opmac-250AL2 | Edge | 40-250mm | 0.01 | ±10μm ± 0.008%×XZ | 1180*80*753.5mm | customized | 48kg |
| Opmac-280AL2 | Edge | 40-280mm | 0.01 | ±10μm ± 0.008%×XZ | 1385*80*753.5mm | customized | 52kg |
| Our Adventages | |||||||
| Stable·Accurate·Smart | |||||||
| OPMAC series Laser Scanning | |||||||
| Diameter Measuring Instrument | |||||||
| Since 1989 | |||||||
| Ideal choice for online diameter measurement of all kinds of wire, | |||||||
| metal stick, glass pipe, tube, and so on. | |||||||
