Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOIERN LASER
-
Dimension(L*W*H):
-
140*75*91cm
-
Weight (KG):
-
100 KG
-
Type:
-
CO2 Laser Machining
-
Laser source:
-
CO2
-
Laser tube:
-
RECI
-
Model:
-
4060
-
Laser power:
-
50W/60W/80W/100W
-
Working table:
-
Honeycomb panel
-
Marketing Type:
-
New Product 2021
Quick Details
-
Engraving Area:
-
400*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0+500mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOIERN LASER
-
Dimension(L*W*H):
-
140*75*91cm
-
Weight (KG):
-
100 KG
-
Type:
-
CO2 Laser Machining
-
Laser source:
-
CO2
-
Laser tube:
-
RECI
-
Model:
-
4060
-
Laser power:
-
50W/60W/80W/100W
-
Working table:
-
Honeycomb panel
-
Marketing Type:
-
New Product 2021
Specification
|
item
|
value
|
|
Application
|
Laser Engraving
|
|
Applicable Material
|
Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, laser engraving machine
|
|
Engraving Area
|
400*600mm
|
|
Laser Type
|
CO2
|
|
Engraving Speed
|
0-500mm/s
|
|
Graphic Format Supported
|
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
|
|
Condition
|
New
|
|
CNC or Not
|
YES
|
|
Cooling Mode
|
WATER COOLING
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
VOIERN LASER
|
|
Dimension(L*W*H)
|
140*75*91cm
|
|
Laser Source Brand
|
RECI
|
|
Laser Head Brand
|
CVL
|
|
Servo Motor Brand
|
CVL
|
|
Guiderail Brand
|
CVL
|
|
Control System Brand
|
RuiDa
|
|
Optical Lens Brand
|
CVL
|
|
Weight (KG)
|
100KG
|
|
Key Selling Points
|
Easy to Operate
|
|
Warranty
|
1 Year
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Printing Shops, Advertising Company
|
|
Showroom Location
|
None
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2021
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, PLC
|
|
Type
|
CO2 Laser Machining
|
|
Laser source
|
CO2
|
|
Laser tube
|
RECI
|
|
Model
|
4060
|
|
Laser power
|
50W/60W/80W/100W
|
|
Working table
|
Honeycomb panel
|

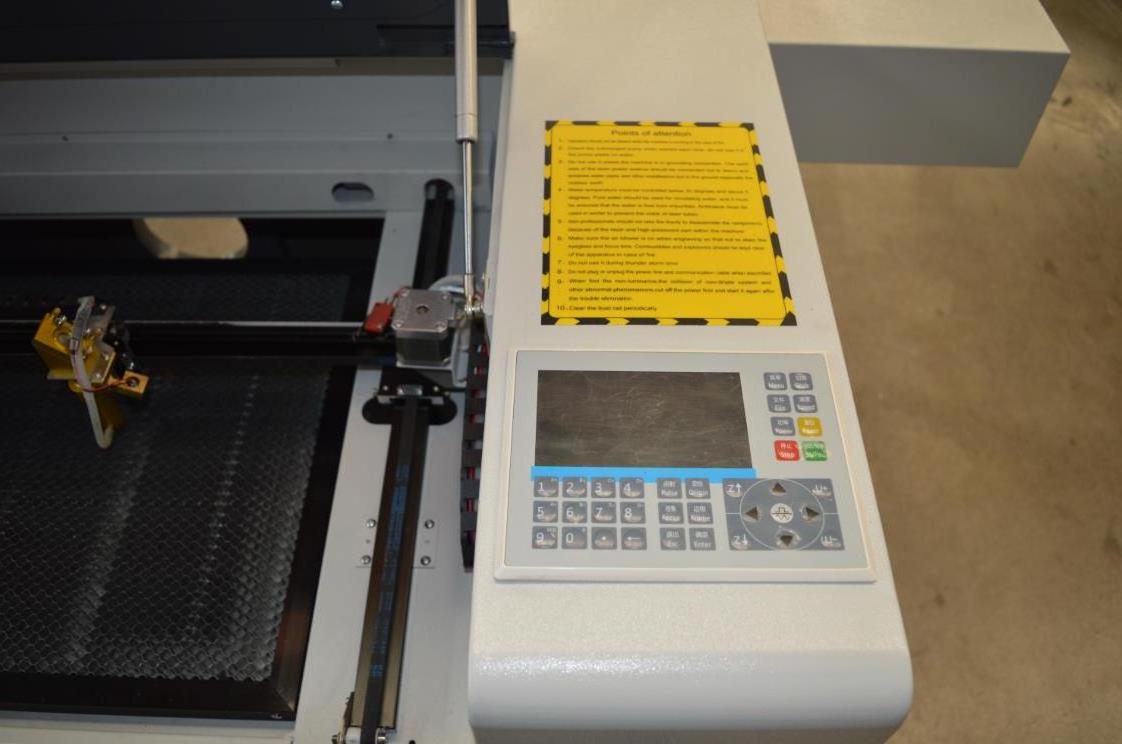

Control system adopts RD6445, the man-machine operating system with 5-inch color screen has a more friendly operation interface and more powerful functions.

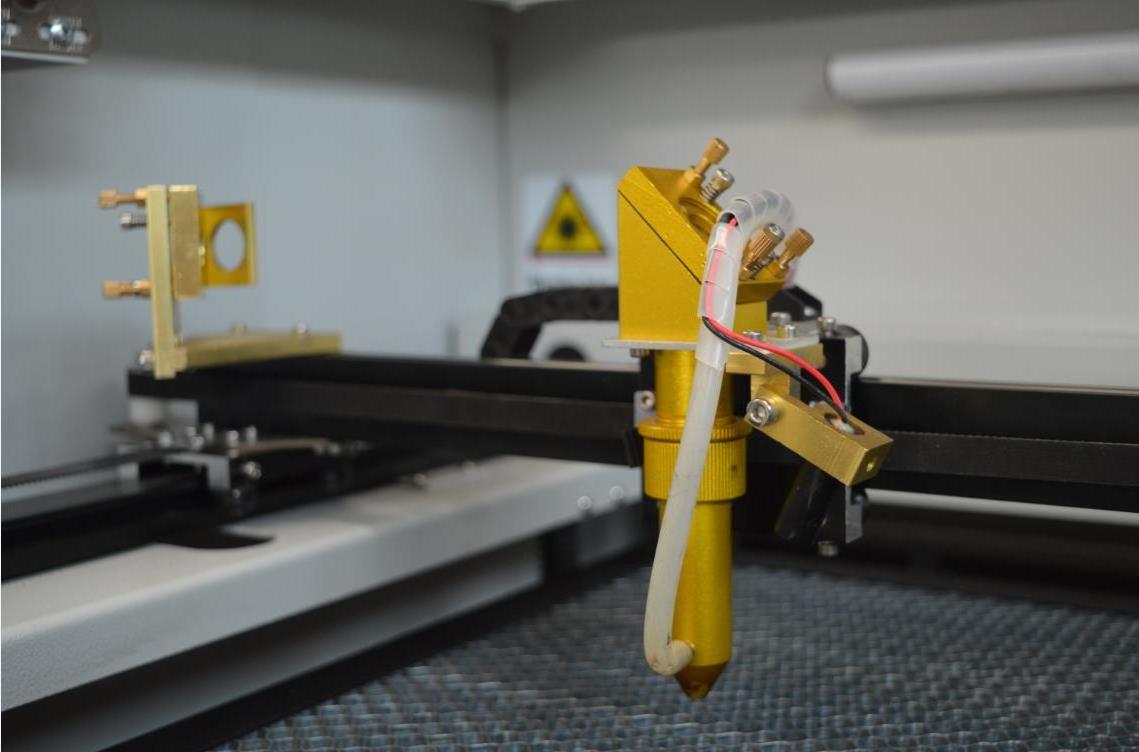

laser light path is made of all aluminum material, and the lens material uses imported material, which has a very good reflection effect.
Each machine contains a bracket and four universal wheels。
There is a seven-hole plug-in row at the back of the machine, and a 38W fan is installed at the exhaust port.
samples show
