Quick Details
-
Weight:
-
6000 KG
-
type:
-
Forming equipment
-
model:
-
Customized
-
alias:
-

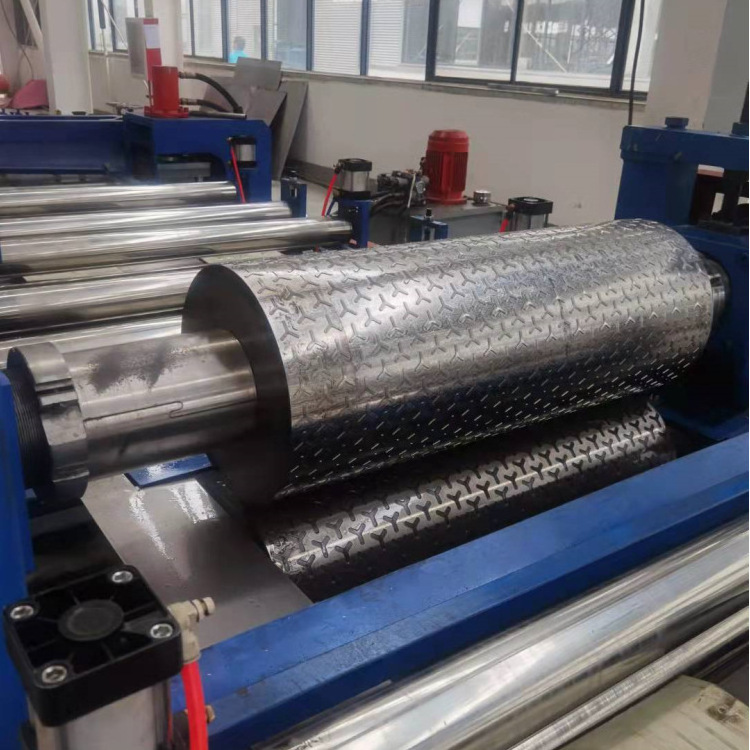

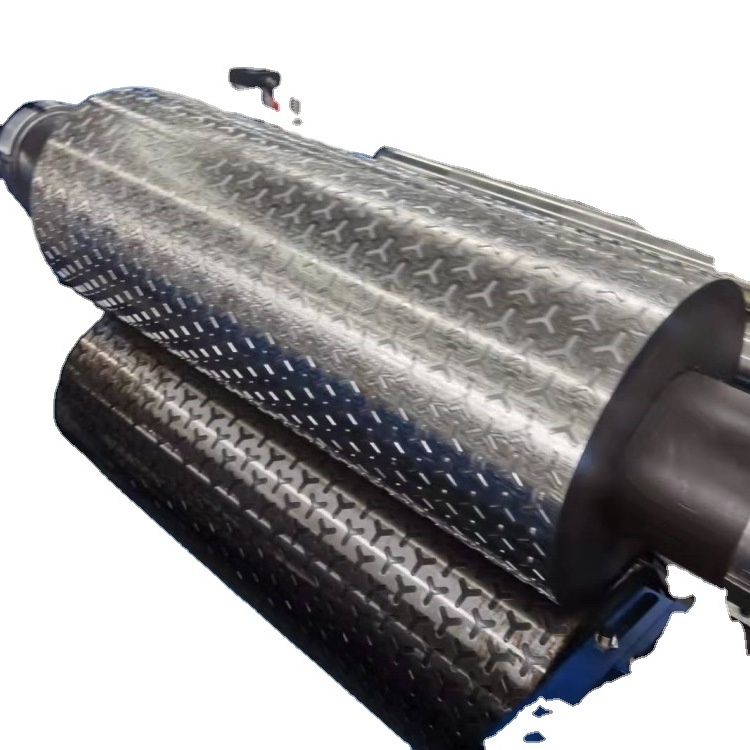

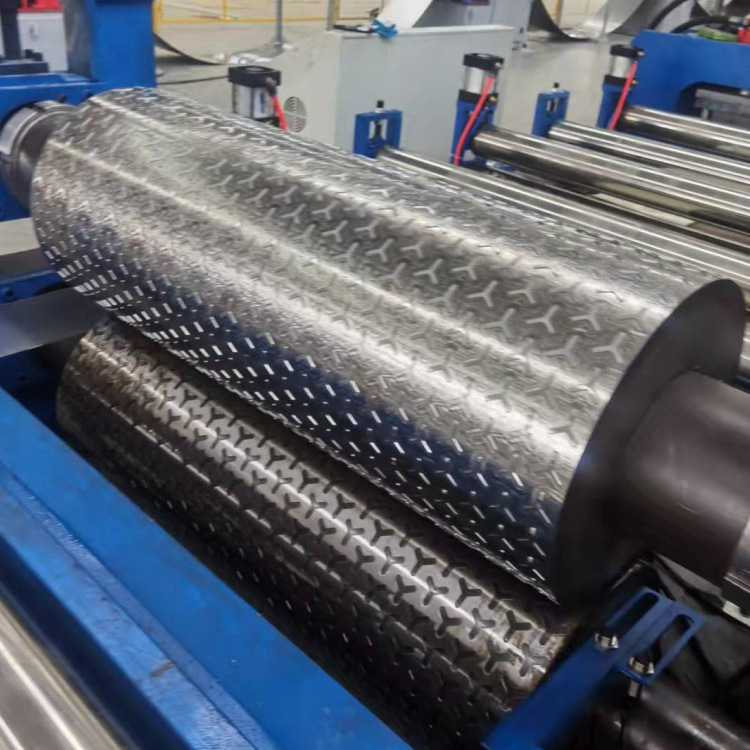

Embossing roller
-
purpose:
-
Metal cold bending forming
-
Motor power:
-
Customized (kw)
Quick Details
-
Voltage:
-
380V 50HZ
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
XuNuan
-
Weight:
-
6000 KG
-
type:
-
Forming equipment
-
model:
-
Customized
-
alias:
-
Embossing roller
-
purpose:
-
Metal cold bending forming
-
Motor power:
-
Customized (kw)
Product Paramenters
|
Overall weight
|
about 6 tons
|
|
|
|
|||
|
Forming shaft
|
diameter 80-100mm 45 # quenched and tempered
|
|
|
|
|||
|
Forming wheel
|
material bearing steel forged, hard chrome plated
|
|
|
|
|||
|
Main frame
|
350H steel
|
|
|
|
|||
|
Number of forming passes
|
15-18 rows
|
|
|
|
|||
|
Rotation method
|
sprocket chain
|
|
|
|
|||
|
Electric control system
|
the whole machine is controlled by Industrial PC PLC
|
|
|
|
|||
|
Host power
|
15kw
|
|
|
|
|||
|
Computer cutting power
|
5.5kw
|
|
|
|
|||
|
Working speed
|
6000mm/min
|
|
|
|
|||
|
Hydraulic station pressure
|
10-12MPa
|
|
|
|
|||
|
Feed plate thickness
|
1-2mm
|
|
|
|
|||
Product Description
Suitable for wide plate forming, with beautiful appearance, high degree of automation, simple operation, long service life, production speed of 15-20m/min, high utilization rate of raw materials, and high precision of length determination.
Details Images
