Quick Details
-
Ejector Stroke(mm):
-
260 mm
-
Ejector Force(kN):
-
200 kN
-
Theoretical Shot Volume(cm³):
-
3455 cm³
-
Injection Rate (g/s):
-
580 g/s
-
Injection Weight (g):
-
3144 g
-
Screw Speed (rpm):
-
1 - 125 rpm
-
Screw diameter (mm):
-
100 mm
-
Screw L/D Ratio:
-
18.9
-
Distance between Tie Bars:
-
900*850mm
-
Weight (KG):
-
29000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
870 mm
-
Model Number:
-

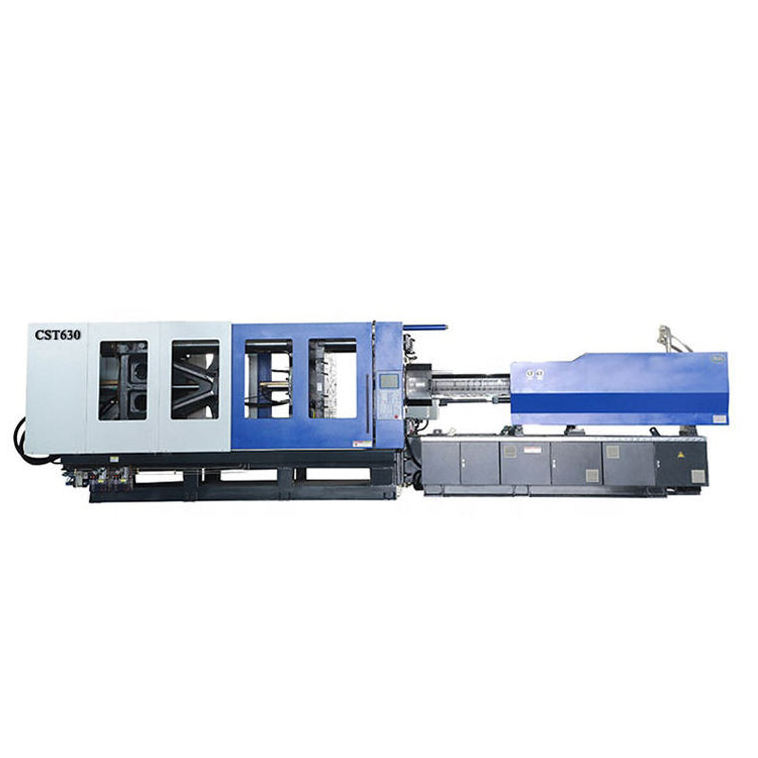

CST630
-
Brand Name:
-
COSTAR
-
Power (kW):
-
42 kW
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
-
Machine dimension(L*W*H):
-
9.514m*2.27m*2.65m
-
Space between tie-bars:
-
900*850mm
-
screw L/D ratio:
-
18.9-22.2L/D
-
screw diameter:
-
85-100mm
-
injection pressure:
-
149-206Mpa
-
color:
-
any color client require
-
Injection Rate:
-
417-580g/s
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
900mm
-
Distance between Tie Bars(Height)(mm):
-
850mm
-
Plasticizing Capacity(g/s):
-
100
-
Ejector Stroke(mm):
-
260 mm
-
Ejector Force(kN):
-
200 kN
-
Theoretical Shot Volume(cm³):
-
3455 cm³
-
Injection Rate (g/s):
-
580 g/s
-
Injection Weight (g):
-
3144 g
-
Screw Speed (rpm):
-
1 - 125 rpm
-
Screw diameter (mm):
-
100 mm
-
Screw L/D Ratio:
-
18.9
-
Distance between Tie Bars:
-
900*850mm
-
Weight (KG):
-
29000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
870 mm
-
Model Number:
-
CST630
-
Brand Name:
-
COSTAR
-
Power (kW):
-
42 kW
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
-
Machine dimension(L*W*H):
-
9.514m*2.27m*2.65m
-
Space between tie-bars:
-
900*850mm
-
screw L/D ratio:
-
18.9-22.2L/D
-
screw diameter:
-
85-100mm
-
injection pressure:
-
149-206Mpa
-
color:
-
any color client require
-
Injection Rate:
-
417-580g/s
-
Marketing Type:
-
Ordinary Product
Product Parameter
If You Have Any Questions About The Technical Parameters Of The Product, You Can Contact Me Through This
+8615162337030
|
a
|
b
|
c
|
|||
|
Injection Unit
|
|
|
|||
|
Screw diameter
|
mm
|
40
|
|||
|
Screw L/D ratio
|
L/D
|
24.7
|
|||
|
Injection capacity in theory
|
cm3
|
282
|
|||
|
Injection weight(ps)
|
g
|
262
|
|||
|
|
oz
|
9.24
|
|||
|
Injection pressure
|
MPa
|
224
|
|||
|
Injection rate
|
g/s
|
100
|
|||
|
Plasticizing capacity
|
g/s
|
14
|
|||
|
Screw speed
|
rpm
|
160
|
|||
|
Clamping Unit
|
|
|
|||
|
Clamping force
|
kN
|
1880
|
|||
|
Moving mould-plate stroke
|
mm
|
450
|
|||
|
Max.Mould height
|
mm
|
530
|
|||
|
Min.Mould height
|
mm
|
180
|
|||
|
Space between tie-bars
|
mm
|
510x460
|
|||
|
Hydraulic ejector force
|
kN
|
53
|
|||
|
Hydraulic ejector stroke
|
mm
|
130
|
|||
|
Ejector number
|
n
|
5
|
|||
|
Other
|
|
|
|||
|
Pump pressure
|
MPa
|
16
|
|||
|
Motor/Driving power
|
kW
|
15/18.5
|
|||
|
Heating capacity
|
kW
|
12.95
|
|||
|
Machine dimension
|
m
|
5.39 x 1.29x2.05
|
|||
|
Machine weight
|
t
|
5.2
|
|||
|
Oil tank capacity
|
L
|
272
|
|||
