Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Number of Axes:
-
3/4/5/6
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BCAM
-
Voltage:
-
380v / 220v
-
Power (kW):
-
25
-
Weight (KG):
-
1800
-
Product name:
-
ATC CNC Wood Working Machine
-
Control system:
-
Taiwan Syntec Controller/dsp
-
Spindle:
-
HQD 9.0kw ATC Spindle
-
Inverter:
-
11kw Delta Inverter
-
Table:
-
Vacuum Adsorption + T-slot Table
-
Motor:
-
Japan Yaskawa Servo Motor
-
Z axis Transmission:
-
TBI Ball Screw
-
XY axis Transmission:
-
Taiwan TBI Linear Guide
-
Pump:
-
5.5kw/7.5kw air pump
-
Tool magazine:
-
Automatic Tool Changer 10 Tools
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Number of Axes:
-
3/4/5/6
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BCAM
-
Voltage:
-
380v / 220v
-
Power (kW):
-
25
-
Weight (KG):
-
1800
-
Product name:
-
ATC CNC Wood Working Machine
-
Control system:
-
Taiwan Syntec Controller/dsp
-
Spindle:
-
HQD 9.0kw ATC Spindle
-
Inverter:
-
11kw Delta Inverter
-
Table:
-
Vacuum Adsorption + T-slot Table
-
Motor:
-
Japan Yaskawa Servo Motor
-
Z axis Transmission:
-
TBI Ball Screw
-
XY axis Transmission:
-
Taiwan TBI Linear Guide
-
Pump:
-
5.5kw/7.5kw air pump
-
Tool magazine:
-
Automatic Tool Changer 10 Tools

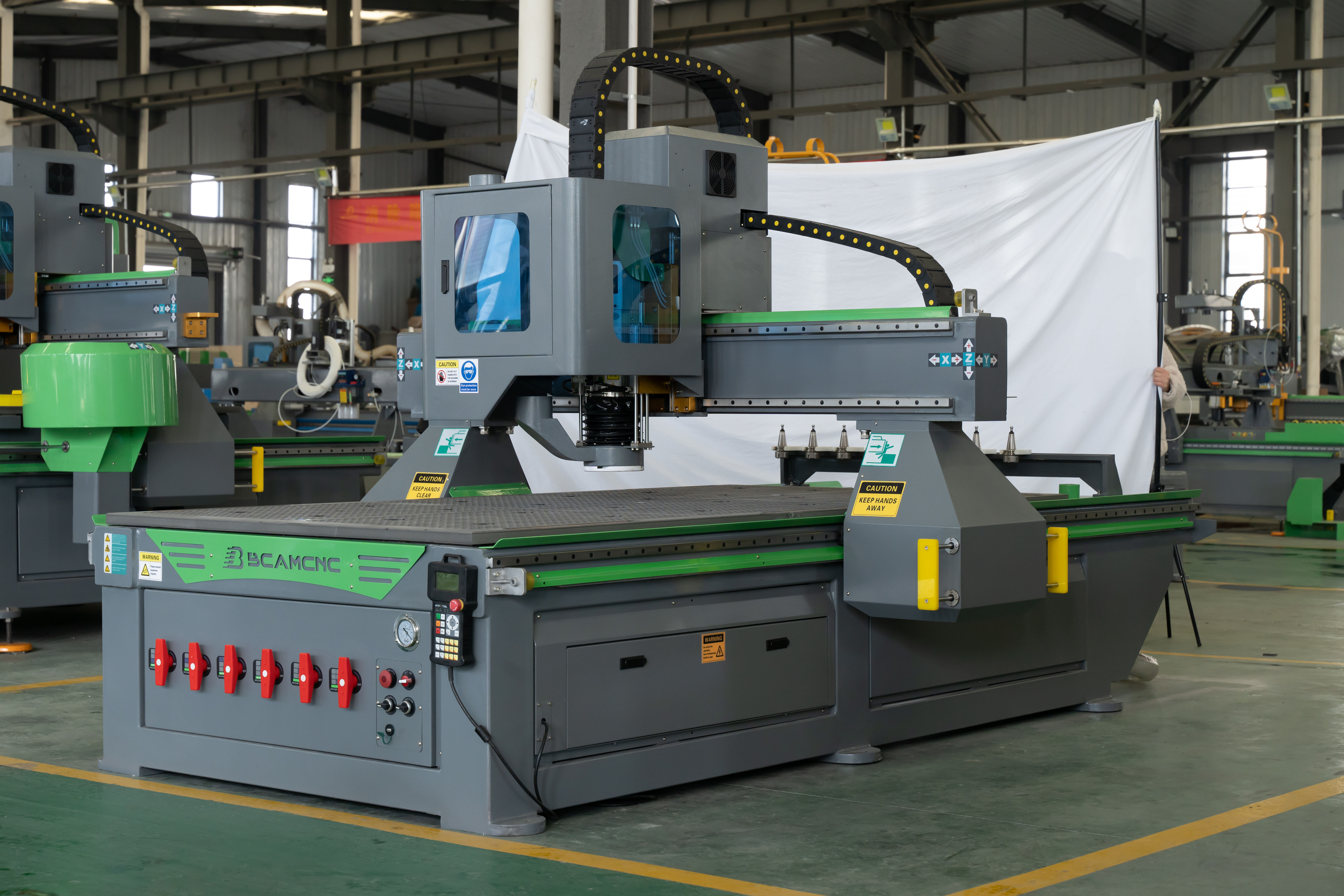

3D CNC Router Woodworking Machinery CNC Router price 1325 cnc cutting router Wood carving machine
High-performance all-round machinery with extraordinary value, but at a very economical price. With disc tool changer, constructed with world-class components, consistent high performance.
When the D series CNC Router is working, the tool change system will move along with it, which saves the tool change time and is suitable for more processing.The ATC allows the BCAMCNC Router to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop.
Products Description
|
Parameters
|
Details
|
|
PRODUCT NAME
|
ATC CNC ROUTER MACHINE
|
|
WORKING AREA
|
1300mm*2500mm(1530/2030/2040/2060)
|
|
Cutting speed
|
80m/min
|
|
Cutting Thickness
|
According to your material
|
|
Spindle Power
|
9.0kw Air cooling spindle
|
|
Control system
|
Syntec 60W-E
|
|
X,Y,Z Traveling Positioning Accuracy
|
0.01/2000mm
|
|
Command Language
|
G Code
|
|
Software Compatibility
|
Option:Alphacam/Solidworks/Vcare Pro/Artcam,etc.
|
|
Running Environment
|
Temperature: 0℃~45℃ Relative Humidity: 30%~75%
|
Machine Details
● Working area: 1300*2500*200mm|4′*8′
● CE standard
● HQD 9.0KW(12HP) Electrospindle with 12-position Automatic Tool Changer(ISO30)
● 12mm Heavy duty body
● Active protection safety system
● Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
● 25mm Heavy-duty Hiwin HG Series linear bearing
● Vacuum table+T-solt
● Japan Yaskawa servo motor and drivers system
● Delta brand VFD-B variable frenquency drive
● 10 Position Automatic Tool Changer
● Tool Cone Holder-for east bit changing
● Solid State limit switches
● Airtech pro Dust-free extraction hood
● 3 Years Warranty
Related Machines
Advertising industry:
Acrylic, two-color board, PVC, ABS board, aluminum board, two-color portrait, three-dimensional advertising, various standard equipment, badges, coordinate plates, copper, fonts, fonts, various signs, trademarks, etc.
Woodworking industry:
furniture decoration, musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, composite doors, cabinets, wardrobes, window doors, bedside tables, etc.
Decoration industry:
art models, murals, screens, reliefs, decoration processing, gift packaging, wave boards, electrical countertops, sporting goods and other wood products.
Certifications
The company's products have successively obtained ISO quality system certification, the European Union's CE safety certificate and so on. A total of more than 10 patent certificates.
Company&Customer visit
Our Company
BCAMCNC , a professional machinery manufacturing company located in Jinan ,shandong,with more than 10 Patent Technologies and has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
We are comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., we have selling our products to over 90 countries worldwide successfully .
For better service to our customer, BCAMCNC has already established sales & service branches in Shanghai, Dong guan, Wuhan and also foreign countries, such as UK, Dubai.
We have 6000 square meters factory in qihe,shandong which is not far from our company .Having our own factory makes it easier for us to realize cost, quality and delivery days control ,Our machines are factory directly supply ,so the price in terms of our configuration service is economical , and our machine’s quality and our after sales service will make it more worthwhile .
We are comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., we have selling our products to over 90 countries worldwide successfully .
For better service to our customer, BCAMCNC has already established sales & service branches in Shanghai, Dong guan, Wuhan and also foreign countries, such as UK, Dubai.
We have 6000 square meters factory in qihe,shandong which is not far from our company .Having our own factory makes it easier for us to realize cost, quality and delivery days control ,Our machines are factory directly supply ,so the price in terms of our configuration service is economical , and our machine’s quality and our after sales service will make it more worthwhile .
FAQ
Q: How to install and run the machine?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will randomize the device together Send detailed training videos and user manuals. 95% of customers can learn by themselves.
Q: What should I do if the machine fails?
A: If you encounter such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will be in 24 hours Respond as soon as possible within this time and solve it for you.
Q: Are you a factory or a trading company?
A: We are a factory with rich experience. Or directly make an appointment with the customer for a video factory inspection. Or we can have a video call any time, or welcome to visit our factory any time.
Q: What is your minimum order quantity?
A: We do not have a minimum order quantity. Whether it is 1 set of orders or 100 sets of orders, we will be happy to provide you with support hold.
Q: Delivery time of CNC router machine?
A: Standard size and configuration CNC router machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 30 days.
