Quick Details
-
Conventional setting current:
-
400A/500A/800A/1250A/1600A
-
Rated insulation voltage:
-
750V
-
Rated voltage:
-
AC 230/440V
-
Limit breaking ability lcu:
-
50KA
-
Pole:
-
3P/4P
-
Mechanical Life:
-
10000 Times
-
Frame current:
-
1600A
Quick Details
-
Max. Voltage:
-
440V
-
Place of Origin:
-
Zhejiang, China
-

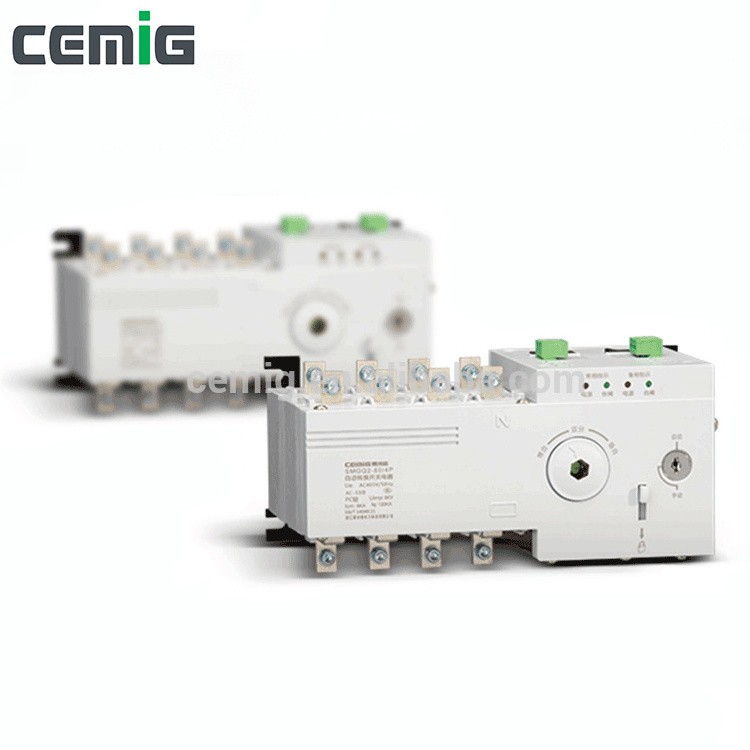

Type:
-
Automatic Transfer Switch
-
Conventional setting current:
-
400A/500A/800A/1250A/1600A
-
Rated insulation voltage:
-
750V
-
Rated voltage:
-
AC 230/440V
-
Limit breaking ability lcu:
-
50KA
-
Pole:
-
3P/4P
-
Mechanical Life:
-
10000 Times
-
Frame current:
-
1600A
Product Description
|
Agreed heating current
lth |
100A | 250A | 630A | 1000A | 1600A | 2000A | 2500A | 3200A | ||||||||||||
| Rated current In(A) | 16 | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | |
|
Rated insulation voltage
Ui(V) |
500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Dielectric strength (V) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 10000 | 10000 | 10000 | 10000 | 1000 | 1000 | 1000 | |
|
Rated impluse withsand
voltage Uimp kV (installation category IV) |
8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
|
Rated working
current le(A) |
AC-
33iB |
16 | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
|
Rated short-time
withstand current Icw (kA Rms)0.1S/1S |
9/5 | 9/5 | 9/5 | 9/5 | 9/5 | 9/5 | 12/25 | 12/25 | 12/25 | 12/25 | 40/20 | 50/25 | 90/50 | 90/50 | 90/50 | 90/50 | 50 | 50 | 55 | |
|
Rated breaking capacity
(A Rms)AC-33iB 380V |
128 | 160 | 320 | 500 | 640 | 800 | 1000 | 1280 | 1600 | 2000 | 3200 | 5000 | 6400 | 8000 | 10000 | 12800 | 16000 | 20000 | 25600 | |
|
Rated making
capacity(A Rms)AC-33iB 380V |
160 | 200 | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 4000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 25000 | 32000 | |
|
conversion
time |
Ⅰ
-0- Ⅱ or Ⅱ -0- Ⅰ (S) |
0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1.1 | 1.1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 |
| Ⅰ -0 or Ⅱ -0(S | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.2 | 1.2 | 1.2 | |
| weight(kg) | 3P | 4.15 | 4.15 | 4.25 | 4.35 | 4.45 | 4.45 | 8.2 | 8.2 | 10.4 | 10.4 | 17.8 | 19 | 28 | 31 | 31 | 34 | |||
| 4P | 4.2 | 4.2 | 4.3 | 4.4 | 4.5 | 4.5 | 8.7 | 8.7 | 11.3 | 11.3 | 20.2 | 22 | 32 | 36 | 36 | 40 | 95 | 98 | 135 | |
| Using category | AC-33iB(PC type) | |||||||||||||||||||
