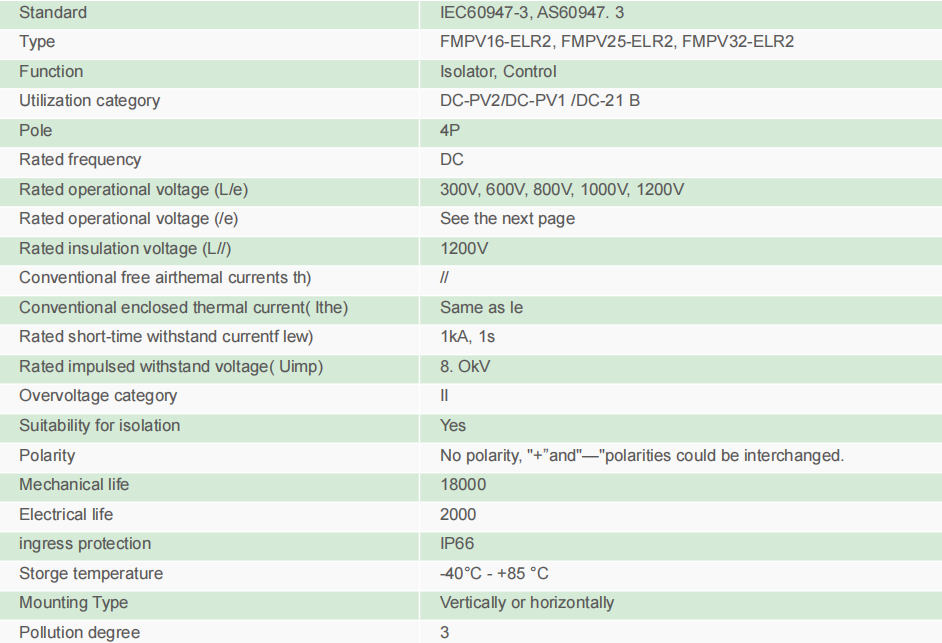

Quick Details
-
Model Number:
-
FMPV32
-
Max. Current:
-
1kA
-
Type:
-
FMPV16-ELR2, FMPV25-ELR2, FMPV32-ELR2
-
Utilization category:
-
DC-PV2/DC-PV1 /DC-21 B
-
Pole:
-
4P
-
Rated frequency:
-
DC
-
Rated operational voltage (L/e):
-
300V, 600V, 800V, 1000V, 1200V
-
Rated short-time withstand currentf lew):
-
1kA, 1s
-
ingress protection Enclosure:
-
IP66
-
Storge temperature:
-
'-40°C -+85 °C
-
Pollution degree:
-
3
-
Certification:
-
IEC60947-3, AS60947. 3
Quick Details
-
Max. Voltage:
-
1200V
-
Place of Origin:
-
China
-
Brand Name:
-
LOVADON
-
Model Number:
-
FMPV32
-
Max. Current:
-
1kA
-
Type:
-
FMPV16-ELR2, FMPV25-ELR2, FMPV32-ELR2
-
Utilization category:
-
DC-PV2/DC-PV1 /DC-21 B
-
Pole:
-
4P
-
Rated frequency:
-
DC
-
Rated operational voltage (L/e):
-
300V, 600V, 800V, 1000V, 1200V
-
Rated short-time withstand currentf lew):
-
1kA, 1s
-
ingress protection Enclosure:
-
IP66
-
Storge temperature:
-
'-40°C -+85 °C
-
Pollution degree:
-
3
-
Certification:
-
IEC60947-3, AS60947. 3
|
Type number
|
Type
|
300V
|
600V
|
800V
|
1000V
|
1200V
|
Poles in series
|
Number of strings
|
|
2P
|
FMPV16
|
16A
|
16A
|
12A
|
8A
|
6A
|
2
|
1
|
|
|
FMPV25
|
25A
|
25A
|
15A
|
9A
|
7A
|
2
|
1
|
|
|
FMPV32
|
32A
|
27A
|
17A
|
10A
|
8A
|
2
|
1
|
|
4P
|
FMPV16
|
16A
|
16A
|
12A
|
8A
|
6A
|
2
|
2
|
|
|
FMPV25
|
25A
|
25A
|
15A
|
9A
|
7A
|
2
|
2
|
|
|
FMPV32
|
32A
|
27A
|
17A
|
10A
|
8A
|
2
|
2
|
|
4T
|
FMPV16
|
16A
|
16A
|
16A
|
16A
|
16A
|
2
|
1
|
|
|
FMPV25
|
25A
|
25A
|
25A
|
25A
|
25A
|
2
|
1
|
|
|
FMPV32
|
32A
|
32A
|
32A
|
32A
|
32A
|
2
|
1
|
|
4B
|
FMPV16
|
16A
|
16A
|
16A
|
16A
|
16A
|
2
|
1
|
|
|
FMPV25
|
25A
|
25A
|
25A
|
25A
|
25A
|
2
|
1
|
|
|
FMPV32
|
32A
|
32A
|
32A
|
32A
|
32A
|
2
|
1
|
|
4S
|
FMPV16
|
16A
|
16A
|
16A
|
16A
|
16A
|
4
|
1
|
|
|
FMPV25
|
25A
|
25A
|
25A
|
25A
|
25A
|
4
|
1
|
|
|
FMPV32
|
32A
|
32A
|
32A
|
32A
|
32A
|
4
|
1
|
|
2H
|
FMPV16
|
35A
|
35A
|
/
|
/
|
/
|
2
|
1
|
|
|
FMPV25
|
40A
|
40A
|
/
|
/
|
/
|
2
|
1
|
|
|
FMPV32
|
45A
|
40A
|
/
|
/
|
/
|
2
|
1
|
