Quick Details
-
Production Speed(Cycles/min):
-
15-30 cycle/min
-
Air Pressure(MPa):
-
1 MPa
-
Sheet Thickness(mm):
-
0.25 - 2.5 mm
-
Heating Power (kW):
-
120 kW
-
Air Comsumption(L/min):
-
80 L/min
-
Water Comsumption(L/min):
-
60 L/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
fect
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
4000*1600*2500mm
-
Weight (T):
-
5 T
-
Power(KW):
-
120KW
-
Name:
-

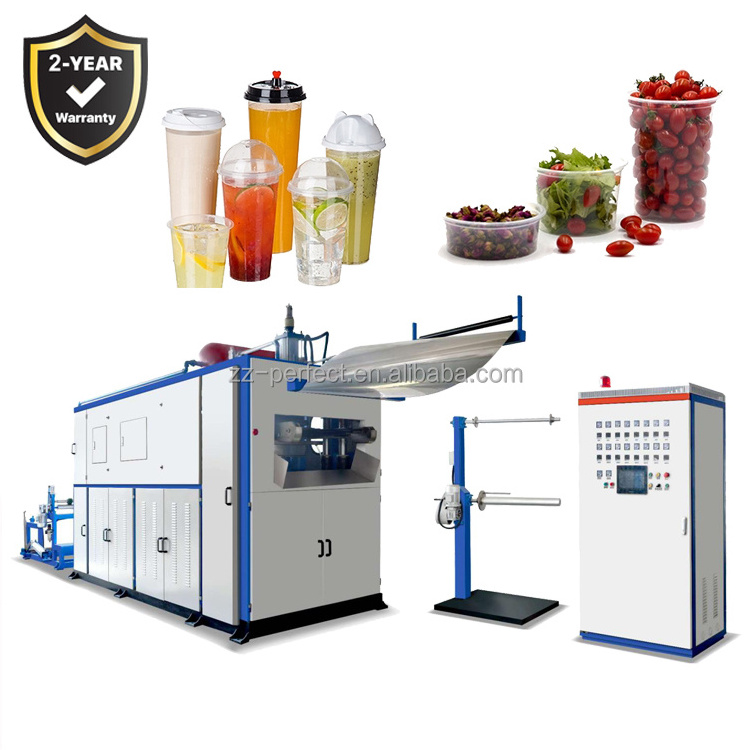

Automatic cam disposable pp pet ps plastic cup thermoforming machine
-
Material:
-
PP, PS, PET, PVC
-
Max.Forming Height:
-
180mm
-
Forming Width:
-
350mm
-
Forming Length:
-
720mm
-
Keyword:
-
plastic cups machine
-
Production Speed:
-
15-30Cycles/min
-
Sheet Thickness:
-
0.25 - 2.5 mm
-
Weight:
-
5 T
-
Dimension:
-
4000*1600*2500mm
Quick Details
-
Max.Forming Height(mm):
-
180 mm
-
Forming Width (mm):
-
350 mm
-
Forming Length (mm):
-
720 mm
-
Production Speed(Cycles/min):
-
15-30 cycle/min
-
Air Pressure(MPa):
-
1 MPa
-
Sheet Thickness(mm):
-
0.25 - 2.5 mm
-
Heating Power (kW):
-
120 kW
-
Air Comsumption(L/min):
-
80 L/min
-
Water Comsumption(L/min):
-
60 L/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
fect
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
4000*1600*2500mm
-
Weight (T):
-
5 T
-
Power(KW):
-
120KW
-
Name:
-
Automatic cam disposable pp pet ps plastic cup thermoforming machine
-
Material:
-
PP, PS, PET, PVC
-
Max.Forming Height:
-
180mm
-
Forming Width:
-
350mm
-
Forming Length:
-
720mm
-
Keyword:
-
plastic cups machine
-
Production Speed:
-
15-30Cycles/min
-
Sheet Thickness:
-
0.25 - 2.5 mm
-
Weight:
-
5 T
-
Dimension:
-
4000*1600*2500mm
Product Description
| Model | PF-720 |
2. Mold movement ( Closed / Open) adopts Hydraulic system to control.
3. Oil pump motor adopts 11kw WNM BRAND MOTOR. 380V, 50HZ 3 Phase.
4. Main Pneumatic components use Japan SMC original solenoid valve,it is more stable.
5. Feeding Sheet device adopts 3.7 kw to control.
6. Plug device adopts 160*180 cylinder.
7. The lubrication system adopts automatic lubrication device, positive displacement oil, stable and efficient, and can be monitored in real time.
8. The chain adopts combined structure,with cooling device, the width can be automatic adjust.
9. Heating system: Adopts Jiangsu brand infrared heater 650/ 800W. Stainless up Down heating. Upper 8×10, Down 8×9.Heating oven can go in/ out.
10. Air source filter adopts triad air source filter air flow size adjustable.
11. 4 guide pillar Φ 80 mm.It is made of 45 # steel after tempering after fine grinding hard chromium plating surface.
Packaging & Shipping
| Package detail | Wooden case |
| Package size | |
| Gross weight | 5T |
