Quick Details
-
Application:
-
LANDSCAPE
-
Lamp Luminous Efficiency(lm/w):
-
20, 7
-
Product Weight（kg）:
-
0.39
-
Input Voltage(V):
-
DC12V/DC24V
-
Lamp Luminous Flux(lm):
-
20
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ULED
-
Model Number:
-
UL-E003-0300(RGB)-A
-
Item Type:
-
Underground Lights
-
Lamp Powe:
-
3 W
-
Input Voltage:
-
DC12V/24V
-
Color:
-
RGB
-
Beam angle:
-
120 Degree
-
Material:
-
Anodizing aluminum
-
Warranty:
-
3 Years
Quick Details
-
Color Temperature(CCT):
-
RGB, RGB
-
Warranty(Year):
-
3
-
Lamp Body Material:
-
Aluminum
-
Application:
-
LANDSCAPE
-
Lamp Luminous Efficiency(lm/w):
-
20, 7
-
Product Weight（kg）:
-
0.39
-
Input Voltage(V):
-
DC12V/DC24V
-
Lamp Luminous Flux(lm):
-
20
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ULED
-
Model Number:
-
UL-E003-0300(RGB)-A
-
Item Type:
-
Underground Lights
-
Lamp Powe:
-
3 W
-
Input Voltage:
-
DC12V/24V
-
Color:
-
RGB
-
Beam angle:
-
120 Degree
-
Material:
-
Anodizing aluminum
-
Warranty:
-
3 Years
Product Features
RGB dmx 3w ip67 waterproof outdoor floor buried recessed concrete light
Data Sheet
|
General Data
|
|
|
|
Item No.
|
UL-E003-0300(RGB)-A
|
|
|
Power
|
3 Watts
|
|
|
LED type
|
6 PCS 5050 3in1 RGB SMD LED
|
|
|
Luminous flux
|
20 l m (All LEDs on)
|
|
|
CCT
|
RGB
|
|
|
CRI
|
80+
|
|
|

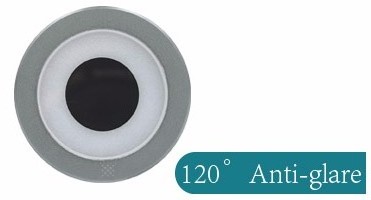

Beam angle
|
120°
|
|
|
Dimension
|
60x34 mm ( Diameter x Height)
|
|
|
Cut out
|
58 mm
|
|
|
Net weight
|
0.24 kgs
|
|
|
Warranty
|
3 years
|
|
|
Certifications
|
CE, RoHS
|
|
|
Electrical Data
|
|
|
|
Input voltage
|
DC12V-DC24V
|
|
|
Insulation class
|
Class III
|
|
|
Cable
|
1PC rubber cable 1.5M H05RN-F 4x0.75mm square
|
|
|
Driver
|
Low voltage constant current output ,excluding the transformer
|
|
|
Construction Data
|
|
|
|
IP rating
|
IP67 Waterproof
|
|
|
IK rating
|
IK06
|
|
|
Housing
|
Solid Passivated (Anodizing) Aluminum CNC machined
|
|
|
Protection finishing
|
20~25μm thickness anodized film for housing .Dark grey standard.
|
|
|
Trim
|
Tempered glass painted in milky white
|
|
|
Glass
|
Tempered Glass.T=5.5mm.
|
|
|
Accessories
|
|
|
|
Mounting box
|
Anti-corrosion grey PVC
|
|
Detailed Pictures

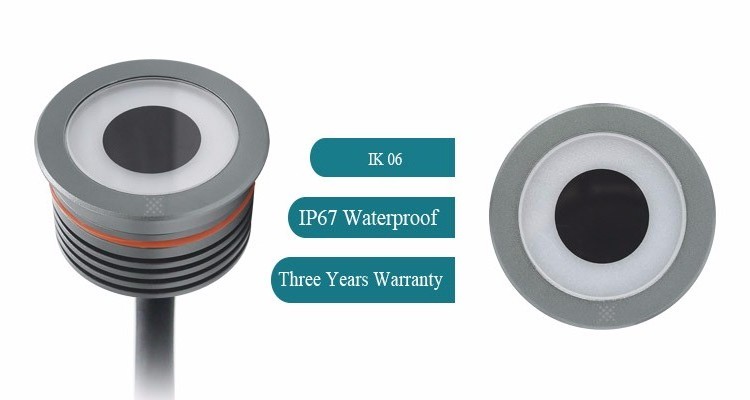

Passivated aluminum front cover and waterproof IP67 instead of IP65 deign, High loading capacity IK06,and 3 years warranty.
Illumination picture showcase
Light distribution cureve
Lux distance curve
Dimension
