Quick Details
-
Dual Digits:
-
Dual Digits 7 Segment LED Display
-
Anode/Cathode:
-
Common Anode / Common Cathode
-
Stock:
-
rich
-
Original:
-
made in China
-
Logo:
-
OEM
-
color:
-
red
-
Product name:
-
LED digital tube
-
Size:
-
34*24*10.5mm
-
Product model:
-
Common anode/cathode
Quick Details
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Sample:
-
Free sample is available
-
Dual Digits:
-
Dual Digits 7 Segment LED Display
-
Anode/Cathode:
-
Common Anode / Common Cathode
-
Stock:
-
rich
-
Original:
-
made in China
-
Logo:
-
OEM
-
color:
-
red
-
Product name:
-
LED digital tube
-
Size:
-
34*24*10.5mm
-
Product model:
-
Common anode/cathode
|
Specification:
1. Chip material: GaAlAs 2. Forward voltage: 1.6-2.8V 3. Screen dimension: 25.0*19.0*8.0mm 4. Peak emission Wavelength: 660nm 5. Luminous intensity: 25-40mcd 6. Power dissipation per segment: 100mW 7. Applications: Audio equipment, instrument panels, digital read out display.
Feature:
1. 0.56″ (inch) digit height. 2. Excellent segment uniformity. 3. Sold state reliability. 4. Industrial standard size. 5. Low power consumption. 6. The product itself will remain within ROHS compliant version.
Description:

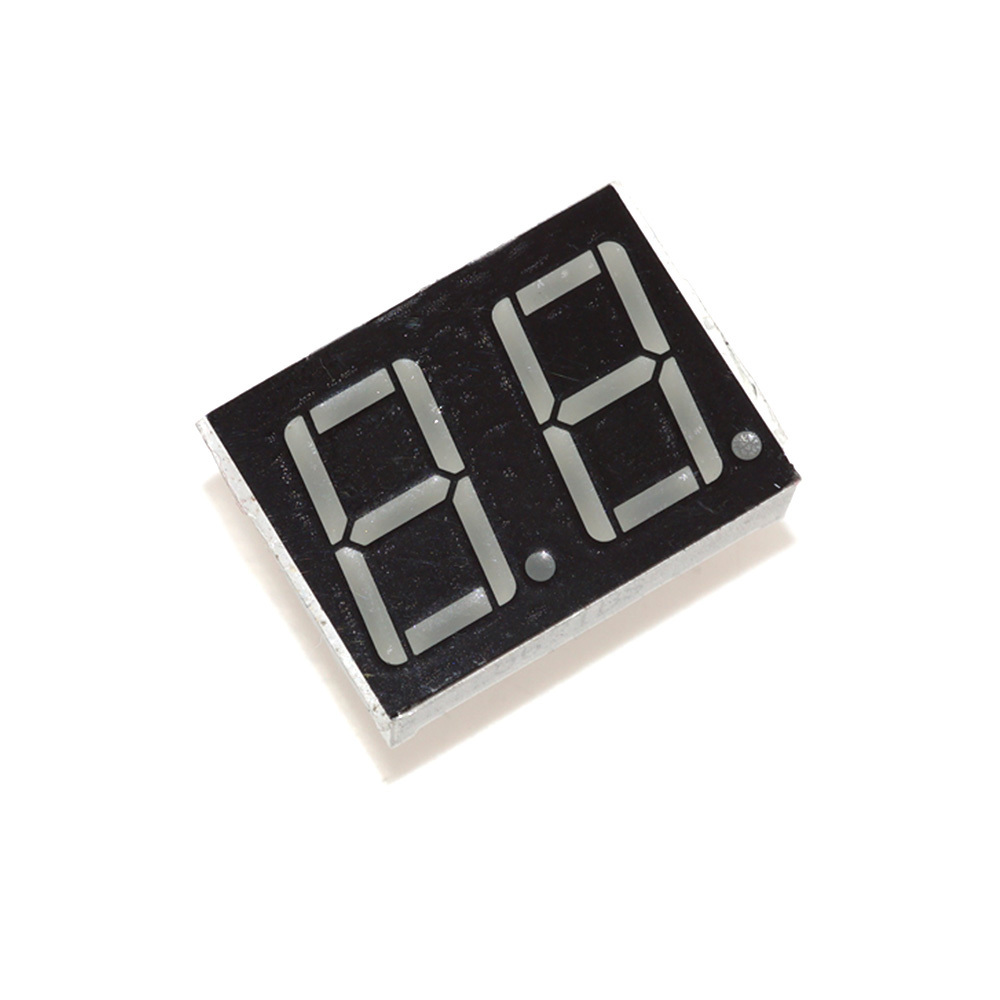

1. The DL2-562XRB series is a lager 14.20mm (0.56″) high seven segments display designed for viewing distances up to 7 meters. 2. These displays provide excellent reliability in bright ambient light. 3. These devices are made with white segments and black surface.
Package List:
1 * 0.56 Inch Dual Digit 7 Segment LED Display 10 pin |
|
|
|
|||
