Quick Details
-
Model Number:
-
FS-81-SP-CS
-
Max. Current:
-
10A
-
Degree of Protection:
-
IPX8
-
Certification:
-
IEC60601
-
Operating Frequency:
-
60 Ops/Min
-
Insulation Resistance:
-
>100MΩ@500VDC
-
Contact Resistance:
-
<25MΩ(Initial)
-
Mechanical Life:
-
1,000,000
-
Electrical Life:
-
500,000
-
Operating Temperature:
-
-30°C to +80°C
Quick Details
-
Max. Voltage:
-
300VAC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SUNS
-
Model Number:
-
FS-81-SP-CS
-
Max. Current:
-
10A
-
Degree of Protection:
-
IPX8
-
Certification:
-
IEC60601
-
Operating Frequency:
-
60 Ops/Min
-
Insulation Resistance:
-
>100MΩ@500VDC
-
Contact Resistance:
-
<25MΩ(Initial)
-
Mechanical Life:
-
1,000,000
-
Electrical Life:
-
500,000
-
Operating Temperature:
-
-30°C to +80°C
| Features: | |
| 1)Aluminum alloy die cast base | |
| 2)Galvanically separated contacts(for SP ,SLonly) | |
| 5)Positive Opening of NC contacts(for SP ,SL only) | |
| 6 ) UL/cUL approved (E216958) | |
| 7)IEC60601 certification issued by TUV for medical applications | |
| Specifications: | |
| Operating Speed: | 60 ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 10A/300V AC |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1.0×10 6 (operations) |
| Electrically 5×10 5 (operations) | |
| Operating Temperature: | -30~+80℃(-22~+176°F) |
| Degree of Protection: | IPX8 |

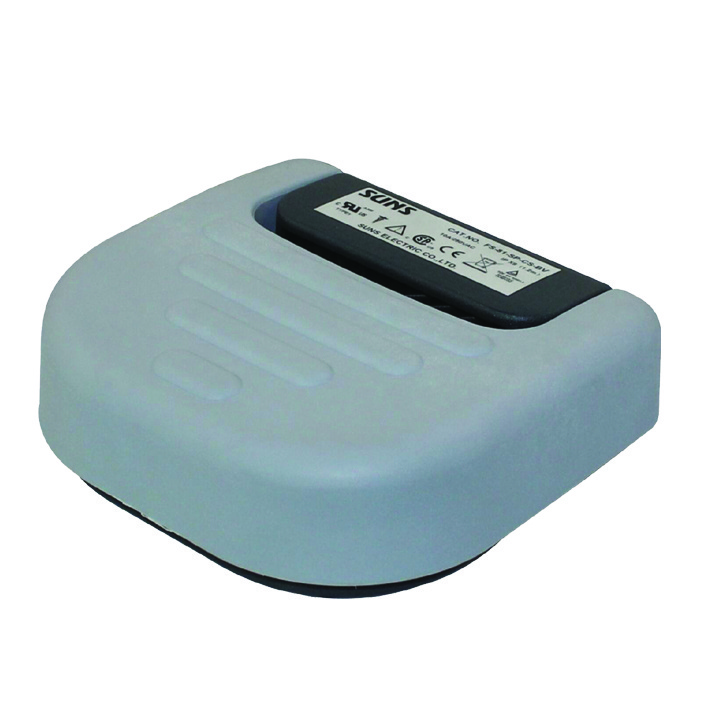

Medical Foot Switch
