PRECISE CONTROL
The packaging machine precisely controls the blanking action without wasting materials.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
450
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHLB
-
Dimension(L*W*H):
-
1310*1470*2110mm
-
Product name:
-
Automatic Triangle Tea Bag Packing Machine
-
Measuring scope:
-
1-7g
-
Packing material:
-
Nylon, PET, Non-woven fibries, Corn fiber
-
Sealing type:
-
Three-dimensional Sealing
-
Bag size:
-
L(60-80)mm*W(40-80)mm
-
Packing speed:
-
40 Bags/min
-
Total power:
-
AC220V/50Hz/3.0KW
-
Gas source:
-
≥0.6m³/min
-
After-sales Service Provided:
-
1 Years
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, SLITTING, counting
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper, Metal, Nylon, PET, Non-woven fibries, Corn fiber
-
Weight (KG):
-
450
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHLB
-
Dimension(L*W*H):
-
1310*1470*2110mm
-
Product name:
-
Automatic Triangle Tea Bag Packing Machine
-
Measuring scope:
-
1-7g
-
Packing material:
-
Nylon, PET, Non-woven fibries, Corn fiber
-
Sealing type:
-
Three-dimensional Sealing
-
Bag size:
-
L(60-80)mm*W(40-80)mm
-
Packing speed:
-
40 Bags/min
-
Total power:
-
AC220V/50Hz/3.0KW
-
Gas source:
-
≥0.6m³/min
-
After-sales Service Provided:
-
1 Years
-
Advantage:
-
Easy Operation High Efficiency

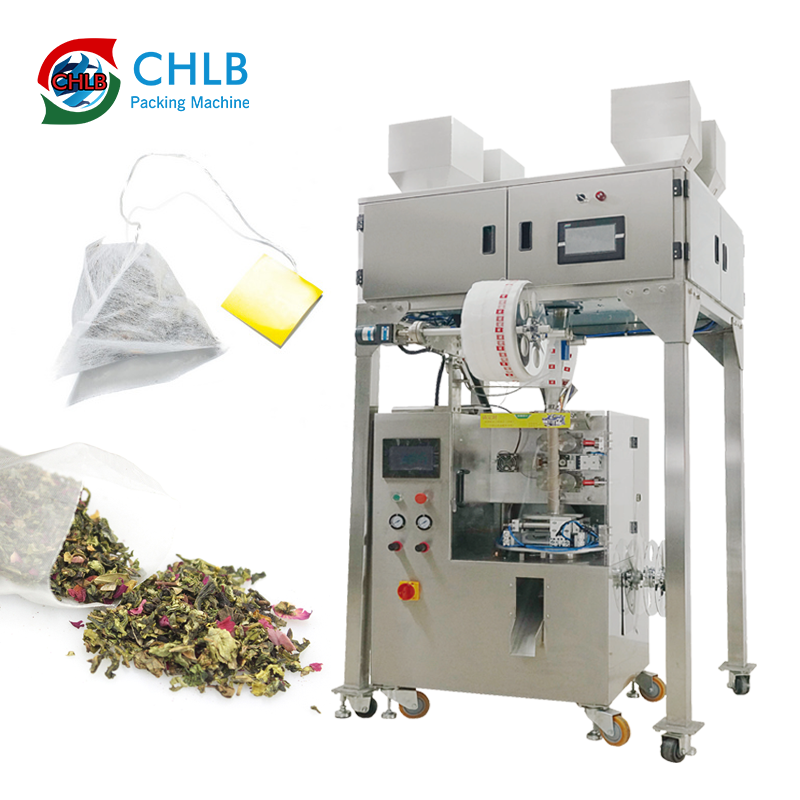

Multi-head Scale Pyramid Bag Green Tea Packing Machine Tea Triangle Bag Filling Packaging Machine
Machine Features:
1.
Ultrasonic seamless sealing cut off to produce a triangle tea bag with beautiful bag shape and firm sealing.
2.
The inner bag and outer bag packaging machine can be used separately, flexible use, strong practicability.
3.
The outer bag is packaged with heat-sealable composite material, the pattern can be customized according to customer requirements, and the automatic positioning and cutting can be achieved.
4.
Stainless steel sealed body, anti-corrosion and dust-proof.
5.
Automatic quantitative measurement method, easy to change packaging specifications and types.
6.
Using PLC programmable control, touch screen operation, more convenient to use and simpler to operate.
7.
Nitrogen-filled device can be installed to extend product retention period and freshness.
8.
The triangle tea bag packaging machine can be equipped with a random printing device for the production date.
|
Technical Parameters Of Triangle Tea Bag Machine
|
|
|
|
|
||||
|
Measuring Scope
|
|
1-7g
|
|
|
||||
|
Bag Size
|
|
L(60-80)mm*W(40-80)mm
|
|
|
||||
|
Packing Speed
|
|
40 bags/min
|
|
|
||||
|
Dimension(L*W*H)
|
|
1310*1470*2110mm
|
|
|
||||
|
Weight
|
|
450KG
|
|
|
||||
|
Total Power
|
|
AC220V/50Hz/3.0KW
|
|
|
||||
|
Gas source
|
|
≥0.6m³/min
|
|
|
||||
Applications of Packing Machine:
The triangle tea bag packing machine has a wide range of applications, such as: green tea, black tea, flower tea, health tea, and other small granular materials, the finished bags are formed into triangles.
Advantages of Triangle Tea Bag:
1. After the hot water is brewed, there is enough space for the tea leaves to fully expand and maintain the original taste of the tea leaves.
2. It can be brewed multiple times without damaging the tea bags.
3. The transparent packaging material allows consumers to clearly see the tea materials.
MACHINE DETAILS
Cooperate with dispensing machine to connect the feeding inlet, no need manual operation, and the feeding is fast and intelligent.
Ultrasonic seamless sealing, smooth incision, beautiful bag shape.
ELECTRONIC SCALE MEASUREMENT
Adopt two-stage feeding method which can be mixed and packed with various materials.
FEEDBACK
COMPANY INFORMATION
PRODUCTION PROCESS
CERTIFICATIONS
EXHIBITION & CUSTOMER PHOTOS
PACKAGING & SHIPPING
Click this link or the picture below to contact us！
FAQ
Q1: Are you a factory?
Q2: What info you need before confirming the machine?
A1: Yes, we established in 1998 as a manufacturing supplier with 25 years experience. We can provide you with professional product packaging solutions.
Q2: What info you need before confirming the machine?
A2: Your product picture, your product size(length,width,height,weight etc.),packing type(Back seal / quad seal / 3-side seal / 4-side seal etc),your product samples(for testing).
Q3: What is the material of contact food/material parts?
A3: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q4: Can this machine make different bag sizes?
A4: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q5: Does your company accept OEM?
A5: Yes, we have a professional design and technical team to accept customization.
Q6: When you can deliver the machine after the order is placed?
A6: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.
Q7: How about your warranty?
A7: We provide 13 months warranty, starts from the issue date of bill of lading.
Q8: What can you provide after service?
A8: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training.
Q3: What is the material of contact food/material parts?
A3: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q4: Can this machine make different bag sizes?
A4: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q5: Does your company accept OEM?
A5: Yes, we have a professional design and technical team to accept customization.
Q6: When you can deliver the machine after the order is placed?
A6: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.
Q7: How about your warranty?
A7: We provide 13 months warranty, starts from the issue date of bill of lading.
Q8: What can you provide after service?
A8: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training.
