Quick Details
-
Model Number:
-
Growatt Meters, Smart Meters
-
Output Voltage:
-
230V, 230V
-
Dimensions:
-
36*99*63MM
-
Warranty:
-
5 years
-
Application:
-
Solar System
-
Frequency:
-
50HZ/60HZ
-
Protection:
-
IP51
-
Certificate:
-
CE/TUV
-
Power Grid Type:
-
1P2W/3P4W
-
Product Keywords:
-
Smart Meter
-
Accuracy Class:
-
0.5
Quick Details
-
Phase:
-
Three Phase
-
Place of Origin:
-
China
-
Brand Name:
-
Growatt
-
Model Number:
-
Growatt Meters, Smart Meters
-
Output Voltage:
-
230V, 230V
-
Dimensions:
-
36*99*63MM
-
Warranty:
-
5 years
-
Application:
-
Solar System
-
Frequency:
-
50HZ/60HZ
-
Protection:
-
IP51
-
Certificate:
-
CE/TUV
-
Power Grid Type:
-
1P2W/3P4W
-
Product Keywords:
-
Smart Meter
-
Accuracy Class:
-
0.5
Product Description
Specification
|

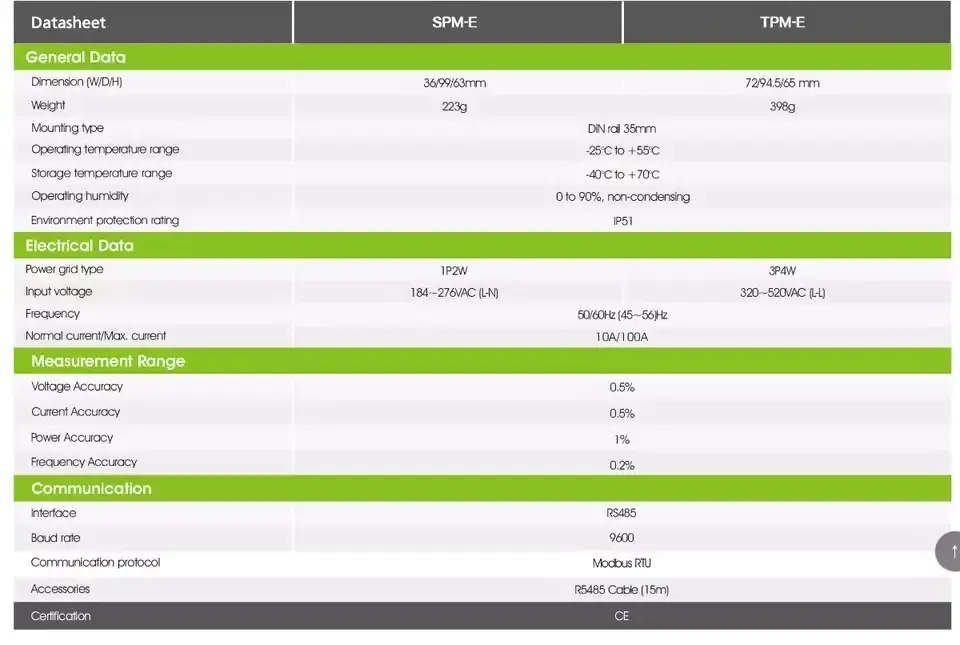

Datasheet
|
SPM-E
|
TPM-E
|
||
|
General Data
|
|
|
||
|
Dimension (W/D/H)
|
36/99/63mm
|
72/94.5/65 mm
|
||
|
Weight
|
223g
|
398g
|
||
|
Mounting type
|
DIN rail 35mm
|
|
||
|
Operating temperature range
|
-25°C to +55°C
|
|
||
|
Storage temperature range
|
-40°C to +70°C
|
|
||
|
Operating humidity
|
0 to 90%, non-condensing
|
|
||
|
Environment protection rating
|
IP51
|
|
||
|
Electrical Data
|
|
|
||
|
Power grid type
|
1P2W
|
3P4W
|
||
|
Input voltage
|
184~276VAC (L-N)
|
320~520VAC (L-L)
|
||
|
Frequency
|
50/60Hz (45~56)Hz
|
|
||
|
Normal current/Max. current
|
10A/100A
|
|
||
|
Measurement Range
|
|
|
||
|
Voltage Accuracy
|
0.5%
|
|
||
|
Current Accuracy
|
0.5%
|
|
||
|
Power Accuracy
|
1%
|
|
||
|
Frequency Accuracy
|
0.2%
|
|
||
|
Communication
|
|
|
||
|
Interface
|
RS485
|
|
||
|
Baud rate
|
9600
|
|
||
|
Communication protocol
|
Modbus RTU
|
|
||
|
Accessories
|
R5485 Cable (15m)
|
|
||
|
Certification
|
CE
|
|
||
