Quick Details
-
Brand Name:
-
gofern
-
Model Number:
-
GF12-90-DE
-
Input Voltage:
-
110 ~ 264VAC
-
Output Frequency:
-
N
-
Type:
-
led driver
-
Appearance:
-

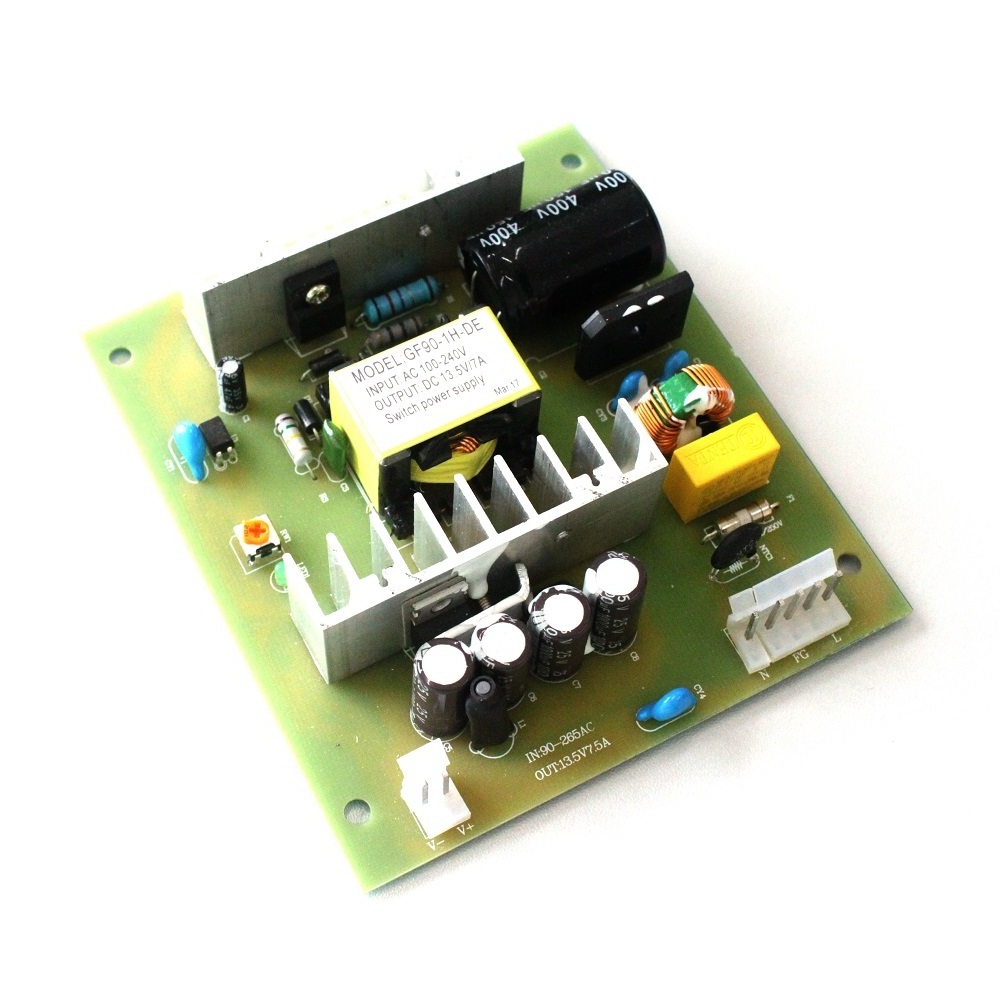

Open frame power supply
-
Dimension:
-
90*90*35(L'W'H')
-
Product weight:
-
0.2kg
-
Pcs/carton:
-
40pcs/carton
-
Mounting holes:
-
Four
-
Customizable:
-
YES
-
Certificate:
-
CE , RoHS
-
Warranty:
-
1 years
-
Safety Compliance:
-
EMC & LVD
Quick Details
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gofern
-
Model Number:
-
GF12-90-DE
-
Input Voltage:
-
110 ~ 264VAC
-
Output Frequency:
-
N
-
Type:
-
led driver
-
Appearance:
-
Open frame power supply
-
Dimension:
-
90*90*35(L'W'H')
-
Product weight:
-
0.2kg
-
Pcs/carton:
-
40pcs/carton
-
Mounting holes:
-
Four
-
Customizable:
-
YES
-
Certificate:
-
CE , RoHS
-
Warranty:
-
1 years
-
Safety Compliance:
-
EMC & LVD
| MODEL | GF12-90-DE | |||||
| OUTPUT | OUT VOLTAGE RANGE | 12V | ||||
| OUTPUT POWER | 90W | |||||
| CONSTANT CURRENT | 7.5A | |||||
| RIPPLE & NOISE(max.) | <1% | |||||
| LINE REGULATION | ±1.0% | |||||
| Precision constant current | ±1.0% | |||||
| CONNECTION TERMINAL | LED+, LED- | |||||
| SETUP,RISE TIME | 50ms at full load | |||||
| HOLD TIME | 600ms | |||||
| INPUT | VOLTAGE RANGE | 110 ~ 264VAC | ||||
| AC CURRENT(Typ.) | Max 0.8A/ 240VAC | |||||
| CONNECTION TERMINAL | AC-L,AC-N | |||||
| FREQUENCY RANGE | 47-63Hz | |||||
| EFFICIENCY(Typ.) | 90% | |||||
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |||||
| LEAKAGE CURRENT | <0.5mA/240VAC | |||||
| POWER FACTOR | ≥ 0.9 | |||||
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down,auto recovery | ||||
| OVER VOLTAGE | Protection: burst mode,load of abnormal conditions removed the automatic recovery | |||||
| SHORT CIRCUIT | voltage off and reset input for recovers | |||||
| ENVIRONMENT | WORKING TEMP. | -0℃ ~ +45℃ (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/℃ | |||||
| COOLING METHOD | BY FREE AIR CONVECTION | |||||
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P:3.0KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||||
| CERTFICATE STANDARD | Compliance to EN60950 | |||||
| EMC | Compliance to EN55015 | |||||
| OTHERS | DIMENSION | 90*90*35(L'W'H') | ||||
| WEIGHT | 0.2Kg,40PCS/Carton | |||||
