1. Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2. Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of
advertising terms.
3. Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial
marble,grave, plastic board, PVC, board etc.
4. Other industry: image engraving, embossing, craft and gift industry
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3620mm*2000mm*2000mm
-
Weight (KG):
-
2100
-
X,Y,Z Working Area:
-
1300X2500mm
-
Guide Rail:
-
Taiwan Square Guid Rail with X,Y,Z axis
-
XY Z Transmission:
-
Gear rack with X and Y axis Imported Ball Screw with Z axis
-
Spindle Motor:
-
9KW HQD spindle special for tool changer
-
Max. Speed:
-
0-45000mm/min
-
Max. Working Speed:
-
0-25000mm/min
-
Motor:
-
Leadshine 1500w Servo Motor
-
Lathe Table:
-
Vacuum table with 6 sections +6 vacuum cups
-
Tool sensor:
-
Auto tool sensor
-
Collet:
-
ER32
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3620mm*2000mm*2000mm
-
Weight (KG):
-
2100
-
X,Y,Z Working Area:
-
1300X2500mm
-
Guide Rail:
-
Taiwan Square Guid Rail with X,Y,Z axis
-
XY Z Transmission:
-
Gear rack with X and Y axis Imported Ball Screw with Z axis
-
Spindle Motor:
-
9KW HQD spindle special for tool changer
-
Max. Speed:
-
0-45000mm/min
-
Max. Working Speed:
-
0-25000mm/min
-
Motor:
-
Leadshine 1500w Servo Motor
-
Lathe Table:
-
Vacuum table with 6 sections +6 vacuum cups
-
Tool sensor:
-
Auto tool sensor
-
Collet:
-
ER32

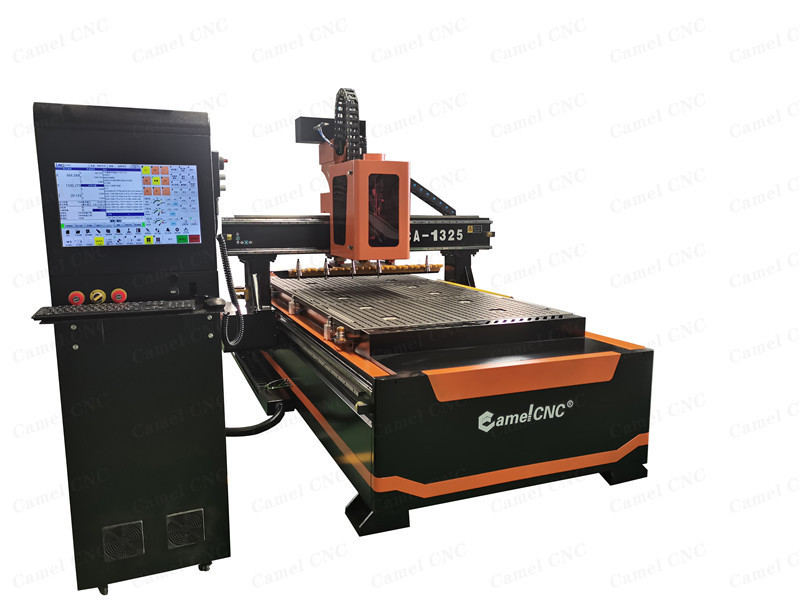

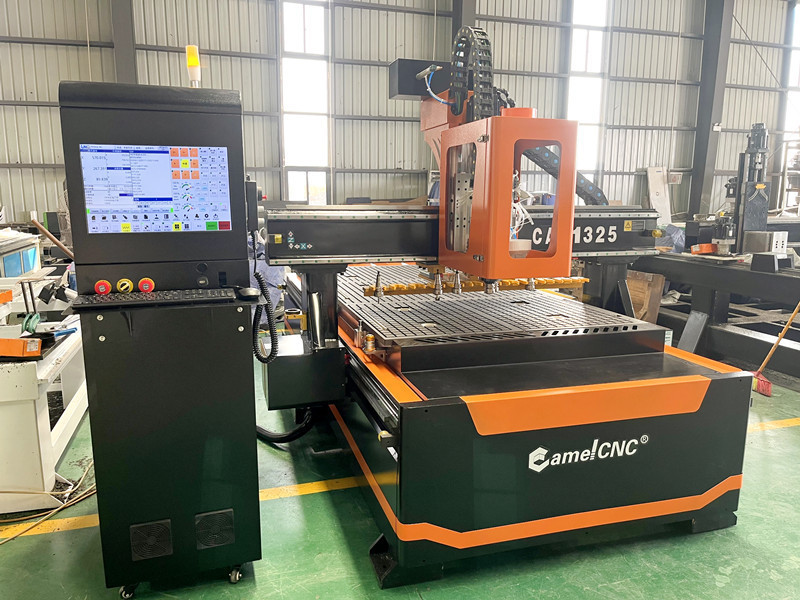

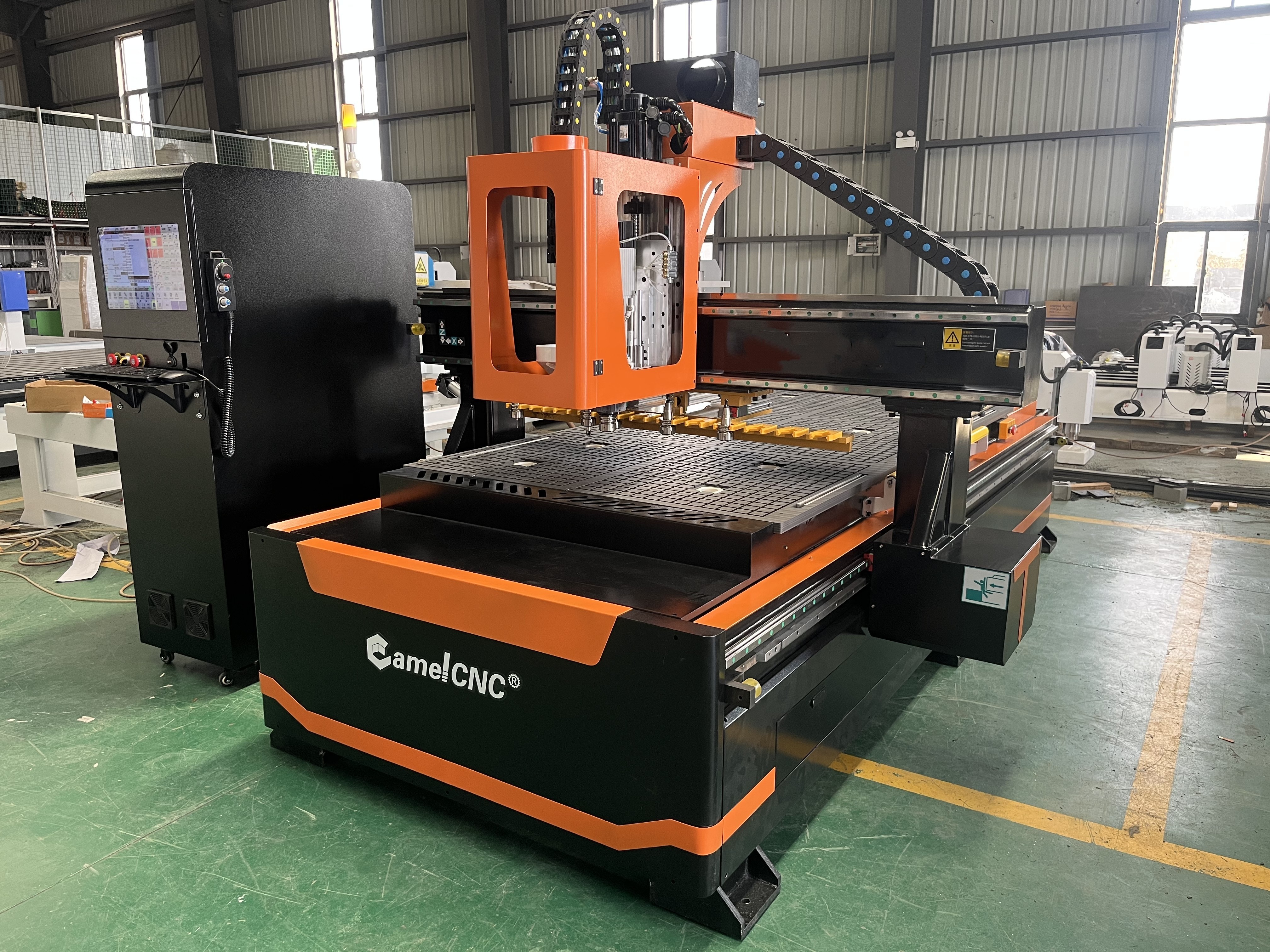

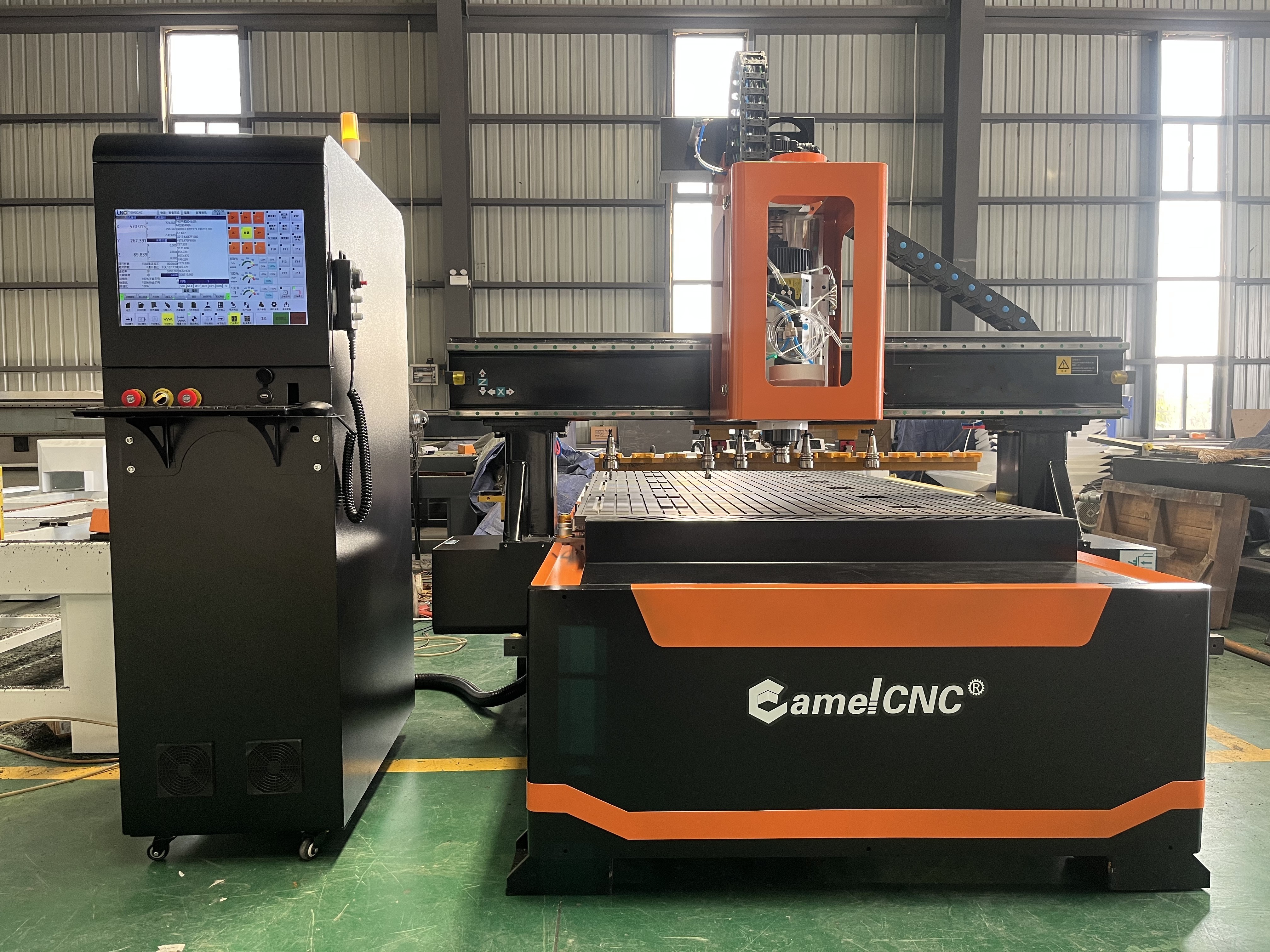

1325 ATC Wood Door Engraving CNC Router Machine/Furniture Industry Using hot sales
Specification of ATC CNC Router
* Super quality 9KW Air cooling Auto-tool changer spindle.
* Taiwan Hiwin linear guide railkeep high working precision
* Famous servo motor and driver ensures machine to run with fast speed and low noise.
* With 12pieces auto-tool changer and Autotool sensor.
* Vacuum table and vacuum pump, and 0kw dust collector.
* Taiwan LNC ATCcontrolling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
* High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of
working with fast and high efficiency.
* Taiwan Hiwin linear guide railkeep high working precision
* Famous servo motor and driver ensures machine to run with fast speed and low noise.
* With 12pieces auto-tool changer and Autotool sensor.
* Vacuum table and vacuum pump, and 0kw dust collector.
* Taiwan LNC ATCcontrolling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
* High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of
working with fast and high efficiency.
Technical Parameter of ATC CNC Router
|
Name
|
Specification
|
|
X,Y,Z Working Area
|
1300X2500X200mm
|
|
Table Size
|
1855X3340mm
|
|
X,Y,Z,Traveling Positioning
Accuracy |
±0.03/300mm
|
|
X,Y,Z,Repositioning Positioning Accuracy
|
±0.05mm
|
|
Lathe Bed
|
Strong lathe bed
|
|
Gantry
|
Steel structure gantry design
|
|
Guide Rail
|
Taiwan Hiwin Square Rail with X,Y,Z axis
|
|
XY Z Transmission
|
Gear rack with X and Y axis
Imported Ball Screw with Z axis |
|
Spindle Motor
|
9kw HQD Air cooling spindle special for tool changer
|
|
Max. Speed
|
0-45000mm/min
|
|
Max. Working Speed
|
0-25000mm/min
|
|
Spindle Speed
|
0-24000RPM
|
|
Drive Mode
|
Servo system
|
|
Working Voltage
|
AC220V/380V, 50/60Hz
|
|
Command
|
G Code, *uoo, *mmg, *plt
|
|
Inverter
|
11KW Fuling inverter
|
|
Control System
|
Taiwan LNC control system
|
|
Typeset Software
|
ARTCAM(can support any G-code software)
|
|
Motor
|
Leadshine Servo Motor
|
|
Driver
|
Servo Driver
|
|
Tools cooling
|
OIL sprayer pump
|
|
Lathe Table
|
Vacuum table with 8 sections +6 vacuum cups
|
|
Vacuum Pump
|
5.5KW VACUUM Pump
|
|
Air compressor
|
3.0KW
|
|
Tool Magazine
|
8pcs ISO30 tool holder
|
|
Dust Collector
|
3.0KW
|
|
Electricity cabinet
|
Independent Cabinet
|
|
Tool sensor
|
TOOL SENSOR
|
|
Collet
|
ER32
|
|
X,Y Working Delicacy
|
<0.01mm
|
|
Software
|
Ucancam, Artcam
|
|
Running circumstance
|
Temperature: 0℃～45℃, Relative humidity: 30%～75%
|
Product Details of ATC cnc router
Taiwan LNC Control system
Dust Collector
Fuling Inverter
HQD ATC spindle
Inner Cabinet
Japan Shimpo Reducer
Leadshine servo system
Movable Tool Changer Braket
Vacuum Pump
Application of ATC CNC Router
Packaging&Transportation
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dustproof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like
5) Outside: Marked packing size, model, weight, and other information
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like
5) Outside: Marked packing size, model, weight, and other information
