Quick Details
-
Brand Name:
-
JK
-
Model Number:
-
JK-M15
-
Max. Current:
-
8A~4A, 1.5A
-
Material:
-
PP or Stainess Steel
-
Color:
-
White, Metal Grey,Black
-
Rated Voltage:
-
110VDC, 220VDC
-
Rated Power:
-
10W , 50W
-
Using Temperature:
-
~30C ~+105C
-
Size:
-
Can be maken according to your request
-
Type code:
-
JK-M15,JK-70AB
-
Certificate:
-
CE
-
Advantage:
-
Automaitc and application costis very low
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
250V~380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JK
-
Model Number:
-
JK-M15
-
Max. Current:
-
8A~4A, 1.5A
-
Material:
-
PP or Stainess Steel
-
Color:
-
White, Metal Grey,Black
-
Rated Voltage:
-
110VDC, 220VDC
-
Rated Power:
-
10W , 50W
-
Using Temperature:
-
~30C ~+105C
-
Size:
-
Can be maken according to your request
-
Type code:
-
JK-M15,JK-70AB
-
Certificate:
-
CE
-
Advantage:
-
Automaitc and application costis very low
-
Certification:
-
CE

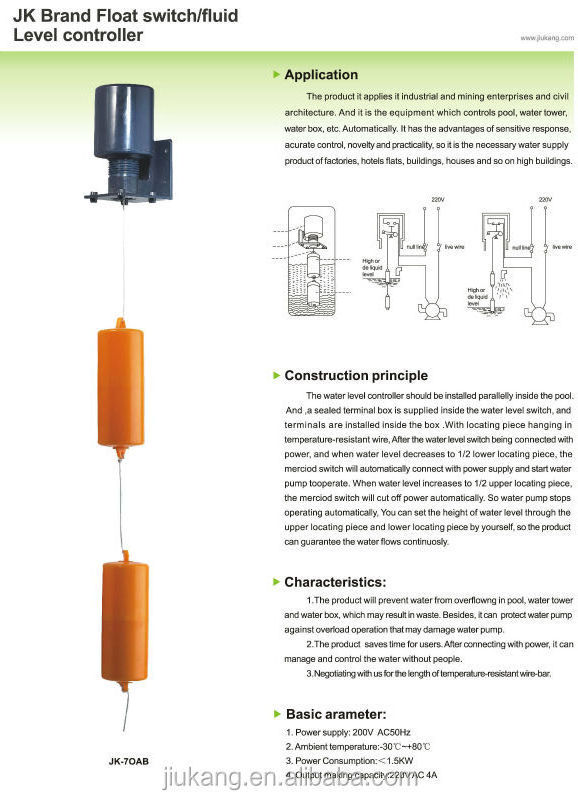

Product Description
- Microswitch: 10(8)A 250V~10(4)A 380V
- Switch currency: +++ ≥50 000switch workings tested by VDE specialisation
- Protective connection: T 70U
- Protection: waterproof
- Max.temperature: 70°C
- Working pressure: max.1bar
- Circuitbreaking capacity: Directly KW with 250V
- Standard Cable Length: 5m ~ 100mm or Accorrding to customer’s request
- Float: Polypropylene
- Cable:polypropylene Jacket
- Counter Weight: Polypropylene Sealed Housing
- Cable Material: HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2)
