Quick Details
-
Model Number:
-
GH11 10KVAL
-
Weight:
-
18KG
-
Product name:
-
online UPS
-
keywords:
-
10kva ups
-
Inverter to Bypass:
-
4 ms (Typical)
-
waveform:
-
pure sine wave
-
transfer time:
-
Zero
-
max charge current:
-
1A
-
nverter to Bypass:
-
4 ms (Typical)
-
Certificate:
-
CE
-
AC Voltage Regulation:
-
± 1%
-
warrenty:
-
12 months
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SKE
-
Model Number:
-
GH11 10KVAL
-
Weight:
-
18KG
-
Product name:
-
online UPS
-
keywords:
-
10kva ups
-
Inverter to Bypass:
-
4 ms (Typical)
-
waveform:
-
pure sine wave
-
transfer time:
-
Zero
-
max charge current:
-
1A
-
nverter to Bypass:
-
4 ms (Typical)
-
Certificate:
-
CE
-
AC Voltage Regulation:
-
± 1%
-
warrenty:
-
12 months

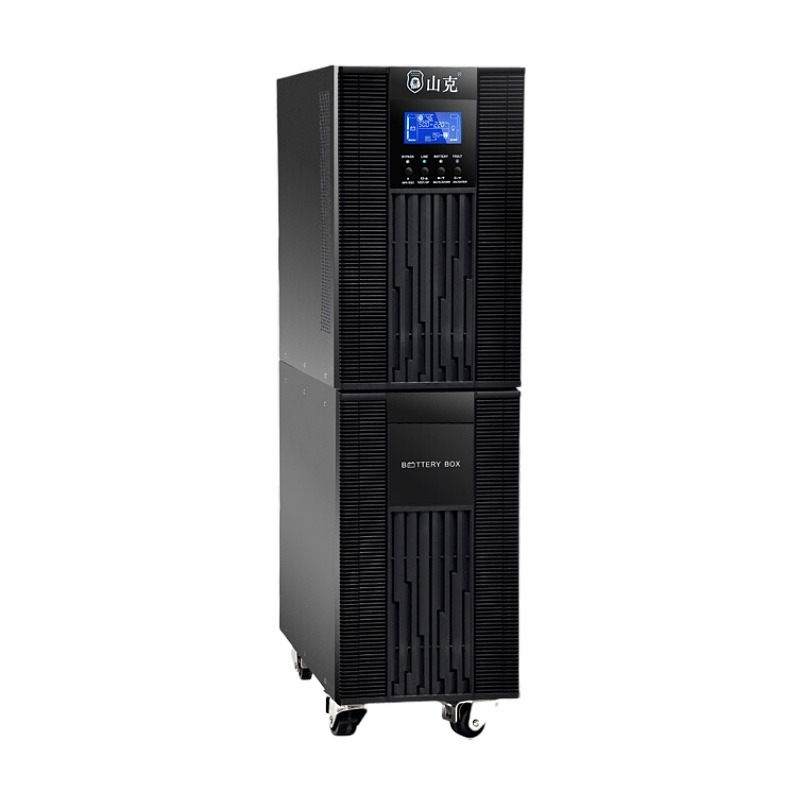

SKE online ups power supply 10kva 8kw ups
Product Description
| MODEL | GH11- 6K(L) | GH11- 10K(L) | |
| PHASE | 1 phase in / 1 phase out | ||
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W | |
| INPUT | |||
| Nominal Voltage | 208/220/230/240VAC | ||
| Low Line Loss |
110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load |
||
|
120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load |
|||
| High Line Loss | 300 VAC ± 3% | ||
| 290 VAC ± 3% | |||
| 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz | |||
| ≥ 0.99 @ 100% load | |||
| OUTPUT | |||
| 208/220/230/240VAC | |||
| ± 1% | |||
|
Frequency Range
(Synchronized Range) |
46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz | ||
| 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | |||
| Current Crest Ratio | 3:1 (max.) | ||
| Harmonic Distortion |
≤ 3 % THD (Linear Load)
≤ 6 % THD (Non-linear Load) |
||
|
Transfer Time
(Line mode) |
Zero | ||
| Zero | |||
| Pure Sinewave | |||
| EFFICIENCY | |||
| Line Mode | 0.89 | 0.9 | |
| Battery Mode | 0.88 | 0.89 | |
| BATTERY | |||
| Battery Type | 12 V / 7 AH | 12 V / 9 AH | |
| Numbers | 16 | 16 | |
| 9 hours recover to 90% capacity | |||
|
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
||
| 218.4 VDC ± 1% | |||
| Battery Type | Depending on applications | ||
| Numbers | 16-20pcs(adjustable) | ||
| Charging Current |
Default:4.0 A ± 10%,
Max.:6.0A ± 10% |
Default:4.0 A ± 10%,
Max.:6.0A ± 10% |
|
| 273 VDC ± 1% (based on 20 pcs batteries) | |||
| INDICATORS | |||
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
||
| ALARM | |||
| Battery Mode | Sounding every 4 seconds | ||
| Overload | Sounding twice every second | ||
| Fault | Continuously sounding | ||
| PHYSICAL | |||
| Dimension | 369 x 190 x 688 | 442 x 190 x 688 | |
| Net Weight (kgs) | 61 | 75 | |
| Dimension | 369 x 190 x 318 | 442 x 190 x 318 | |
| Net Weight (kgs) | 12 | 18 | |
| ENVIRONMENT | |||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | ||
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter | |
| MANAGEMENT | |||
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8,
Linux, Unix, and MAC |
||
| Optional SNMP | Power management from SNMP manager and web browser | ||
