Quick Details
-
Application:
-
Garden
-
Support Dimmer:
-
Yes by DC12V Dimmer
-
Lamp Luminous Flux(lm):
-
87
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TMDM-1W-15
-
LED Light Source:
-
Epistar
-
Product name:
-
mini recessed stair light
-
Power:
-
1W led light
-
CCT:
-
2700-3000K/4000-4500K/6000-6500K
-
Dimension:
-
D20 x H26 mm
-
IP grade:
-
IP67 mini led light
-
Beam angle:
-
120
-
Item name:
-
IP67 LED spotlight
-
Type:
-
Mini spotlight
-
Certification:
-
CE RoHS
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
3
-
Lamp Body Material:
-
stailess steel + Aluminum
-
Application:
-
Garden
-
Support Dimmer:
-
Yes by DC12V Dimmer
-
Lamp Luminous Flux(lm):
-
87
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TMDM-1W-15
-
LED Light Source:
-
Epistar
-
Product name:
-
mini recessed stair light
-
Power:
-
1W led light
-
CCT:
-
2700-3000K/4000-4500K/6000-6500K
-
Dimension:
-
D20 x H26 mm
-
IP grade:
-
IP67 mini led light
-
Beam angle:
-
120
-
Item name:
-
IP67 LED spotlight
-
Type:
-
Mini spotlight
-
Certification:
-
CE RoHS
Products Description

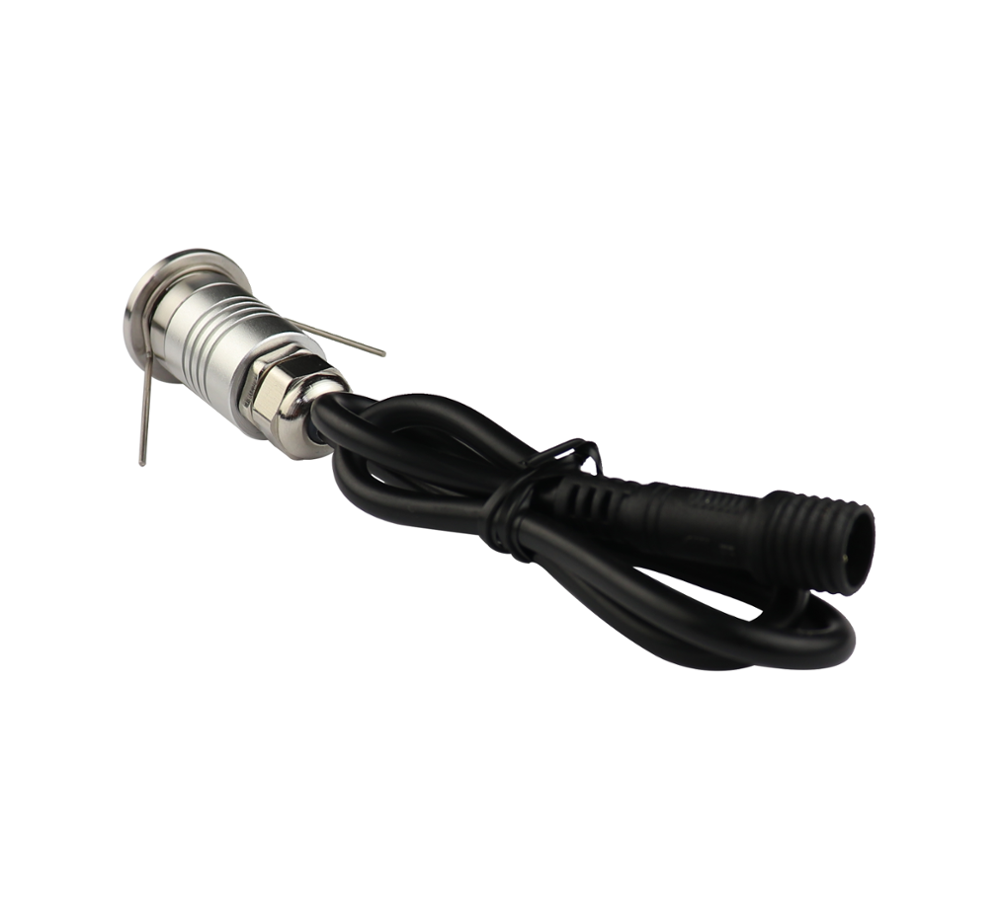

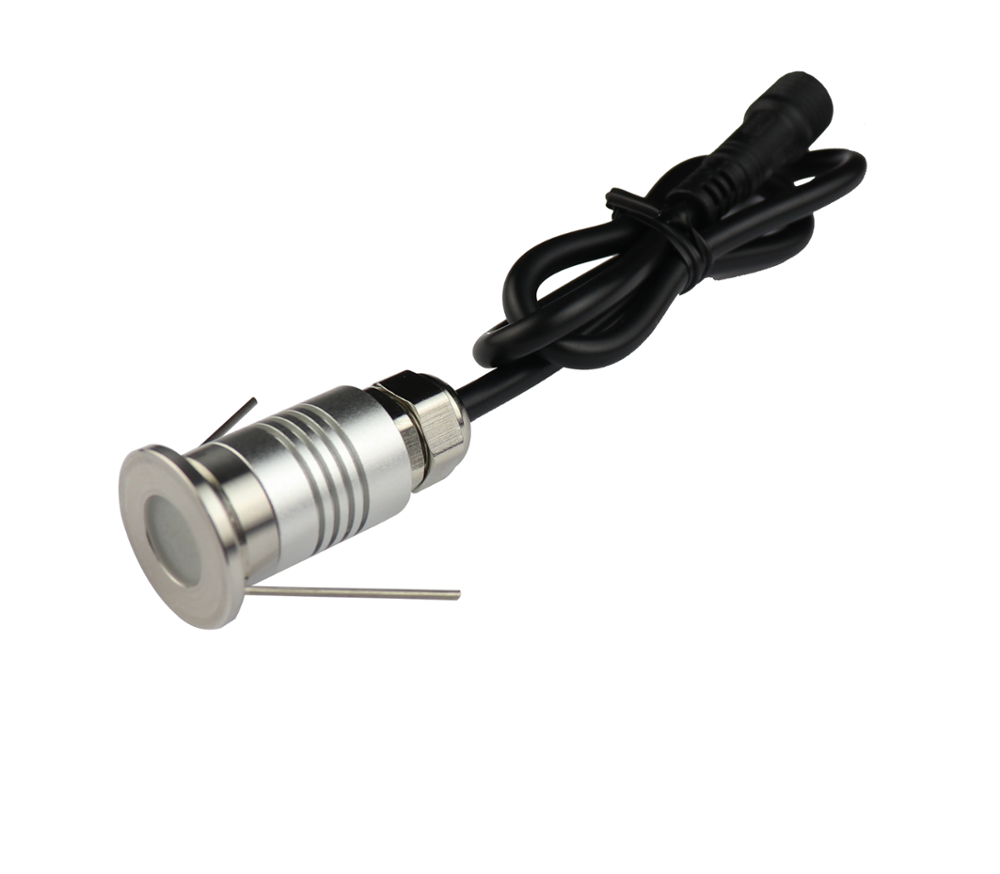

Dia20mm 120degree Mini ground spotlight, Epistar SMD LED 87lm, Input voltage DC12V, Recessed install, is good for Garden lighting, ground lighting, Pathway lighting, wall corner lighting, ect outdoor decoration lighting.
1. Protection class:
IP67 waterproof, external use at ease.

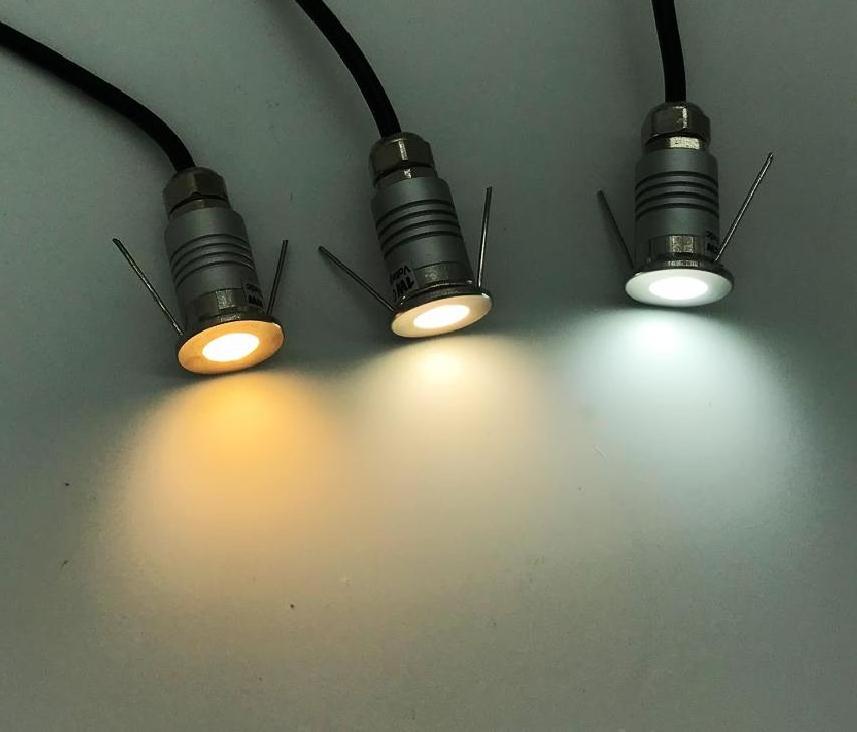

2. Lighting color : LED Step light 1W with various light color for optional, not only warm white, natural white, cold white, also have red, green, blue and other light.
3. Quality material: Surface ring is Stainless steel 304, Light body with pure aluminum 6063, with corrosion-resistant, high
temperature, never change color, real durable.
4. Low voltage: DC12V constant voltage, worked on common low voltage DC12V transformer. So when you install, please remember to buy a 12v transformer.
5. Parallel connection: End cable is 36 cm long waterproof cable and public male connector, plug and play. And, can be parallel connection, very easy and convenient to install and use.

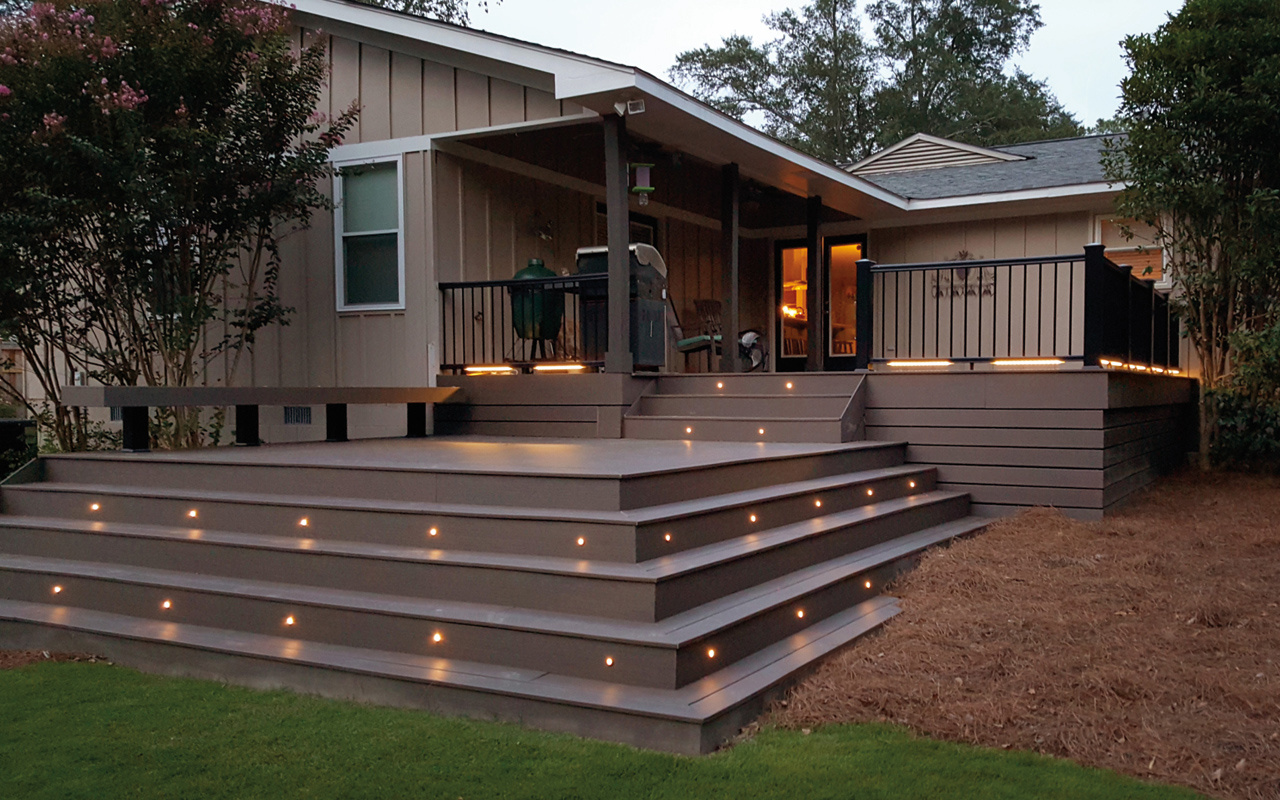

6. Wide application: used in packing lots, roads, squares, sidewalks, gardens, bridges and other outdoor places
2. Lighting color : LED Step light 1W with various light color for optional, not only warm white, natural white, cold white, also have red, green, blue and other light.
3. Quality material: Surface ring is Stainless steel 304, Light body with pure aluminum 6063, with corrosion-resistant, high
temperature, never change color, real durable.
4. Low voltage: DC12V constant voltage, worked on common low voltage DC12V transformer. So when you install, please remember to buy a 12v transformer.
5. Parallel connection: End cable is 36 cm long waterproof cable and public male connector, plug and play. And, can be parallel connection, very easy and convenient to install and use.
6. Wide application: used in packing lots, roads, squares, sidewalks, gardens, bridges and other outdoor places
Product Paramenters
|
Model No.
|
TMDM-1W-15
|
LED Type
|
EPISTAR SMD LED
|
|
Power
|
1W
|
CRI
|
>80Ra
|
|
Voltage
|
DC12V
|
CCT
|
3000K/4000K/6000K
|
|
Lumens
|
87lm
|
Customized
|
2700K/Red/Green/Blue
|
|
Size
|
Dia20mm*L38mm, cut out 16mm
|
IP Protection
|
IP67
|
|
Beam angle
|
120 degree
|
Warranty
|
3 Years
|
Installation Instructions
Product packaging
|
Color box
|
units/60g
|
|
|
||
|
EXT CTN
|
288units, 17.5kg
|
|
|
||
|
Package Size(cm)
|
L
|
W
|
H
|
||
|
Color box
|
7
|
3
|
3
|
||
|
EXT CTN
|
42
|
42
|
26
|
||
Certifications
