Quick Details
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
180 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
500w
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
485*422*380mm
-
Power (kW):
-
0.5
-
Weight (KG):
-
13
-
Product name:
-
CNC wood router machine
-
work area:
-
300*180*80mm
-
Spindle:
-
48V 500W
-
Software:
-
Candle
-
Type:
-
CNC router
-
Weight:
-
13kgs
Quick Details
-
Working Table Size(mm):
-
300*180
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1000 - 5000 rpm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
180 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
500w
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
485*422*380mm
-
Power (kW):
-
0.5
-
Weight (KG):
-
13
-
Product name:
-
CNC wood router machine
-
work area:
-
300*180*80mm
-
Spindle:
-
48V 500W
-
Software:
-
Candle
-
Type:
-
CNC router
-
Weight:
-
13kgs
Product Overview

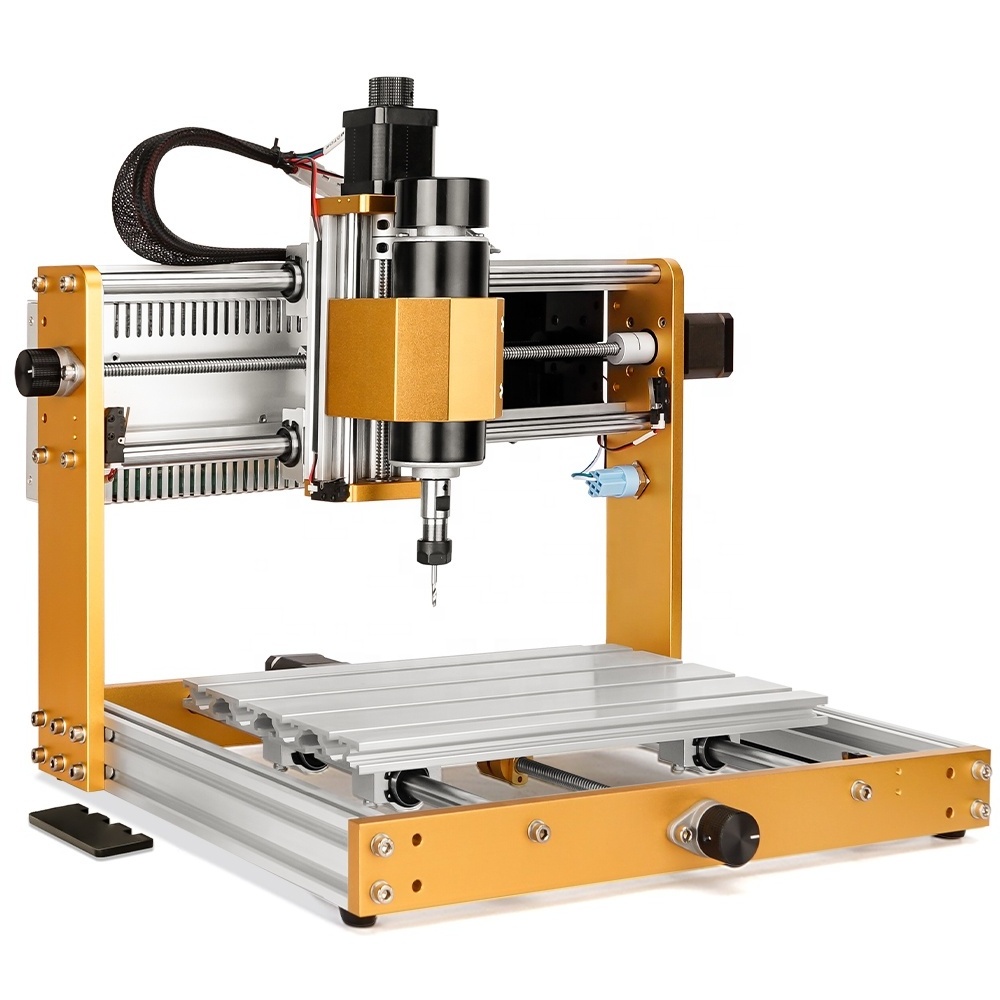

3018PLUS 2.0 +500W standard unit price is USD296.
3018PLUS 2.0 +500W+5.5w laser unit price is USD366.
3018PLUS 2.0 +500W+10w laser unit price is USD416.
This product standard
3018PLUS 2.0 +500W standard unit price is USD296. All the prices are for
3018PLUS 2.0 +500W standard.
if you need to add laser or bulk order, please ask salesperson.
PRODUCT SPECIFICATIONS
|
Model
|
3018PLUS 2.0
|
|
Machine type
|
CNC router
|
|
Work area
|
300*180mm ( 11.8inch*7inch)
|
|
X axis travel (mm)
|
300mm
|
|
Y axis travel (mm)
|
180mm
|
|
Z axis travel (mm)
|
80mm
|
|
Motor type
|
stepper motor
|
|
Machining accuracy
|
±0.1mm
|
|
Repeated accuracy
|
±0.025mm
|
|
Max speed
|
5000rpm/min
|
|
Max cutting speed
|
2000rpm/min
|
|
Spindle
|
48V 500W
|
|
Control board
|
GRBL 1.1f
|
|
Software
|
Candle, UGS, LaserGRBL, Lightburn
|
|
Application materials
|
Wood, stone, copper, acrylic, MDF, soft metal
|
|
Optional
|
5.5W laser, 10W laser (12V 40mm)
|
|
Weight
|
13kgs
|
|
machine size
|
485*422*380mm
|
PRODUCT FEATURES
