Quick Details
-
Voltage:
-
110~480 V or customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
110 KG
-
Keyword:
-
Linear vibrating screen
-
Layer(s):
-
1 to 3 layers
-
Capacity:
-
50 KG~100 T/H
-
Angle of oscillation:
-
45~60 degree
-
Frequency:
-
960 t/min
-
Color:
-
Customers' Requirements
-
Driving force:
-
2 motor
-
Amplitude:
-
6 to 8 mm
-
Material:
-
Carbon Steel/ Stainless Steel 304/316
-
Name:
-
Linear vibrating screen machine
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUBAO
-
Voltage:
-
110~480 V or customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
110 KG
-
Keyword:
-
Linear vibrating screen
-
Layer(s):
-
1 to 3 layers
-
Capacity:
-
50 KG~100 T/H
-
Angle of oscillation:
-
45~60 degree
-
Frequency:
-
960 t/min
-
Color:
-
Customers' Requirements
-
Driving force:
-
2 motor
-
Amplitude:
-
6 to 8 mm
-
Material:
-
Carbon Steel/ Stainless Steel 304/316
-
Name:
-
Linear vibrating screen machine
Product Overview

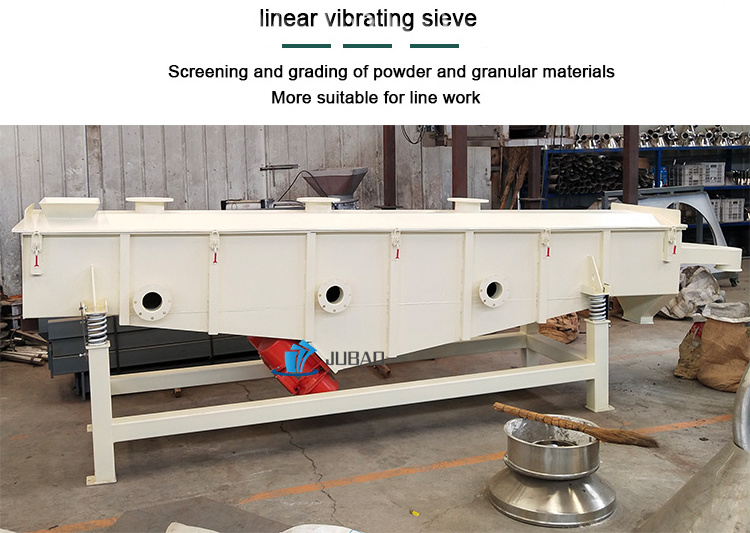

Light plastic pellet color small Linear vibrating screen machine
Our linear vibrating screen is a kind of small and medium size multi-layer screening machinery. Its performance has reached the international advanced level. Any dry material with a diameter of 0.074mm-20 mm could be handled. The maximum granule diameter should be less than 30 mm. As a multi-layer screen, this machine could come with six layers of screen at most.
Features of the
linear vibrating screen machine
1. Linear motion trail and large processing capacity;
2. Simple structure, low power consumption, easy maintenance,
3. All closed structure with the absence of dust disperse, adjustable screen surface inclination.
PRODUCT SPECIFICATIONS
|
Model
|
Layer
|
Screening
|
Mesh size
|
Particle Size
|
Capacity
|
Power
|
Dual
|
|
|
|
Area(mm)
|
(mm)
|
(mm)
|
(t/h)
|
(kw)
|
Amplitude (mm)
|
|
DZSF-612
|
1 to 5
|
600*1200
|
0.02-20
|
≤20
|
≤3
|
0.37×2
|
6 to 10
|
|
DZSF-520
|
1 to 5
|
500*2000
|
0.02-20
|
≤20
|
≤5
|
0.37×2
|
6 to 10
|
|
DZSF-525
|
1 to 5
|
500*2500
|
0.02-20
|
≤20
|
≤8
|
0.37×2
|
6 to 10
|
|
DZSF-1020
|
1 to 5
|
1000*2000
|
0.02-20
|
≤20
|
≤12
|
0.75×2
|
6 to 10
|
|
DZSF-1025
|
1 to 5
|
1000*2500
|
0.02-20
|
≤20
|
≤16
|
0.75×2
|
6 to 10
|
|
DZSF-1030
|
1 to 5
|
1000*3000
|
0.02-20
|
≤20
|
≤20
|
1.1×2
|
6 to 10
|
|
DZSF-1224
|
1 to 5
|
1200*2400
|
0.02-20
|
≤20
|
≤23
|
1.5×2
|
6 to 10
|
|
DZSF-1525
|
1 to 5
|
1500*2500
|
0.02-20
|
≤20
|
≤28
|
1.5×2
|
6 to 10
|
|
DZSF-1530
|
1 to 5
|
1500*3000
|
0.02-20
|
≤20
|
≤32
|
2.2×2
|
6 to 10
|
1. DZSF Model linear vibration screen(vibrating sieve, sifter machine) is suitable for screening all of dry material (from 0.074 mm to 20 mm) or mesh size (from 2-600 mesh)
2.It supports at most 6 layers. But 3 layers at most is highly recommended.
3.The dimension size and voltage are both supported to be customized.
4.The largest screening area can arrive to 2000 mm *3000 mm.
5.The motors is installed below screening box.
6.In general, its inclined angle is 0~10°.
7.It has 4 available material, all stainless steel 304 or 316 or touching part sus 304 or carbon steel Q 235A.
8.With large capacity, small volume, high screening efficiency, high frequency, easily changed screen and good safe performance.
9.It is widely used for screening, grading and filtering, separating and classifying and sieving of powders, pellets, granule.

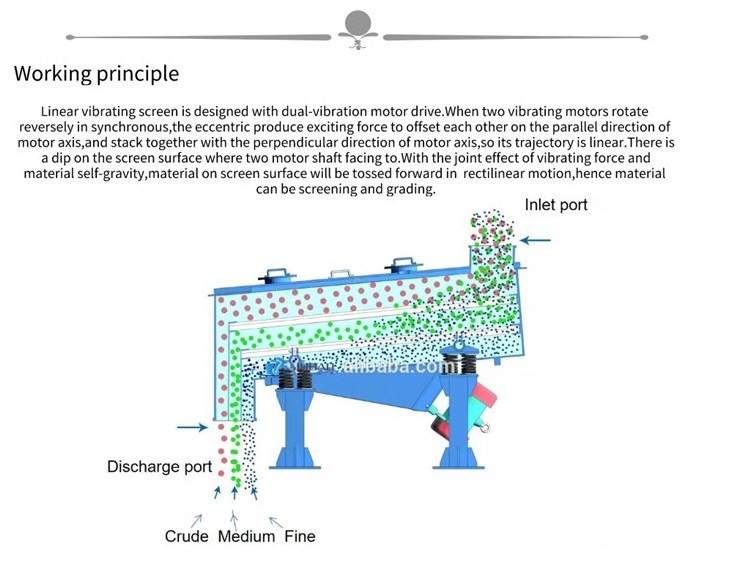

10.It is composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cove
11.Additional parts can be installed for better usage such as mobile running wheels, inspection hole, noise-proof basement, special feeding hole and capacity-controlling device.
