Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
| Description: | |

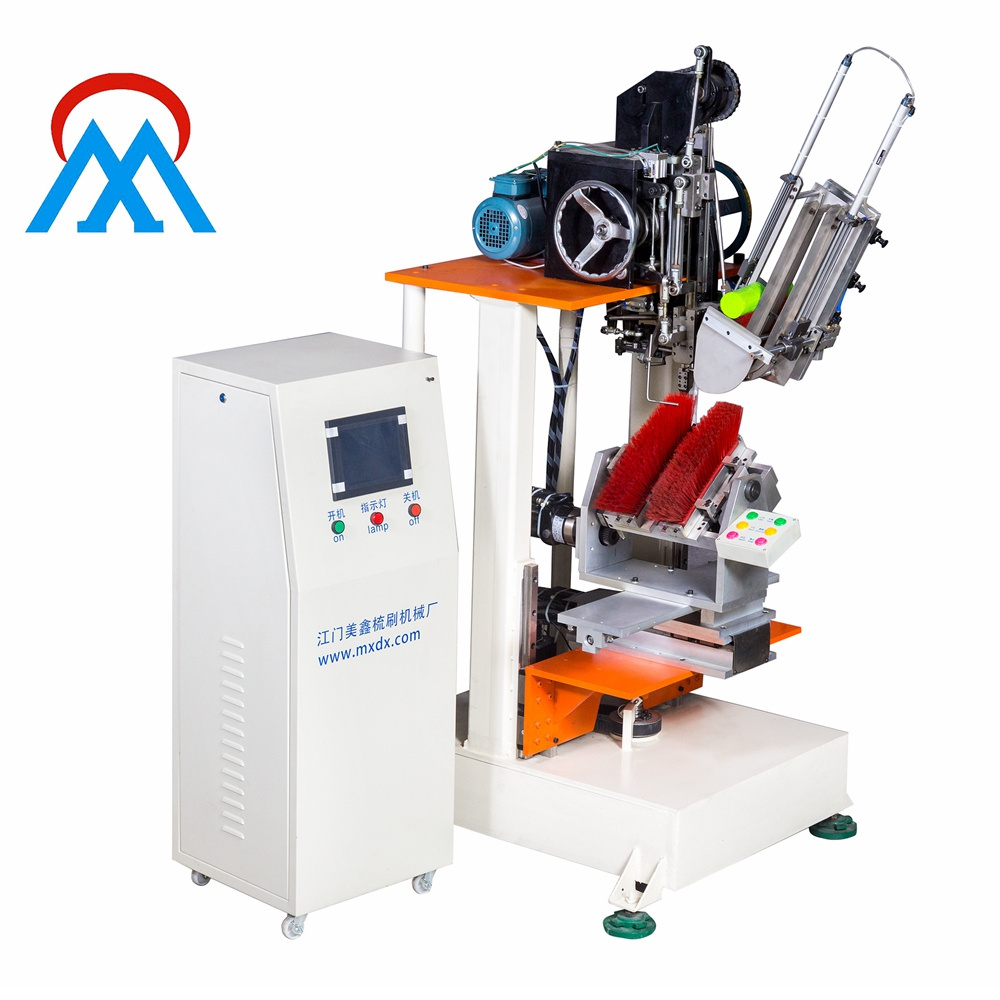

| Model | MX-4AT001 |
| NO. of axis | 4 axis |
| Qty of heads | 1 tufting |
| Application | Flat, curved ,radial and toilet brush. |
| brush types | Brush base with holes |
| Brush base materials | Plastic, wood |
| Filament materials | PP,PET, Nylon,animal hair plant fiber etc. |
| The mold fixture size | 300*50mm |
| Diameter of hole | 4~6mm |
| The length of filament(outside the hole) | 50~110mm/ 150~200mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v , 50/60HZ (customer choose) |
| Main motor power | 1kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1300*1200*1700mm |
| Weight | 900kg |
| Electrical parts: | |
| Control System(PLC) | MEIXIN Chinese and English version |
| Touch screen | MEIXIN Chinese and English version |
| Main motor | SNMA |
| Servo motor | Maxsine |
| Relay | IDEC (Janpan) |
| Variable-Frequency | DELTA (Taiwan) |
| Safety Protection: | Schneider (France brand) |
